Connect Your Interwrite DualBoard:
Cable Installation
The Interwrite DualBoard is connected to the computer either via a cable,
or wirelessly. If you are not using the RF wireless communication system
described next, you can connect your Interwrite DualBoard to the computer
using either the supplied USB cable, or serial cable. Do not use both cables.
Choose one or the other to connect the PC and the Interwrite DualBoard.
The Mac can be connected to the Interwrite DualBoard only with the USB
cable.
The connectors and switches on the Interwrite DualBoard Controller are
shown in the graphic below. Note that the Controller on your Interwrite Du-
alBoard has two power connectors, one on the top of the Controller and one
on the side. Plug the Power Supply into the Power Connector on the side of
the Controller. The Power Supply is not necessary if you are using a USB con-
nection. However, if you are using a serial connection, attaching an RFCOM
module for wireless communication, or attaching the optional Pen Charging
Station, you must connect the Power Supply. The Pen Charging Station, if you
have one, is plugged into the Power Connector on the top of the Controller.
Use either a Serial or a USB connection, never both.

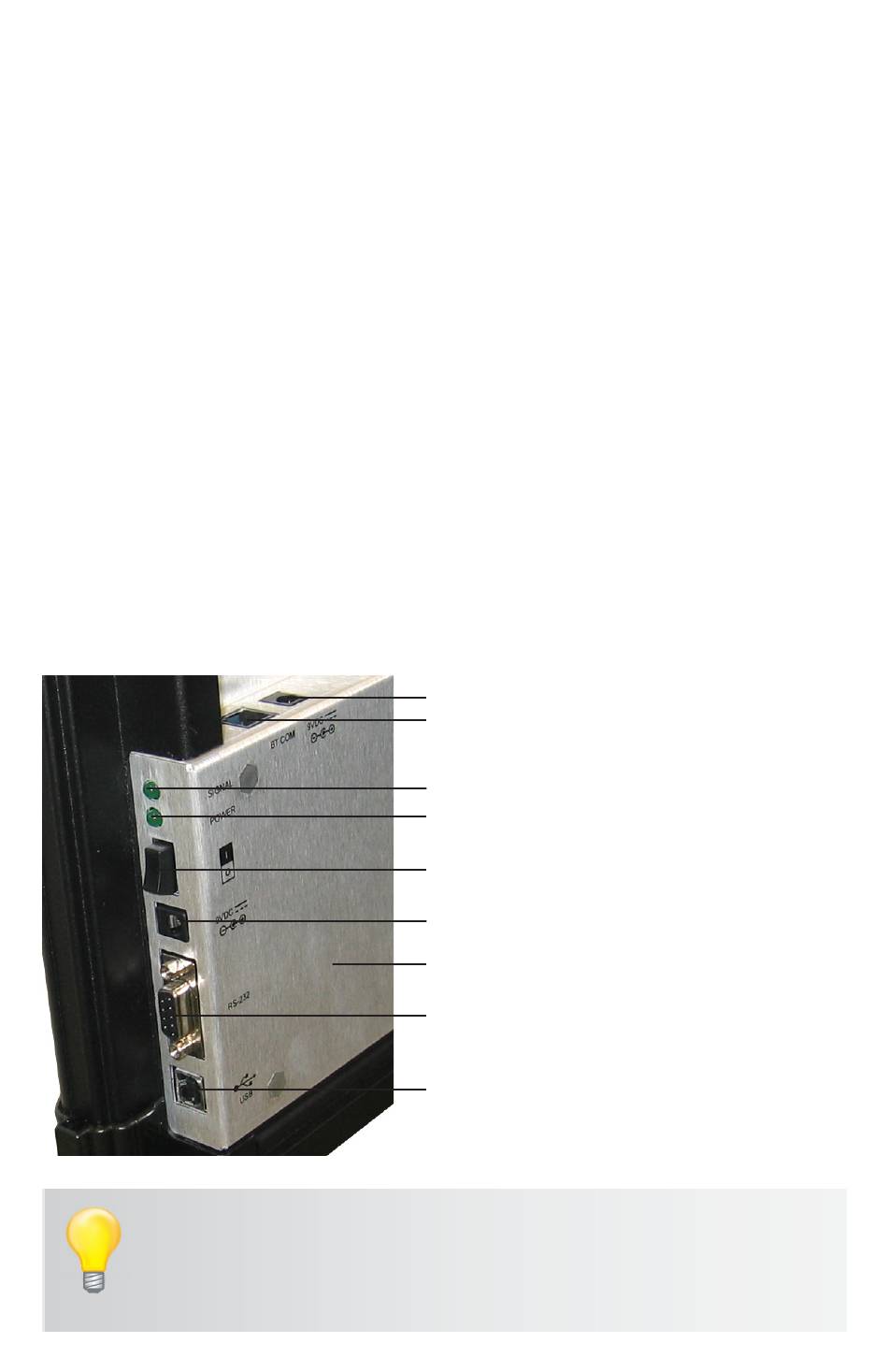

There is only one Connector for USB. It is on the side of the Controller,
as shown in the photo. The Connector located on the top of the Con-
troller with the Power Connector is the RJ12 Connector for the RFCOM
module.
TM
2 Power Connector
nd
RFCOM Port
(or legacy RJ12 BTCOM2 Port)
Pen Prox LED
Power LED
Power Switch
Power Connector
Controller
Serial Connector
USB Connector
