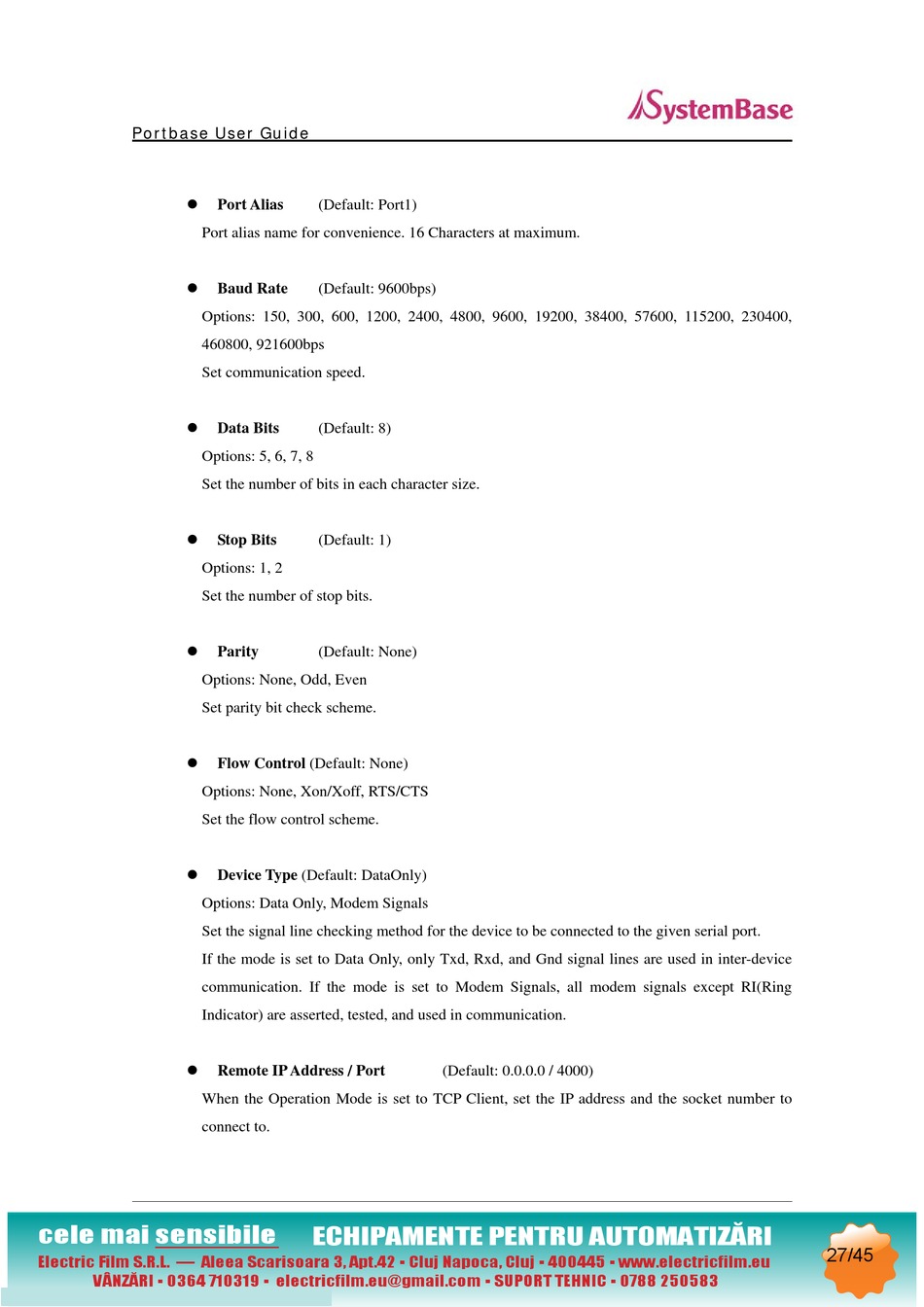

SystemBase Portbase PB-3010 User Manual page 27

Portbase User Guide
Port alias name for convenience. 16 Characters at maximum.
Options: 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400,
460800, 921600bps
Set communication speed.
Options: 5, 6, 7, 8
Set the number of bits in each character size.
Options: 1, 2
Set the number of stop bits.
Options: None, Odd, Even
Set parity bit check scheme.
Options: None, Xon/Xoff, RTS/CTS
Set the flow control scheme.
Options: Data Only, Modem Signals
Set the signal line checking method for the device to be connected to the given serial port.
If the mode is set to Data Only, only Txd, Rxd, and Gnd signal lines are used in inter-device
communication. If the mode is set to Modem Signals, all modem signals except RI(Ring
Indicator) are asserted, tested, and used in communication.
When the Operation Mode is set to TCP Client, set the IP address and the socket number to
connect to.
cele mai sensibile
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583
Port Alias (Default: Port1)
Baud Rate (Default: 9600bps)
Data Bits (Default: 8)
Stop Bits (Default: 1)
Parity (Default: None)
Flow Control (Default: None)
Device Type (Default: DataOnly)
Remote IP Address / Port
ECHIPAMENTE PENTRU AUTOMATIZĂRI
(Default: 0.0.0.0 / 4000)
