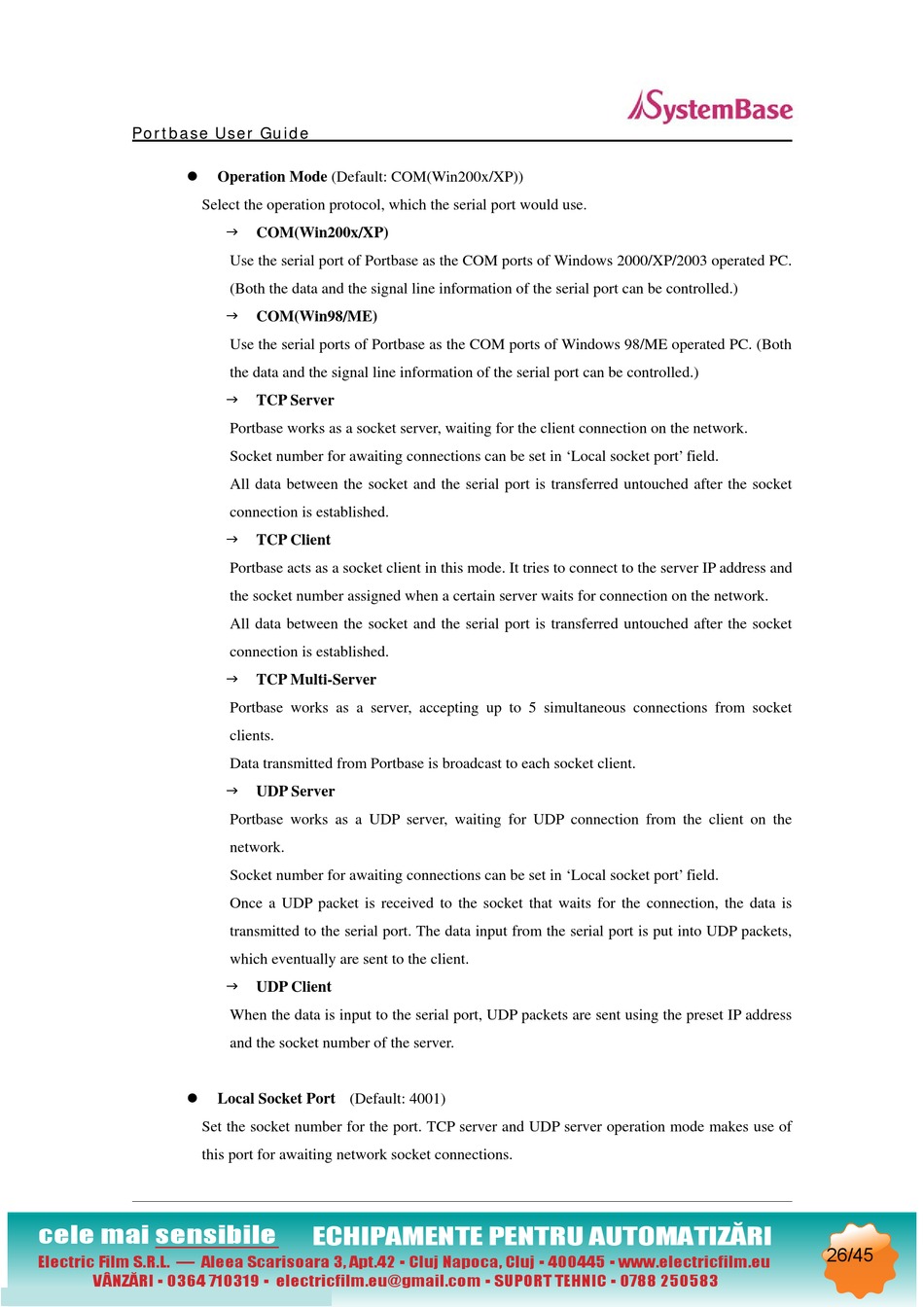

SystemBase Portbase PB-3010 User Manual page 26

Portbase User Guide
Select the operation protocol, which the serial port would use.
Set the socket number for the port. TCP server and UDP server operation mode makes use of
this port for awaiting network socket connections.
cele mai sensibile
Electric Film S.R.L. — Aleea Scarisoara 3, Apt.42 ▪ Cluj Napoca, Cluj ▪ 400445 ▪ www.electricfilm.eu
VÂNZĂRI ▪ 0364 710319 ▪ electricfilm.eu@gmail.com ▪ SUPORT TEHNIC ▪ 0788 250583
Operation Mode (Default: COM(Win200x/XP))
COM(Win200x/XP)
Use the serial port of Portbase as the COM ports of Windows 2000/XP/2003 operated PC.
(Both the data and the signal line information of the serial port can be controlled.)
COM(Win98/ME)
Use the serial ports of Portbase as the COM ports of Windows 98/ME operated PC. (Both
the data and the signal line information of the serial port can be controlled.)
TCP Server
Portbase works as a socket server, waiting for the client connection on the network.
Socket number for awaiting connections can be set in 'Local socket port' field.
All data between the socket and the serial port is transferred untouched after the socket
connection is established.
TCP Client
Portbase acts as a socket client in this mode. It tries to connect to the server IP address and
the socket number assigned when a certain server waits for connection on the network.
All data between the socket and the serial port is transferred untouched after the socket
connection is established.
TCP Multi-Server
Portbase works as a server, accepting up to 5 simultaneous connections from socket
clients.
Data transmitted from Portbase is broadcast to each socket client.
UDP Server
Portbase works as a UDP server, waiting for UDP connection from the client on the
network.
Socket number for awaiting connections can be set in 'Local socket port' field.
Once a UDP packet is received to the socket that waits for the connection, the data is
transmitted to the serial port. The data input from the serial port is put into UDP packets,
which eventually are sent to the client.
UDP Client
When the data is input to the serial port, UDP packets are sent using the preset IP address
and the socket number of the server.
Local Socket Port (Default: 4001)
