SystemBase SerialGate SG-3011DCL/232 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

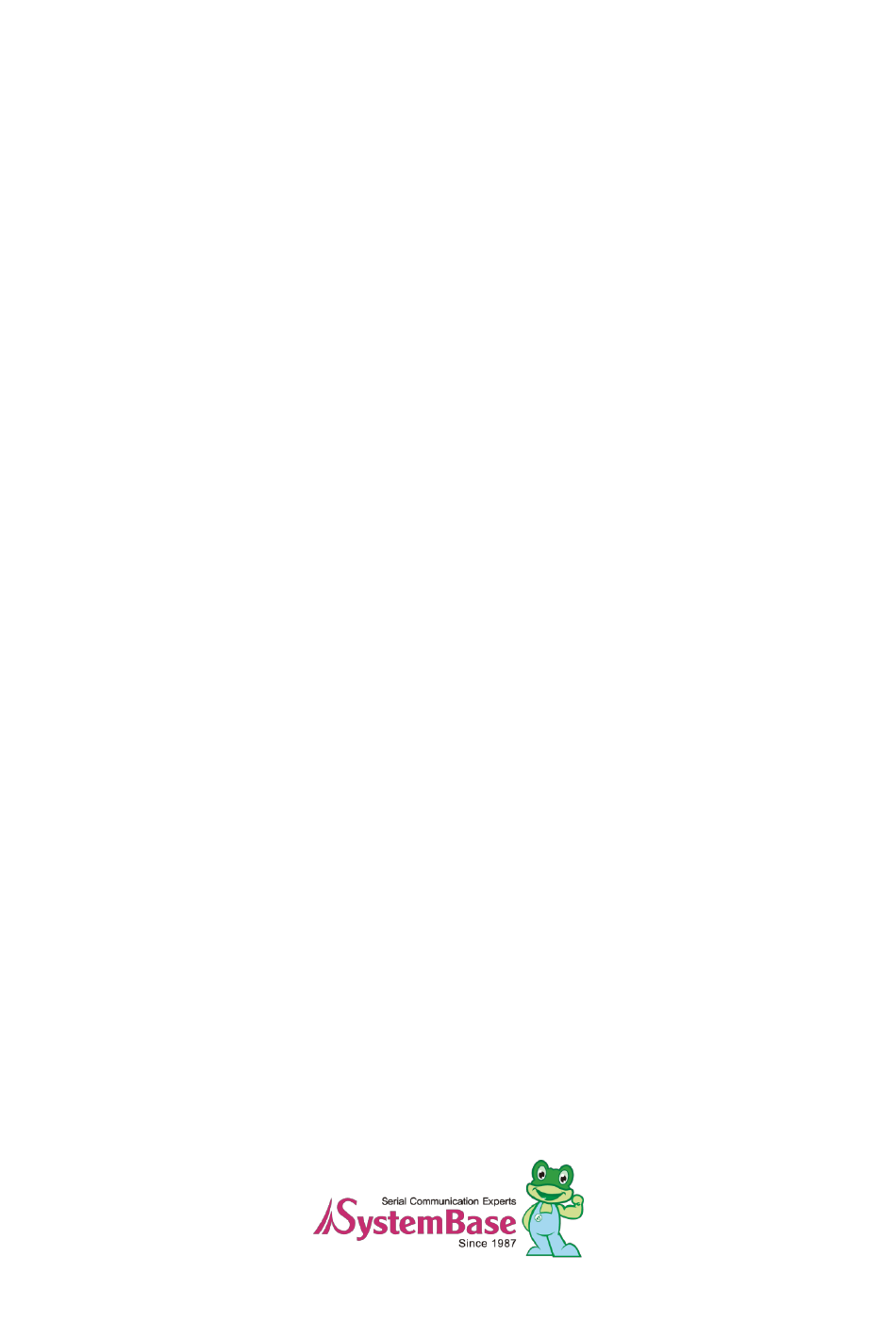

SerialGate
SG-3011DCL/232
User Guide
Version: 1.1
2013.12.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SerialGate SG-3011DCL/232 and is the answer not in the manual?

Questions and answers

Related Manuals for SystemBase SerialGate SG-3011DCL/232

Summary of Contents for SystemBase SerialGate SG-3011DCL/232

  • Page 1 SerialGate SG-3011DCL/232 User Guide Version: 1.1 2013.12.23...
  • Page 2 Description Version Apr. 30. 2013 Initial release Dec. 23 2013 Revision Copyright 2013 SystemBase Co., Ltd. All rights reserved. Website http://www.sysbas.com/ +82-2-855-0501 +82-2-855-0580 16F Daerung Post Tower-1, 288, Digital-ro, Guro-gu, Seoul, Republic of Korea If you have any inquiries, please visit us at...

  • Page 3: Table Of Contents

    SerialGate User Guide Index Introduction About this document  Who should read this document?  User Guide Contents  SG-3011DCL/232 related documents  Technical Support  Getting Started Overview  Features  Application  Hardware Content SG-3011DCL/232 exterior  SG-3011DCL/232 LED ...
  • Page 4 SerialGate User Guide Network Setting  Factory Default  Reboot  Application Example Com Port Redirector  TCP_Server (TCP/IP connection from PC to SerialGate)  TCP_Client (TCP/IP connection from SerialGate to PC)  Troubleshooting  Product Specification ...

  • Page 5: Introduction

    SerialGate User Guide 1. Introduction This chapter is an introduction to SG-3011DCL/232, a device server, by SystemBase. About this document This manual is shows how to user SG-3011DCL/232 to connect, communicate, configure and perform other tasks. Who should read this document? This guide is designed for SG-3011DCL/232 users and administrators.

  • Page 6: User Guide Contents

    SerialGate User Guide User Guide Contents Introduction (Chapter 1) is a preface with general information and introductory notices. Getting Started (Chapter 2) gives a brief introduction of SerialGate series, including features and applications. Hardware Descriptions (Chapter 3) explains the layout and pin specifications with block diagram and drawings.

  • Page 7: Sg-3011Dcl/232 Related Documents

    Description Integration, configuration, and management tasks are User Guide explained for the administrator COM Port Redirector Guide COM Port Redirector by SystemBase User User Manual Description of TestView for testing: TestView User Manual COM port, TCP, UDP If you need brief information about SG-3011DCL/232 please visit our company website at http://www.solvline.com/.

  • Page 8: Technical Support

    SerialGate User Guide Technical Support There are three ways you can get a technical support from SystemBase. First, visit our website http://www.sysbas.com/ http://www.solvline.com/ and go to ‘Technical Support’ menu. There you can read FAQ and ask your own question as well.

  • Page 9: Getting Started

    SerialGate User Guide 2. Getting Started This chapter includes SerialGate overview, main and distinctive features, package contents for each product, and application fields. Overview SG-3011DCL/232 provides network connectivity to various serial devices (security devices, communication peripherals, modems, data printing devices, industrial metering devices, etc.). SerialGate supports RS-232 serial communication standards under various communication speed, meanwhile auto-sensing 100baseTX Fast Ethernet and 10baseT Ethernet connection.
  • Page 10 SerialGate User Guide Package Contents SG-3011DCL/232 package is as follows. Please check all the contents in the box. SG-3011DCL/232, 1 unit A Class Device This device is registered only for office use, and both the seller and the user must be aware of this.

  • Page 11: Application

    SerialGate User Guide Application SG-3011DCL/232 can be utilized for various fields. Network Serial Communication When the PC and SG-3011DCL/232 are connected to the network, and the user gets an access to a device connected to SG-3011DCL/232 from the PC. HOST Remote Host PC INTERNET...
  • Page 12 SerialGate User Guide Tunneling Serial Communication SG-3011DCL/232 enables a connection not restricted to distance between PC and serial device. To enable this feature, a user should change its setting to TCP Server – TCP Client mode or UDP Server – UDP Client mode referring to Chapter 5 of this manual.
  • Page 13 SerialGate User Guide COM Port Redirection With COM Port Redirection, a user can use serial port connected to SerialGate on the network as if it is a serial port on PC. HOST Remote COM(3) COM(3) Host PC INTERNET Serial Gate Serial Device Serial Device Factory / Industrial Automation...

  • Page 14: Hardware Content

    SerialGate User Guide 3. Hardware Content This chapter provides hardware information of SerialGate including block diagram, layout, pin specification, dimensions and other hardware-related issues. SG-3011DCL/232 exterior...

  • Page 15: Sg-3011Dcl/232 Led

    SerialGate User Guide Serial Port: RS232 (DB-9 MALE)  Power Connector: 12 V DC Adapter (Inner: +, Outer: -)  Reset Button: When pressed and released, SG-3011DCL/232 will reboot.  LED: Operation status of SG-3011DCL/232. Next section describes the meaning of each ...
  • Page 16 SerialGate User Guide Serial Port Pin Description RS-232 Pin No. Signal Description Data Carrier Detection (Input) Receive Data (Input) Transmit Data (Output) Data Terminal Ready (Output) Ground Data Set Ready (input) Request to Send (Output) Clear to Send (Input) Ring Indicator (Input)

  • Page 17: Make Connection

    SerialGate User Guide 4. Make Connection This chapter explains how to install SG-3011DCL/232. It deals with LAN and serial connection guides for SG-3011DCL/232 to operate together with the target serial device. Before connection In order to connect SG-3011DCL/232 to the network, you need to use RJ45 Ethernet port. It supports both 10Mbps and 100Mbps Ethernet connection (auto-sensing).
  • Page 18 SerialGate User Guide If the LAN port in SG-3011DCL/232 uses assigned IP address from DHCP server or is set to a fixed IP address, SG-3011DCL/232 supports the following options in case that a user does not know IP address. Default IP Address: 192.168.0.223 The default IP address set for SG-3011DCL/232 is 192.168.0.223.

  • Page 19: Network Setting

    SerialGate User Guide 5. Configure through the Web This chapter explains how to connect SG3011DCL/232 through the Web. Connection Open a web browser and type the IP address of the SG-3011PCL. A login window, shown below, will appear. The initial ID and password are “serialgate” and “99999999” without quotes. The ID and password can be modified once logged in.
  • Page 20 SerialGate User Guide In Network Setting, you can set your device for preferred network environment or manage it. After changing the settings, click the [Submit] button to save and use the Reboot from the menu to restart the device. If you exit without saving the modified configuration, it will be lost. If modified value is not saved by pressing the [Submit] button, the [Cancel] button can be used to revert the value back to the previous ones.
  • Page 21 SerialGate User Guide Serial Setting In Serial Setting, you can set operation environment of your device. After changing the settings, click the [Submit] button to save and use the Reboot from the menu to restart the device. If you exit without saving the modified configuration, it will be lost.
  • Page 22 SerialGate User Guide The summary for Setup menu is shown below. Menu Default Description Set protocol to be used in the serial ports Select the operation protocol that will be applied in the serial port. COM Redirector Use the serial port of SerialGate as a virtual COM port in Windows /2000/XP/2003/Vista/7/8.
  • Page 23 SerialGate User Guide Menu Default Description Set interface for serial port. Interface RS232 For RS-232 model, it is fixed to RS-232. Set the socket number for the port. TCP server and UDP server Local Port 4001 operation mode makes use of this port for awaiting network socket connections.

  • Page 24: Factory Default

    SerialGate User Guide Factory Default When factory default is executed, every values set for SerialGate will be erased and go back to the out- of-the-box settings. Once it is executed, the values cannot be recovered If this button is pressed for longer then 3 second, SerialGate will restore factory default settings. Pressed for Action Result...

  • Page 25: Application Example

    SerialGate User Guide 6. Application Example SerialGate can be used in many practical applications in various fields. Here we present some of them. Com Port Redirector With COM Port Redirection, a user can use serial port connected to SerialGate on the network as if it is a serial port on PC.
  • Page 26 SerialGate User Guide In order to correspond to the Redirector setting of PC, change the setting in the first serial port of SerialGate as follows.

  • Page 27: Tcp_Server (Tcp/Ip Connection From Pc To Serialgate)

    SerialGate User Guide TCP_Server (TCP/IP connection from PC to SerialGate) In socket program from the PC, connect the first serial port of SerialGate. Since socket number for the first port of SerialGate is default 4001, try to connect to IP address and socket number 4001 in Serial Gate when connecting from the PC to the SerialGate.

  • Page 28: Tcp_Client (Tcp/Ip Connection From Serialgate To Pc)

    SerialGate User Guide TCP_Client (TCP/IP connection from SerialGate to PC) SerialGate connects to TCP/IP through the socket program in PC. Since it is a connection from SerialGate to a PC, change the Operation Mode to TCP_Client and register PC’s IP address and socket number to be connected. Check the communication speed of a serial device to be connected to serial port, and set it to Com Specification.

  • Page 29: Troubleshooting

    SerialGate User Guide Troubleshooting This section describes procedures for troubleshooting problems you may encounter with SerialGate. Troubleshooting Installation Problems If you cannot access the connected serial device via SG-3011DCL/232, first check the network connection and cabling. Check the physical cabling to ensure all cables are plugged in (Ethernet and DB-9 serial ...
  • Page 30 SerialGate User Guide connectivity problems). If the IP address is not correct, then check whether the loading procedure was properly executed. Also verify that the host computer and SerialGate are using the same subnet masks (for  example, if SG-3011DCL/232 has a subnet mask of 255.255.255.0, the host must have the same subnet mask) or that the router is properly configured to pass data between the two devices.

  • Page 31: Product Specification

    SerialGate User Guide Product Specification Communication 10/100Mbps RJ-45 Port x 1EA LAN Port Network Static IP, DHCP IP Number of Serial Port 1 Port Speed 150 bps ~ 921 Kbps Hardware Power 5V DC Input Dimension 46(W) x 77.5(L) x 25(H)mm Weight 32.1g Operation...
  • Page 32 SerialGate User Guide Software Protocol TCP, UDP, ICMP, DHCP, HTTP Utility Redirector, TestView Configuration from Web, SGConfig Ordering Information SG-1010/232-RJ 1 x Serial RJ-45 Port (RS232 only) SG-1010/Combo-RJ 1 x Serial RJ-45 Port (RS422/RS485 selectable) SG-1010/ALL 1 x Serial DB-9 & T/B Port (RS232/RS422/RS485 selectable) SG-1010W/ALL 1 x Serial DB-9 &...
