6.2 Interface Specifications

This section explains the specification of the interfaces supported for this printer.

6.2.1 USB Interface Specifications

TABLE 6-4 USB INTERFACE SPECIFICATIONS
Item
Interface
Data format
Transmission speed
Applicable connector USB Series B
Allowable cable
length
Pin number
1
2
3
4
TABLE 6-5 USB INTERFACE PIN / SIGNAL / FUNCTION
Specifications
Universal Serial Bus Specifications Revision 2.0
Universal Serial Bus Device Class Definition for Plotting Devices Version 1.1
NRZI
480Mbps (High Speed Device)
3 meters (9.8 foot) absolute maximum.

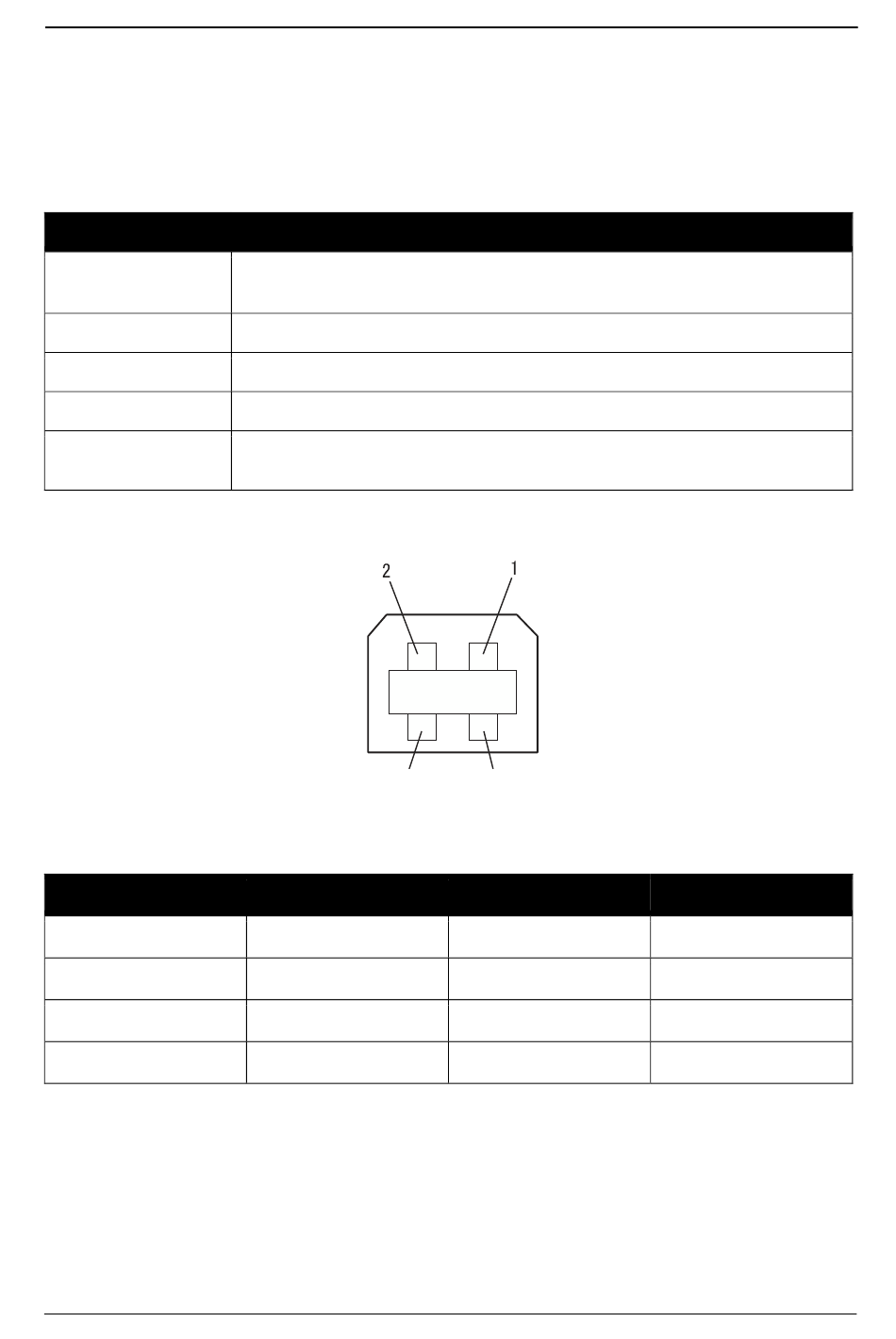

FIGURE 6-1 USB INTERFACE PIN
CONFIG
Signal name
VCC
- Data
+ Data
Ground
Compress iUV600s Series User Guide
Input/output
-
Bidirectional
Bidirectional
-
167
Function
Cable power supply
Data
Data
Cable ground
