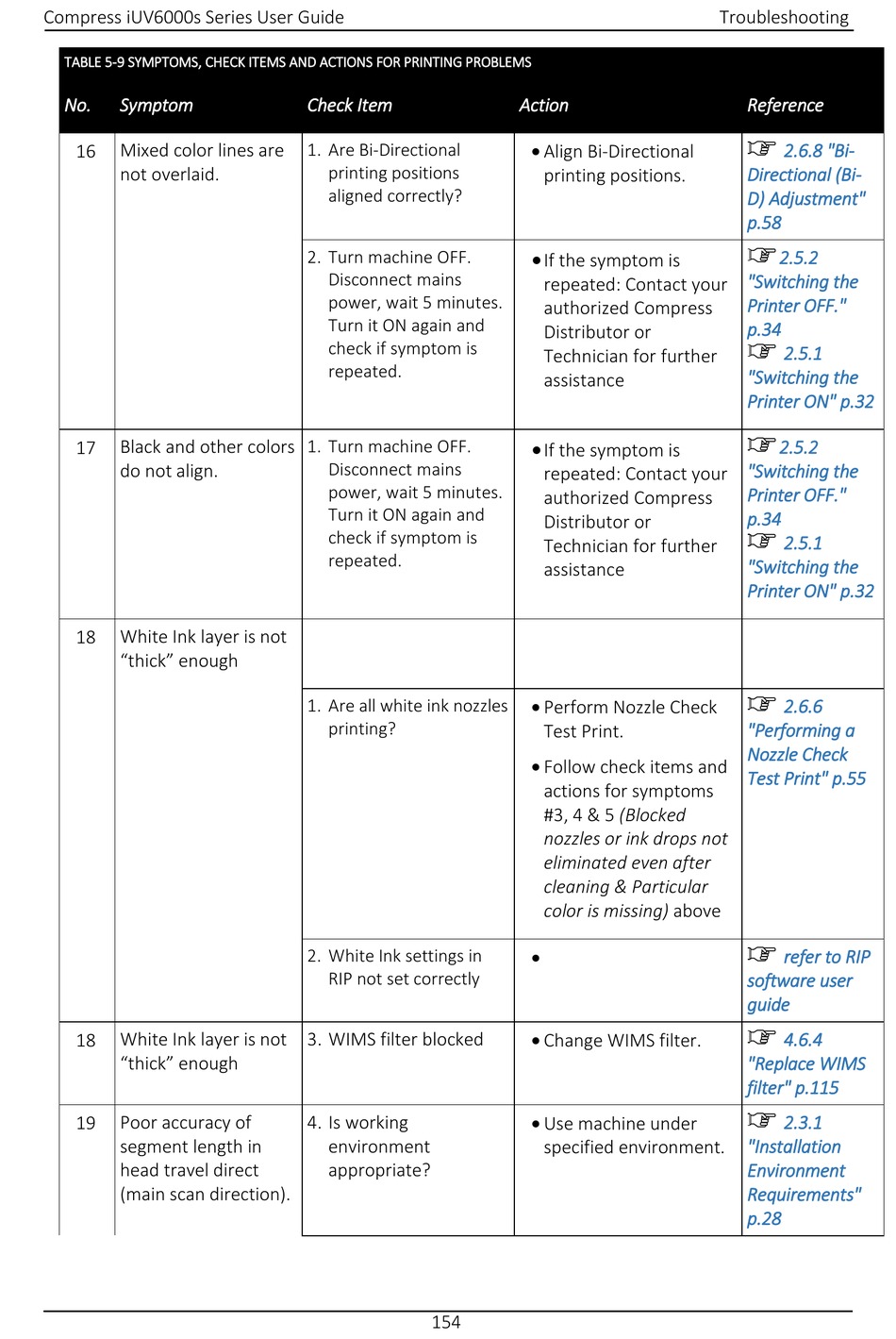

TABLE 5-9 SYMPTOMS, CHECK ITEMS AND ACTIONS FOR PRINTING PROBLEMS
No. Symptom
Mixed color lines are
16
not overlaid.
Black and other colors
17
do not align.
White Ink layer is not
18
"thick" enough
18 White Ink layer is not
"thick" enough
Poor accuracy of
19
segment length in
head travel direct
(main scan direction).
Check Item
1. Are Bi-Directional
printing positions
aligned correctly?
2. Turn machine OFF.
Disconnect mains
power, wait 5 minutes.
Turn it ON again and
check if symptom is
repeated.
1. Turn machine OFF.
Disconnect mains
power, wait 5 minutes.
Turn it ON again and
check if symptom is
repeated.
1. Are all white ink nozzles
printing?
2. White Ink settings in
RIP not set correctly
3. WIMS filter blocked
4. Is working
environment
appropriate?
154
Action
 Align Bi-Directional
printing positions.

If the symptom is
repeated: Contact your
authorized Compress
Distributor or
Technician for further
assistance

If the symptom is
repeated: Contact your
authorized Compress
Distributor or
Technician for further
assistance
 Perform Nozzle Check
Test Print.
 Follow check items and
actions for symptoms
#3, 4 & 5 (Blocked
nozzles or ink drops not
eliminated even after
cleaning & Particular
color is missing) above

 Change WIMS filter.
 Use machine under
specified environment.
Troubleshooting
Reference
2.6.8 "Bi-
Directional (Bi-
D) Adjustment"
p.58
2.5.2
"Switching the
Printer OFF."
p.34
2.5.1
"Switching the
Printer ON" p.32
2.5.2
"Switching the
Printer OFF."
p.34
2.5.1
"Switching the
Printer ON" p.32
2.6.6
"Performing a
Nozzle Check
Test Print" p.55
refer to RIP
software user
guide
4.6.4
"Replace WIMS
filter" p.115
2.3.1
"Installation
Environment
Requirements"
p.28
