Care & Maintenance
4.5.2.4 Navigating to the (Diagnostic) Cleaning options
Follow the operation flow shown below to operate the Adjustment Menu and access the Cleaning
options.
1. Press [Next] key or [Back] key in the operation panel to scroll
through the menu. Then, press [Enter] key to confirm the menu
option displayed.
When the [Enter] key is pressed to confirm / select the
Check:Cleaning menu option, the Print Head will release from the
Capping Station and make small movements & some noise for
15-20 seconds or so before settling back into the Capping
Station. This is normal.
The button presses required to select the first Cleaning from
the start of the Cleaning menu are as follows: [Enter]

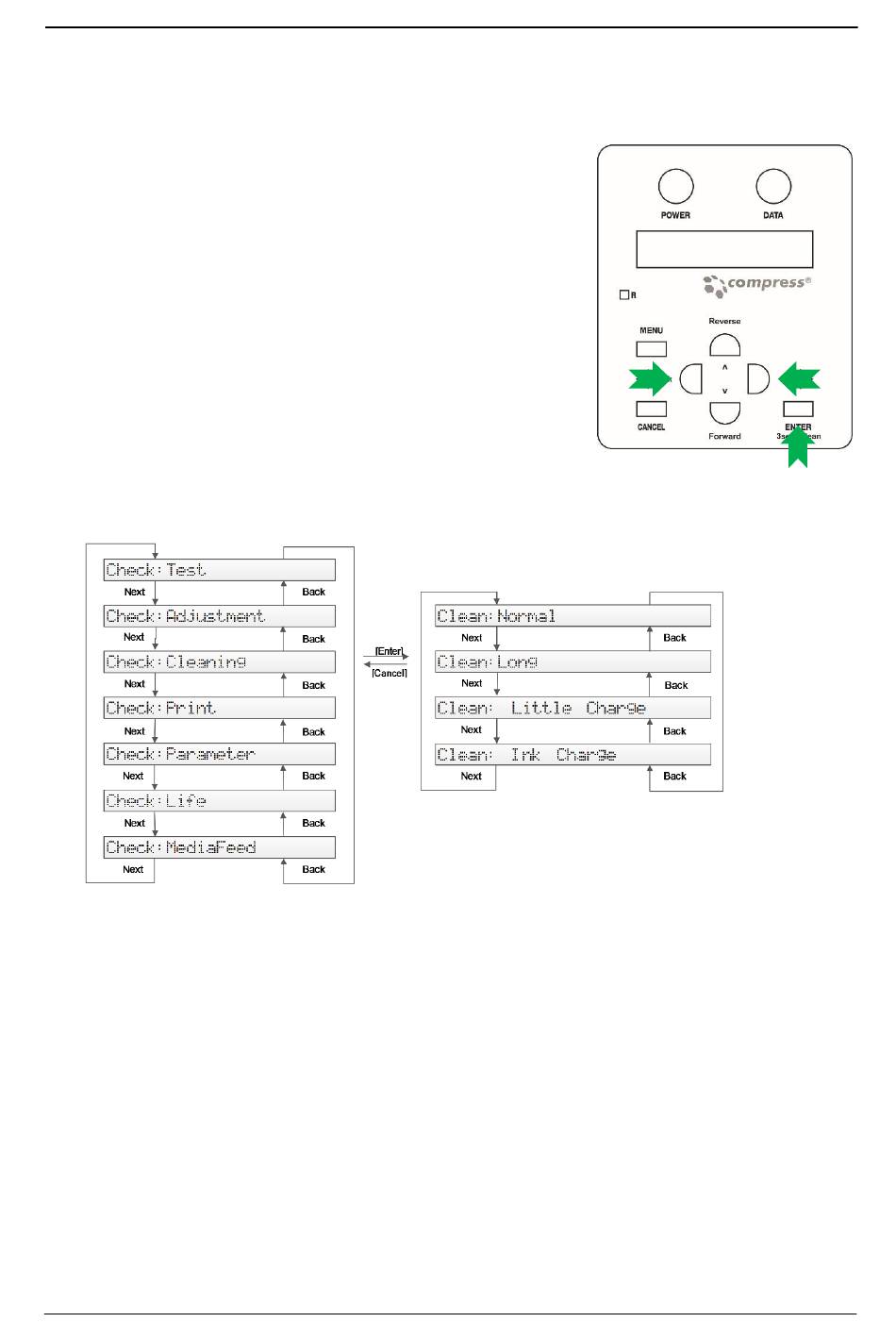

FIGURE 4-2 CLEANING MENU FLOW
2. The screen display will show
(Diagnostic) Cleaning Options. When it is finished, the display will read the Cleaning option that
was just completed.
Cleaning whilst the printer is performing any of the above selected
