Summary of Contents for Renfert Dustex master plus

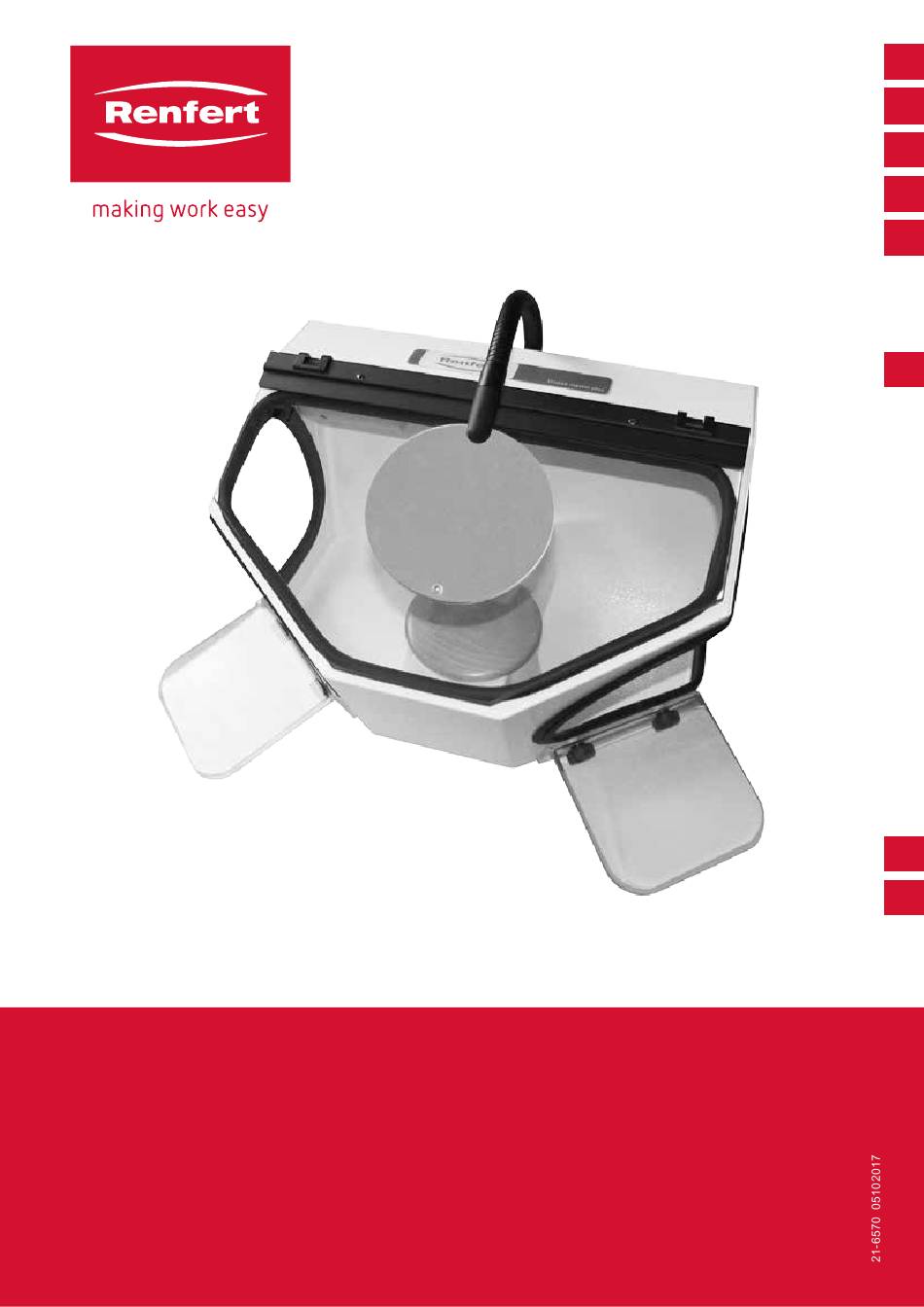

  • Page 1 Dustex master plus Made in Germany...
  • Page 4 Dustex master plus TRANSLATION OF THE ORIGINAL INSTRUCTIONS FOR USE Made in Germany...
  • Page 5: Table Of Contents

    Contents Introduction ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� Application Area ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 2�1 Ambient Conditions (in accordance with DIN EN 61010-1) �������������������������������������������������������������������������������������������������������������������������� Hazard Information �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3�1 Employed Symbols �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3�2 Hazard Information �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3�3 Liability Exclusion ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ Installation / Commissioning ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4�1 Setting Up the Unit and Connecting it to an Extractor ����������������������������������������������������������������������������������������������������������������������������������������...
  • Page 6: Introduction

    Introduction We are pleased with your decision to purchase a Renfert Dustex master plus dust extractor box� The Dustex master plus is an extraction box fitted with an extraction duct and arm supports for a more comfortable working position� Please read the following operating instructions carefully and observe all the information they contain in order to ensure long and trouble-free service.
  • Page 7: 3�2 Hazard Information

    ► The product is altered in any way other than those alterations described in the operating instruc- tions; ► The product is repaired by other than an authorized facility or if any but Renfert OEM parts are employed; ► The product continues to be employed, despite obvious safety faults or damage;...
  • Page 8: Installation / Commissioning

    5� Retighten the screws (Figure 7)� Armrests (Figure 9) Armrests can be installed on the Dustex master plus to help relieve strain during work with the unit� The instruction sheet is attached to the Set of armrests� Magnifier (Figure 10) A magnifier attached to a flexible arm can also be installed on the extraction box (please refer to the ac- cessories list)�...
  • Page 9: Cleaning / Maintenance

    • Pull fluorescent lamp horizontally out of the socket and remove it. • Vacuum socket as thoroughly as possible� • Insert new fluorescent lamp in the retainer and slide it horizontally into the socket (Figure 15). • Install lamp cover in the housing on the left side, then press it to the right until it clicks into position (Figure 16)� Use only original Renfert replacement fluorescent (see chapter 6, Spare Parts). Lamp cover In the course of time, the lamp cover can become matt. This cover can be ordered as a spare part. Changing the lamp cover: • Switch off the unit� • Pull plug out�...
  • Page 10: Disposing Of The Unit

    For more information regarding proper disposal please apply at your local authorities� Warranty Provided the unit is properly used, Renfert warrants all components of the Dustex master plus for a period of 3 years. The original sales receipt from the dealer must be provided when making warranty claims�...
  • Page 11: Standard Delivery

    10 Standard Delivery 1 Extraction box 1 Operating instructions, with attachments 1 Power cord 1 Extraction duct, complete 1 Armrests, complete Delivery Versions No. 2626-0105 Dustex master plus 230 V, 50 / 60 Hz No. 2626-1105 Dustex master plus 100 - 120 V, 50 / 60 Hz 12 Accessories No. 2626-0300 Magnifier with holder No. 2626-0600 Gold filter 13 Troubleshooting Problem Possible cause Corrective action Insufficient extraction • Extraction duct blocked� •...
  • Page 12 Tel.: +49 7731 82 08-0 • Fax: +49 7731 82 08-70 www.renfert.com • info@renfert.com Renfert USA • 3718 Illinois Avenue • St. Charles IL 60174/USA Tel.: +1 6307 62 18 03 • Fax: +1 6307 62 97 87 www.renfert.com • info@renfertusa.com...
