Vincotech H6.5 3-Level IGBT flowPACK Module Evaluation Board
Chapter 3: Test Circuit and Result
3.1 Test Setup and Waveform
The test items and corresponding test pins are shown in
Figure
11.

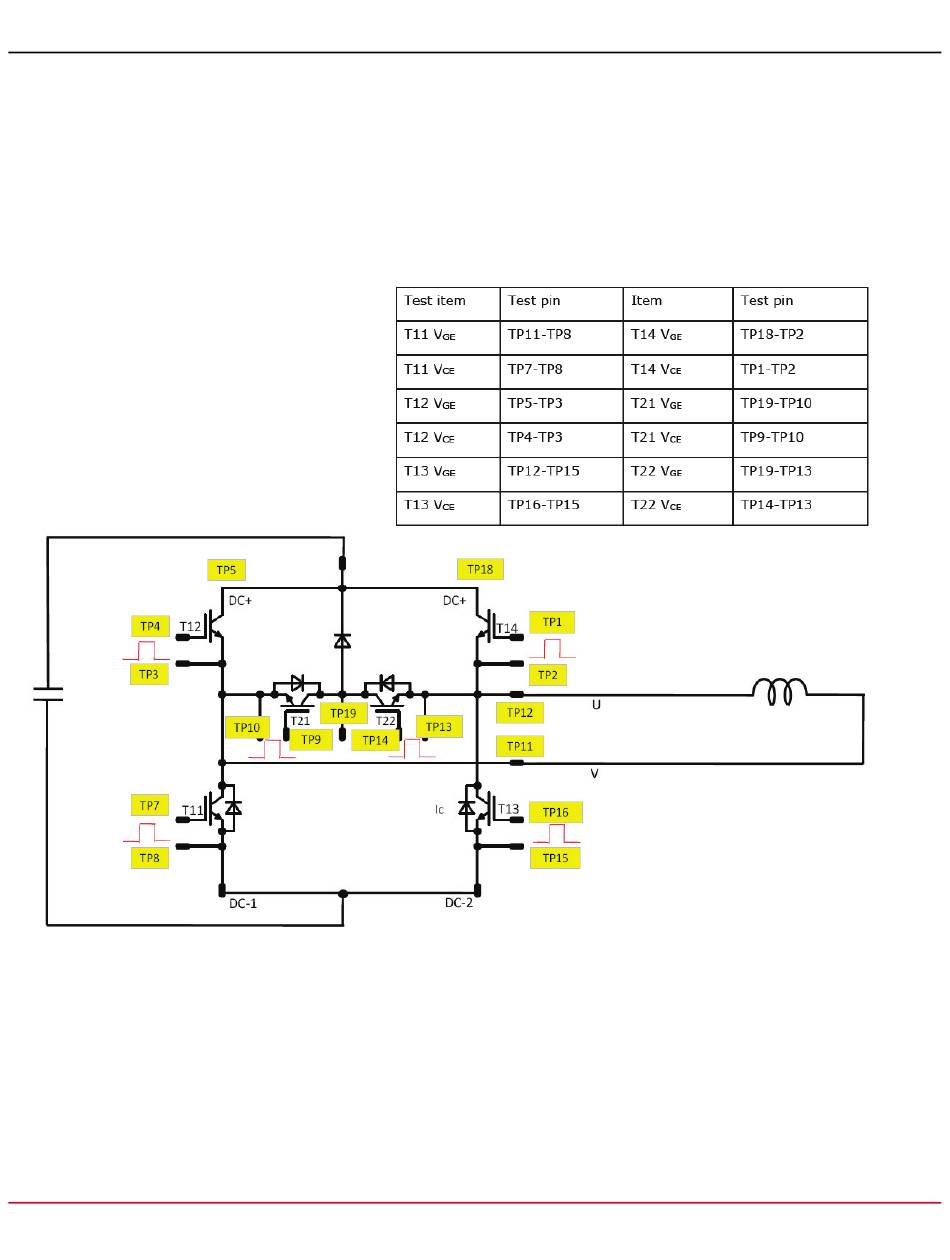

Figure 11: Test Items and Test Pins
Figure 12
shows an example of the waveforms of IGBT, T12, andT21 and output current I
.
OUT
Broadcom Confidential
ACPL-352J-Ref-RM100
12
