CONTENTS INTRODUCTION ....................3 INSTRUMENT OPERATION .................. 4 Performing a Test ....................5 Entry of New Calibration Code ................ 8 Optional Settings and Data Handling .............. 9 Error Messages ....................11 COMPUTER INTERFACE ..................12 TECHNICAL INFORMATION ................14 Operating Principle ..................14 System Performance Characteristics ............ -
Page 3: Introduction

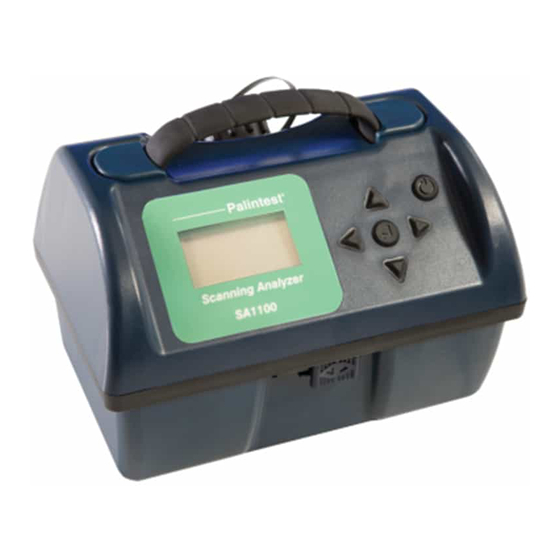

INTRODUCTION The Palintest Scanning Analyzer is a precision instrument used with unique pre-calibrated disposable sensors. It offers a simple method of analyzing for lead or copper. The instrument is lightweight and portable for field or laboratory use. It is extremely simple to use, with a large, clear, backlit results display. -
Page 4: Instrument Operation
Instrument Start Up Press and hold the power button until the Palintest title screen is displayed. SA1100 SCANNING ANALYZER When the instrument passes all internal functional checks on start up, the screen displays the current calibration code and prompts the user to insert a sensor. -
Page 5: Performing A Test
Performing a Test Slide the front catch all the way to the right, and open the instrument case fully. Rinse the sample vessel and then fill to the Fill with sample 5 ml 5 ml line with the sample. Place the sample to 5 ml mark. - Page 6 After completion of the test DO NOT OPEN THE INSTRUMENT. The sensor must be released into the sample vessel while the instrument lid is closed - push up on the lever located within the left-hand side of the instrument - accessible without opening the lid. Once the sensor has been released, open the instrument lid and cap the sample vessel with Using forefinger on left-...
- Page 7 Getting the Best Results 1 Handle the sensors with care. 2 Place the instrument on a flat surface free from vibration. 3 Do not disturb the instrument or sample during the test. 4 The sensor response is most accurate and precise when sample temperature is in the range of 20 –...
-
Page 8: Entry Of New Calibration Code
Steps 1 – 3 Failed should be repeated, if the chip will still not 113-753-22 calibrate, contact Palintest technical enquiries for further information. Remove the calibration chip. The instrument stores separate calibration values for each type of sensor. If a Copper in... -
Page 9: Optional Settings And Data Handling
Selectable Options Choose a Test Lead in Water There are two tests available on the SA1100: Copper in Water Press to show the tests. Scroll to highlight the required test. - Page 10 Selecting ‘On’ will mean the sample number screen is displayed to the user before the test starts, allowing the user the option to manually adjust the sample number. Press to perform the action and return to the options list. Sample Increment Press to select the sample increment option.
-
Page 11: Error Messages
The instrument is fitted with integral electrical connectors for insertion of the sensors. If the contacts accidentally become wet, open the jaws with the blue lever and insert a Palintest Contact Drying Stick (CS 160). Wait a few seconds until it absorbs the water, then remove and insert the opposite end to check the contacts are dry. -
Page 12: Computer Interface
COMPUTER INTERFACE The Scanning Analyzer USB port, once connected to a PC, can be used to access data stored in the instrument log, or to upgrade the instrument software. When the Scanning Analyzer is connected to a PC, it behaves like a removable hard drive or USB memory stick. - Page 13 Software Upgrade When new software is made available by Palintest, the Scanning Analyzer may be upgraded. Files will be available by e-mail or on the Palintest website :- 1 Connect the Scanning Analyzer to a PC using a USB cable.
-
Page 14: Technical Information
TECHNICAL INFORMATION Operating Principle The Palintest Scanning Analyzer is an electro-chemical device that utilises the analytical technique of anodic stripping voltammetry. It can be divided into the plating phase and the scanning phase. The plating phase begins as soon as the electrode is immersed in the sample. -
Page 15: General Information
Storage Temperature Calibration Check Standards For help with the preparation of standard solutions in order to enable full testing of the instrument, please contact Palintest Technical Queries Department. To use the electronic check standards, please follow the instructions included in the kit. -
Page 16: Care And Maintenance
On no account should solvents or abrasive materials be used to clean the instrument. Guarantee The Palintest Scanning Analyzer is guaranteed for a period of two years from the date of purchase, excluding accidental damage or damage caused by unauthorised repair or misuse. Should repair be necessary, contact our Technical Services Department quoting the serial number shown on the instrument label. - Page 17 Reordering Information Part Code Product Description PT 435 Lead Sensors x10 PT 436 Copper Sensors x10 PT 429 Neutralisation Pack CS 160 Contact Drying Sticks CS 640 Instrument Check Chip...
-
Page 18: Contact Information
