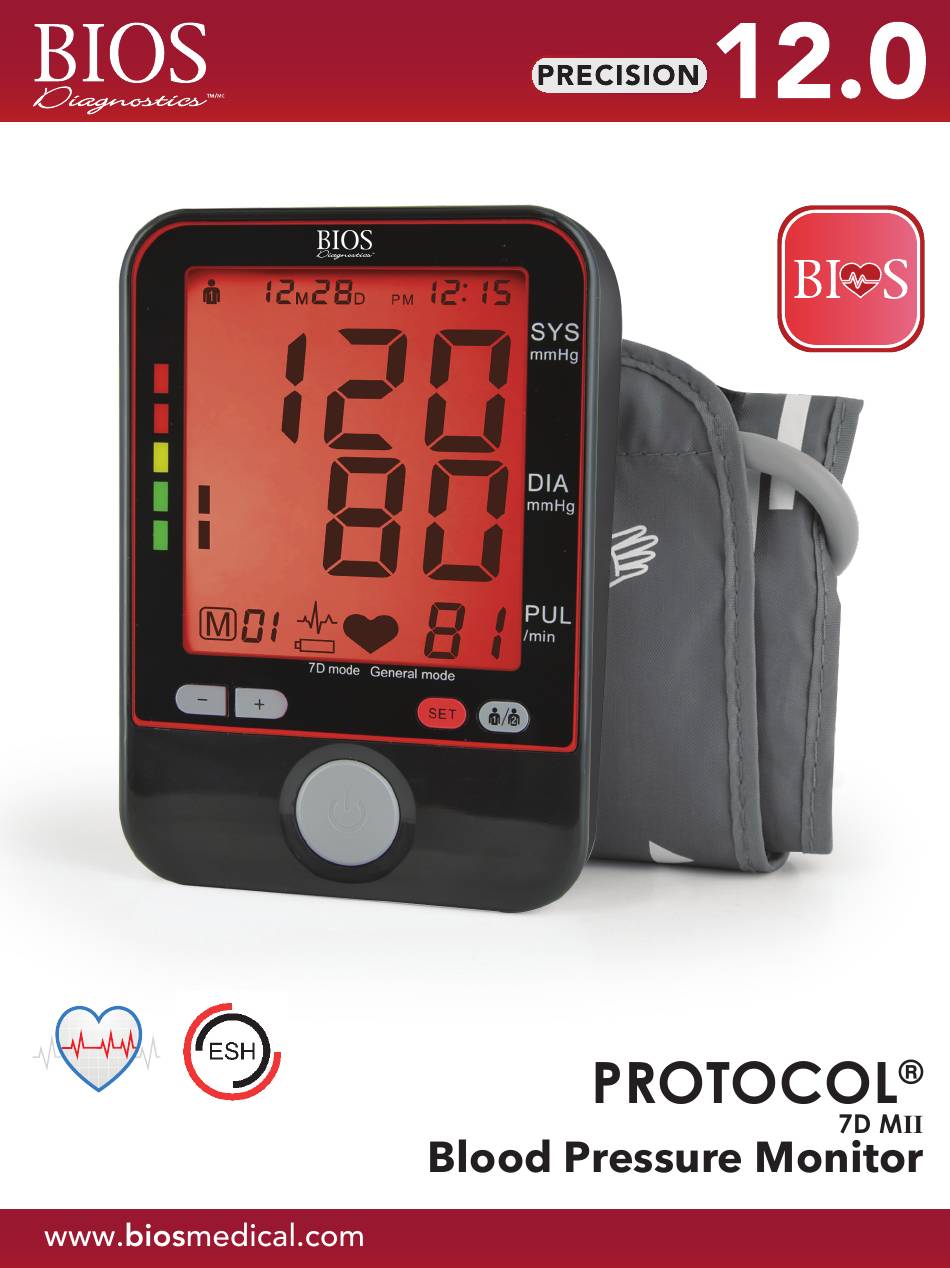

  • Page 1 ‡ † Instruction Manual Model: BD245...
  • Page 2 For more information on clinical tests and other BIOS medical products, visit our website at www.biosmedical.com. If you have questions about this device or blood pressure monitoring at home, email us at: support@biosmedical.com...

  • Page 3: Table Of Contents

    Blood Pressure Monitor Instruction Manual Table of Contents Introduction Features Important Information 1.2A Safety Information 1.2B Care of the Device About Blood Pressure Normal Blood Pressure Values Common Blood Pressure Questions and Answers Getting Started About the Blood Pressure Monitor About the LCD Screen Inserting the Batteries Using the AC/DC Power Adapter...

  • Page 4: Introduction

    1. Introduction Thank you for purchasing the BIOS Diagnostics Protocol 7D Blood Pressure Monitor. Designed for convenient and easy operation, this device provides a simple, yet accurate method to measure your blood pressure. Your blood pressure is an important parameter that can be used to monitor your health. This device enables you to monitor your blood pressure regularly, and maintain a record of your blood pressure measurements.
  • Page 5 depends on the environment and your state of mind at the time of measurement. In general, your blood pressure is lower when you are asleep and higher when you are active. Your blood pressure may be higher when recorded at a hospital or a clinic and may be lower when measured in the relaxing comfort of your home.

  • Page 6: B Care Of The Device

    1.2B Care of the Device Do not drop or bang the unit. Prevent sudden jerks, jars, or shocks to the device to prevent damage. Do not insert any foreign objects in any device openings or vents. Do not disassemble the unit. Do not store the unit in direct sunlight, high humidity, or in places with a lot of dust.
  • Page 7 Refer to the following table for classifying blood pressure values (units: mmHg) according to the Canadian Heart and Stroke Foundation: Category Systolic Blood Pressure Diastolic Blood Pressure Optimal < 120 and / or < 80 Normal < 130 and / or <...
  • Page 8 mmHg Time Your blood pressure also increases and decreases under the following circumstances Your blood pressure can vary due to the environment (temperature, nervous condition). When measuring blood pressure at the doctor’s office, it is possible for blood pressure to increase due to anxiety and tension. One or two readings will not provide a true indication of your normal blood pressure.

  • Page 9: Getting Started

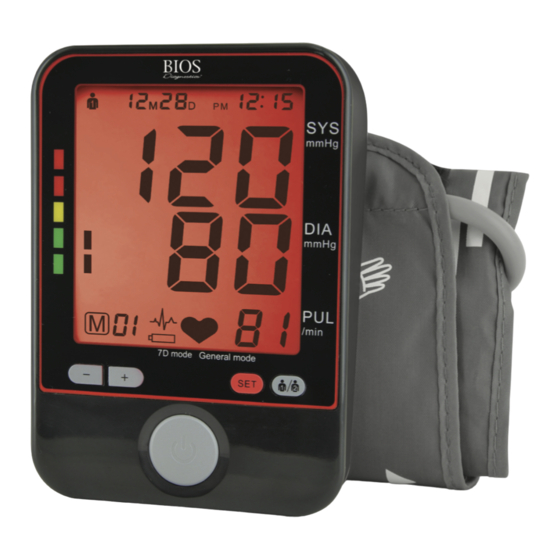

    2. Getting Started This section describes the various components of the Blood Pressure Monitor. a) Blood Pressure Monitor AC/DC socket Air socket for cuff connector b) Cuff User button Memory Wide range cuff button Set button Cuff connector Start/Stop button Wide range cuff for arm circumference 24 - 43 cm or 9.4”...

  • Page 10: Inserting The Batteries

    2.3 Inserting the Batteries Follow these steps to insert four “AA” batteries in to the device. 1. Open the battery compartment cover in the direction shown. LR6(AA) 2. Insert four “AA” batteries with the correct polarity as 1.5Vx4 indicated. 3. Replace the battery compartment cover. been replaced.

  • Page 11: B Common Sources Of Error

    1. When the monitor is powered OFF, press the SET button 3 times, the YEAR will +” or “-” button to choose the year and press SET to store in the memory. 2. Repeat the same process to set the MONTH by using the “+” or “-” button. Press the SET button to store it in the memory.
  • Page 12 and calm environment. Ensure that you take measurements under the same conditions to obtain an accurate estimate of blood pressure variation patterns. measured. Each 15 cm difference in height results in a measurement error of 10 mmHg. blood pressure measurements should be repeated after at least a 15 second pause or after the arm has been a) Put the end of the cuff (with fastener) through the metal ring, making the cuff a cylinder (ignore this step if your cuff is already set up).

  • Page 13: General Mode

    f) You can adjust the level of your arm by putting a cushion under your arm. Ideally the cuff should be at heart level. g) Remain seated in a comfortable room temperature for at least 5 minutes, then start the measurement. h) For those who cannot put the cuff on the left arm, put it on the right arm as shown.
  • Page 14 Rest for 5 minutes before taking a measurement Sit at a table with your arm supported and legs uncrossed Avoid all movement and muscle tension Breathe normally and do not speak Wait at least 1 minute between consecutive measurements AM & PM measurements should be taken 10-12 hours apart To start your measurement, see section 3.6 Measuring Your Blood Pressure.

  • Page 15: Discontinuing A Measurement

    3. When the device detects a heartbeat, the heart symbol “ you can hear a beep for every heartbeat. 4. When the measurement has been completed, you will hear a long beep and the systolic, diastolic and pulse rate will appear on the display. 5.
  • Page 16 You should see the memory count down on the BP monitor as its downloading the measurements to the APP. If there are no measurements this will not happen. 8. Once the memory download is complete, you can take your measurement. When the measurement is completed the monitor will sync with the APP automatically.
  • Page 17 7D mode General mode 7D mode General mode 7D mode General mode 7D mode General mode 7D mode General mode Reasons why the Protocol Software is displaying - Not enough measurements have been saved in memory. For the Protocol Software to work there needs to be 28 measurements saved in memory, 4 measurements taken for 7 days.

  • Page 18: Error Messages / Malfunctions

    4. Error Messages / Malfunctions If an error occurs during a measurement the LCD displays the corresponding error code. Error Possible Cause Ensure that the cuff is worn correctly and Weak signal or a sudden change in pressure measure again. Avoid movement or talking Electromagnetic interferance can cause odd External disturbance (eg.

  • Page 19: Care And Maintenance

    100% Satisfaction Guarantee If at any time, you are not completely satisfied with the performance of this device, call our BIOS Medical Hotline and speak with a customer service person, who will make arrangements to have the device repaired or replaced to your full satisfaction.

  • Page 20: Technical Specifications

    Should repair be necessary, return the unit with all component pieces. Enclose proof of purchase and $5.00 for return shipping and insurance. Ship the unit prepaid and insured (at owners option) to: WWW.BIOSMEDICAL.COM Email: support@biosmedical.com Please include your name, return address, phone number, and email address. Thermor will repair or replace (at Thermor’s option) free of charge any parts necessary to correct the defect in material or workmanship.
