Summary of Contents for BIOS 3MS1-4K

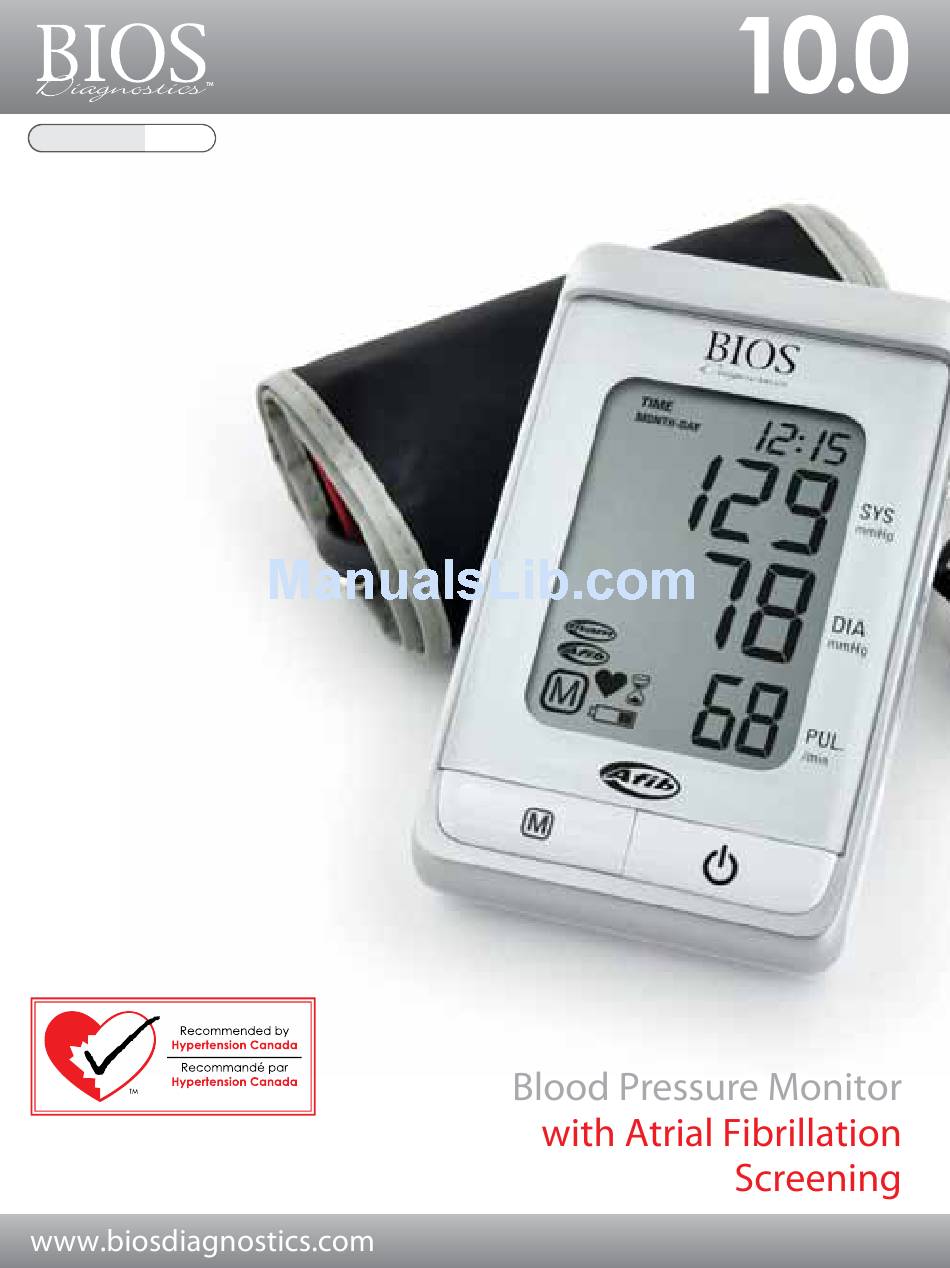

- Page 1 Go to biosdiagnostics.com for a FREE Log Book! PRECISION SERIES Instruction Manual Model: 3MS1-4K...
- Page 2 Office and manufacturing plant, Church St, Toronto 1934 Trusted by Canadians for 3 Generations. At BIOS Diagnostics, we are proud of our legacy in blood pressure monitoring across Canada. From the early 1930’s to 1987 we manufactured Tycos professional blood pressure equipment for doctors and hospitals in Canada.
-
Page 3: Table Of Contents
1.7B How Does AFIB Impact my Family or Me? 1.7C AFIB Detection Provides a Convenient Way to Screen for AFIB (only in MAM Mode) 1.7D Risk Factors you Can Control Getting Started About the 3MS1-4K About the LCD Screen Inserting the Batteries Using the AC Adapter... - Page 4 Software Functions Error Messages / Malfunctions Care and Maintenance Lifetime Guarantee Technical Specifications...
-
Page 5: Introduction
1.1 Features The 3MS1-4K is a fully automatic, digital, blood pressure measuring device with a unique fuzzy logic technology as well as patented MAM and AFIB technologies. It can store up to 200 blood pressure readings. - Page 6 • If you are undergoing medical treatment and receiving medication, consult your doctor to determine the most appropriate time to measure your blood pressure. Never alter the dosages of any medication without direction from your doctor. • Your blood pressure depends on several factors, such as age, gender, weight, and physical condition. It also depends on the environment and your state of mind at the time of measurement. In general, your blood pressure is lower when you are asleep and higher when you are active.
-
Page 7: B Care Of The Device
— Do not short-circuit the batteries. — Do not use rechargeable batteries. 1.2B Care of the Device For prolonged life of your blood pressure monitor, note the following instructions: • Do not drop or bang the unit. Prevent sudden jerks, jars, or shocks to the device to prevent damage. • Do not insert any foreign objects in any device openings or vents. • Do not disassemble the unit. • If the unit has been stored at very low or freezing temperatures, allow to reach room temperature before using • Do not store the unit in direct sunlight, high humidity, or in places with a lot of dust. • Clean the device with a soft dry cloth. Do not use gasoline, thinner or similar solvents. Carefully remove spots on the cuff with a damp cloth and soap. -
Page 8: Common Blood Pressure Questions And Answers
This way you can detect possible changes in your values early and react appropriately. Refer to the following table for classifying blood pressure values (units: mmHg) according to the World Health Organization (WHO): Category Systolic Blood Pressure Diastolic Blood Pressure Optimal < 120 < 80 Normal < 130 < 85 High Normal 130 - 139 85 - 89 Hypertension • Stage 1: Mild 140 - 159... -
Page 9: About Mam Technology
Your blood pressure also increases and decreases under the following circumstances Blood pressure is higher than normal: • when you are excited, nervous, or tense • while taking a bath • during and after exercise or strenuous physical activity • when it is cold • within one hour after meals • after drinking tea, coffee, or other caffeinated drinks • after smoking tobacco • when your bladder is full Blood pressure is lower than normal: • after consuming alcohol • after taking a bath Why is the doctor’s reading different from the reading taken at home? Your blood pressure can vary due to the environment (temperature, nervous condition). -
Page 10: C Medical Benefits
1.6C Medical Benefits • Improved accuracy 1.6D Measurement Sequence • Single results are not displayed • Due to the “Data Analysis” result, a 4th or 5th measurement may be applied. The following illustration provides a flow chart of the MAM Sequence Diagram 1 1.7 Important facts about atrial fibrillation (AFIB) 1.7A What is Atrial Fibrillation (AFIB)? Normally, your heart contracts and relaxes to a regular beat. Certain cells in your heart produce electrical signals that cause the heart to contract and pump blood. -
Page 11: Getting Started

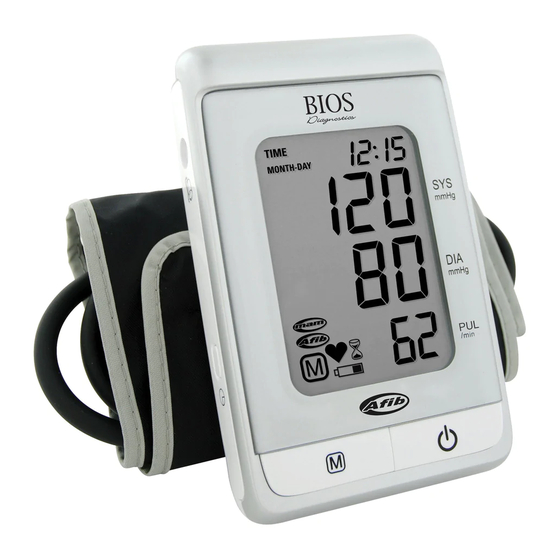

2. Getting Started 2.1 About the 3MS1-4K a) This section describes the various components of the Blood Pressure Monitor. b) Upper arm cuff: Type BD051 wide range cuff for arm circumference 22-42 cm or 8.75” - 16.5”. Cuff connection: Insert the cuff tube into the opening provided on the left side of the monitor as shown in the diagram. -
Page 12: About The Lcd Screen
2.2 About the LCD Screen The LCD screen displays the systolic and diastolic blood pressure measurements along with your heart rate. It also displays previously recorded measurements and the date and time, when the appropriate button is pressed. Symbol Guide Atrial Fibrillation MAM Averaging Please wait in between measurements... -
Page 13: Using The Ac Adapter
3. Using the Device This section describes how to get the maximum benefit from your 3MS1-4K blood pressure monitor. Follow the instructions carefully to get an accurate measurement of your blood pressure and pulse rate. 3.1 Setting the Time and Date When you insert the batteries for the first time (see “Inserting the batteries”), the monitor... -
Page 14: Measurement Mode Selection (Mam Or Single)
3.2 Measurement Mode Selection (MAM or single) Clinical studies demonstrate taking multiple blood pressure readings and calculating an “average” is more likely to determine your true blood pressure. Your premium blood pressure unit allows you to switch the unit to an Average Mode setting that automatically takes multiple readings! Average Mode Slide Switch (MAM): a) If you would like to take an Average Mode measurement, move the slide switch to... -
Page 15: C Fitting The Wide Range Cuff
ATTENTION! Comparable blood pressure measurements always require the same conditions with a peaceful and calm environment. Ensure that you take measurements under the same conditions to obtain an accurate estimate of blood pressure variation patterns. • If the arm artery lies considerably lower or higher than the heart, an erroneous value of blood pressure is measured. Each 15 cm difference in height results in a measurement error of 10 mmHg. • A loose cuff causes false measurement values. •... - Page 16 f) You can adjust the level of your arm by putting a cushion under your arm. g) Remain seated in a comfortable room temperature for at least 5 minutes, then start the measurement. h) For those who cannot put the cuff on the left arm, put it on the right arm as shown.
-
Page 17: Measuring Your Blood Pressure
3.4 Measuring Your Blood Pressure After following the guidelines described in the previous section and placing the cuff around your upper arm, you are now ready to measure your blood pressure. Follow these steps to record your measurement. 1. Press the button to turn on the device and start measurement. -
Page 18: Clearing All Values
® systems. To download the software go to www.biosdiagnostics.com. Go to the support page and download “3MS1-4K Link Software 3.2.5.E”. Follow the directions to download the software. Once installation is complete connect the monitor via USB cable with the PC. Three horizontal bars will appear on the display and last for 3 seconds. - Page 19 Err 5 The difference between systolic pressure and Ensure that the cuff is being worn correctly and diastolic pressure is too far away from accept- that you have been inactive for a sufficient time able and reasonable range. before making the measurement. Err 6 Due to unstable conditions during measure- Avoid unnecessary movement and talking.
- Page 20 6. Care and Maintenance a) Do not expose the device to either extreme temperatures, humidity, dust or direct sunlight. b) The cuff contains a sensitive air-tight bubble. Handle this carefully and avoid all types of stress through twisting or buckling. c) Clean the device with a soft, dry cloth. Do not use gas, thinners or similar solvents.
- Page 21 If at any time, you are not completely satisfied with the performance of this device, call our BP Hotline and speak with a customer service person, who will make arrangements to have the device tested and repaired or replaced to your full satisfaction. If you have questions regarding the operation of your monitor call the BIOS Diagnostics Blood Pressure ™...
- Page 22 8. Technical Specifications Operating temperature: 10 to 40°C / 50 to 104°F Storage temperature: -20 to 55°C / -4 to 131°F 15 to 90 % relative maximum humidity Weight: 560 g (including batteries) Dimensions: 152 x 92 x 42 mm Measuring procedure: oscillometric, corresponding to Korotkoff method: Phase I systolic, Phase V diastolic Measurement range: 30 - 280 mmHg – blood pressure 40 - 200 beats per minute –...
