Ubiquiti LBE-5AC-LR Quick Start Manual

Ubiquiti LBE-5AC-LR Quick Start Manual

5 ghz airmax ac long-range cpe with innerfeed technology
Hide thumbs Also See for LBE-5AC-LR:
Table of Contents

Advertisement

Quick Links

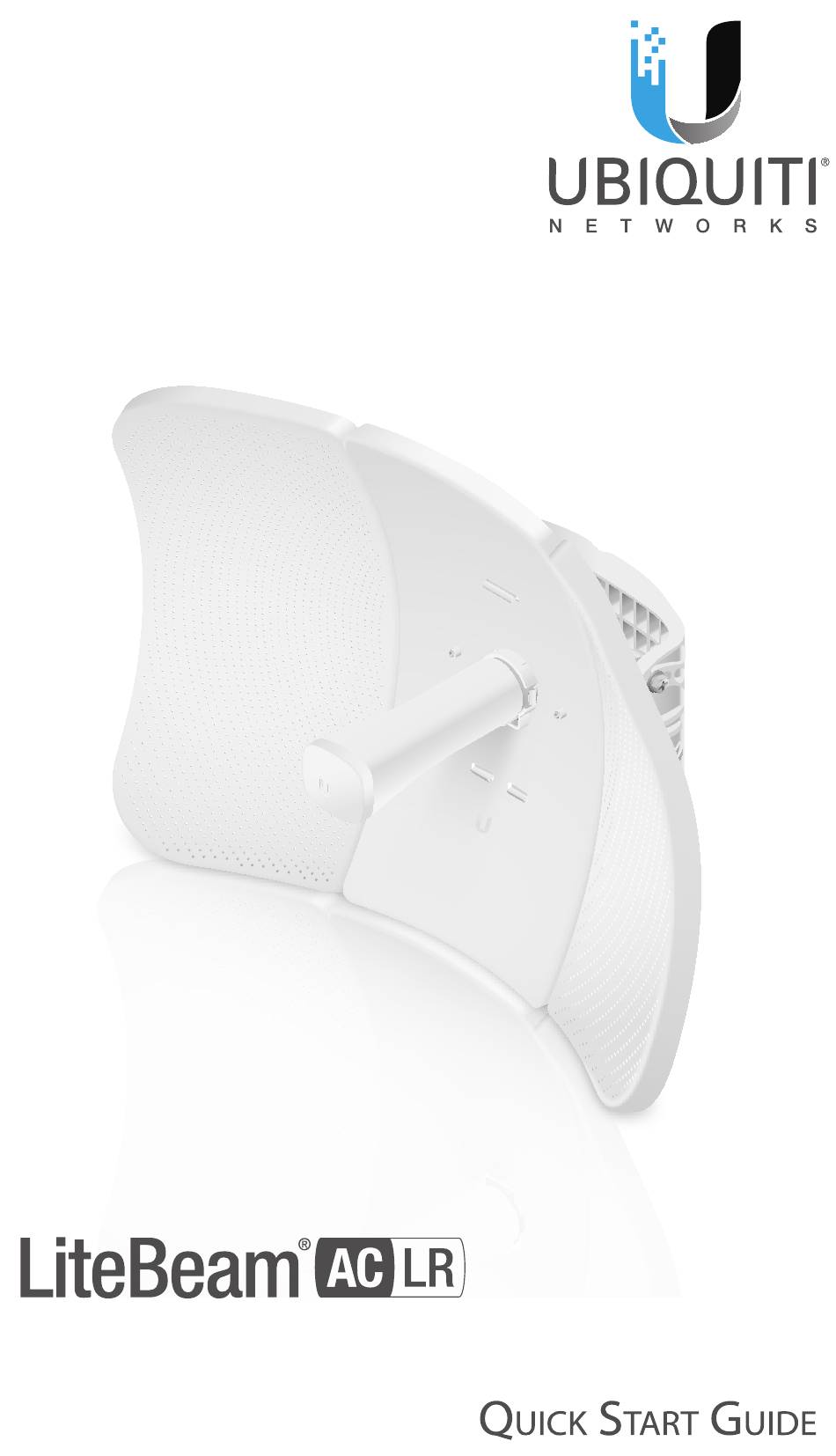

5 GHz airMAX
AC Long-Range
®
CPE with InnerFeed
Technology
®
Model: LBE-5AC-LR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LBE-5AC-LR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti LBE-5AC-LR

Summary of Contents for Ubiquiti LBE-5AC-LR

  • Page 1 5 GHz airMAX AC Long-Range ® CPE with InnerFeed Technology ® Model: LBE-5AC-LR...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® LiteBeam® 5AC LR. This Quick Start Guide is designed to guide   you through installation and also includes warranty terms. Package Contents Antenna Feed Center Reflector Side Reflector Panels Panel (Qty. 2) Mounting Bracket...

  • Page 3: Installation Requirements

    AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable • Surge protection should be used for all outdoor installations.

  • Page 4: Application Examples

    Application Examples The LiteBeam mounted outdoors with the reflector installed provides directional outdoor coverage (gain reflector‑dependent). The LiteBeam mounted outdoors without the reflector installed provides outdoor‑to‑indoor coverage using the 3 dBi Antenna Feed only.

  • Page 5: Hardware Overview

    Hardware Overview Bottom View LEDs Technology Reset Button Ethernet Port Antenna Feed Reflector Assembly Port Cover Rear Housing Pivot Panels Mounting Bracket...
  • Page 6 LEDs Ethernet The LED will light steady blue when an active Ethernet connection is made and flash when there is activity. Power The LED will light blue when the device is connected to a power source. Button Reset To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the LiteBeam is powered on.

  • Page 7: Hardware Installation

    Hardware Installation The LiteBeam was designed for outdoor use and quick mounting on a pole. 1. Hold the Center Reflector Panel by hand (do not use a tabletop or flat surface) and insert the Rear Housing: WARNING: Do not install the Rear Housing into the Center Reflector Panel by pushing down onto a tabletop or other flat surface as this can deform the panel.
  • Page 8 c. Press the bottom two snap hooks into the bottom two slots until they lock into place. Back View Front View d. Press the heads of the two mounting studs into the corresponding holes until they lock into place. Back View Front View...
  • Page 9 2. Assemble the antenna reflector by attaching the Side Reflector Panels to the Center Reflector Panel: a. Insert the two locating pins on the Center Reflector Panel into the corresponding holes of the Side Reflector Panel. b. Use two M4 SEM Screws to fasten the top and bottom of the two panels.
  • Page 10 3. Use two M4 SEM Screws to fasten each Pivot Panel to the Reflector Assembly.
  • Page 11 4. Insert the Antenna Feed into the Rear Housing until the feed locks into place. 5. Turn the Port Cover counterclockwise to access the Ethernet Port on the Antenna Feed. Then remove the rubber plug.
  • Page 12 6. Take one end of an Ethernet cable and push it through the rubber plug on the Port Cover and connect it to the Ethernet Port. 7. Replace the rubber plug and reattach the Port Cover to the Rear Housing by turning it clockwise until it is secure.

  • Page 13: Pole Mounting

    Pole Mounting 1. Open a Metal Strap and feed it through a slot of the Mounting Bracket. Repeat for the remaining Metal Straps. 2. To mount the Mounting Bracket, wrap each Metal Strap around the pole. Use a 7 mm socket wrench or screwdriver to turn the screw clockwise and securely fasten the strap to the pole.
  • Page 14 3. To mount the LiteBeam, start with one side: insert the locating pin on one Pivot Panel into the corresponding hole of the Mounting Bracket. Then insert the locating pin of the other Pivot Panel into its corresponding hole. 4. Install the four M8 SEM Screws loosely.
  • Page 15 5. You have ±15° of elevation adjustment available. Aim the LiteBeam toward the other end of the wireless link. 6. Lock the aim by tightening the four M8 SEM Screws.
  • Page 16 Connect the power using one of the following options: • Using the included Gigabit PoE Adapter: Go to Connecting to the PoE Adapter. • Using a separate PoE switch: Connect the Ethernet cable from the LiteBeam’s Ethernet port to a PoE‑enabled Ethernet port on the switch.
  • Page 17 1. Download the UNMS app from the App Store® (iOS) or Google Play (Android). ™ 2. Connect your device’s Wi‑Fi to the LiteBeam SSID named: LBE-5AC-LR:<MAC Address> Note: Ensure that DHCP is enabled on your Wi‑Fi adapter. 3. Launch the app. 4. Tap the LiteBeam on the Connections screen.
  • Page 18 5. Tap Connect on the Login screen. 6. Select your Country and tap Done.
  • Page 19 7. Under Configuration, customize your settings as needed.

  • Page 20: Web Portal

    Web Portal 1. Connect your device’s Wi‑Fi to the LiteBeam SSID named: LBE-5AC-LR:<MAC Address> Note: Ensure that your Wi‑Fi connection has DHCP enabled. 2. Launch a web browser and go to: http://setup.ubnt.com http://setup.ubnt.com 3. Select your Country and Language. You must agree to the Terms of Use to use the product.

  • Page 21: Installer Compliance Responsibility

    Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements.

  • Page 22: Specifications

    Specifications LBE‑5AC‑LR Dimensions 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17") Weight 1.360 kg (2.998 lb) With Mount 1.735 kg (3.825 lb) Networking Interface (1) 10/100/1000 Ethernet Port Antenna Gain 26 dBi Max. Power Output 25 dBm Max.

  • Page 23: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 24: Limited Warranty

    Limited Warranty www.ubnt.com/support/warranty/ The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions. Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 25 ISED Canada CAN ICES‑3(A)/NMB‑3(A) This device complies with ISED Canada licence‑exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This device must accept any interference, including interference that may cause undesired operation of the device. This radio transmitter (IC: 6545A‑LBE5ACLR) has been approved by ISED Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type...

  • Page 26: Radiation Exposure Statement

    IMPORTANT NOTE: Radiation Exposure Statement: • This equipment complies with radiation exposure limits set forth for an uncontrolled environment. • This equipment should be installed and operated with minimum distance 103 cm between the radiator and your body. • This transmitter must not be co‑located or operating in conjunction with any other antenna or transmitter.
  • Page 27 CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List AT BE BG CY CZ DE DK EE EL ES FR HR LU MT NL PL PT RO BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max.
  • Page 28 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 29 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 30: Declaration Of Conformity

    Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique du type LBE-5AC-LR est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l’adresse internet suivante: www.ubnt.com/compliance Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp LBE-5AC-LR der...

  • Page 31: Online Resources

    Português [Portuguese] O(a) abaixo assinado(a) UBIQUITI NETWORKS declara que o presente tipo de equipamento de rádio LBE-5AC-LR está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: www.ubnt.com/compliance Română...
  • Page 32 Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, InnerFeed, LiteBeam, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
