- Page 1 User’s Manual SPP-L3000 MOBILE PRINTER Ver. 1.00 http://www.bixolon.com...

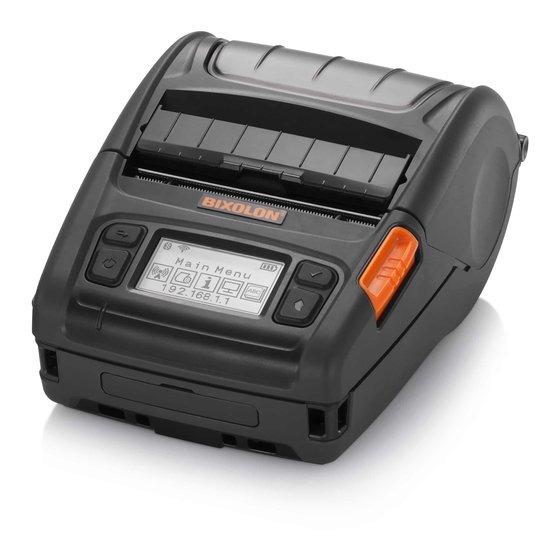

- Page 2 SPP-L3000 Introduction The SPP-L3000 is a 3-inch thermal mobile label printer which simultaneously connects with Bluetooth and WLAN. I deal for smart mobility labelling due to its compact, lightweight design with an easy-to-open peeler and LCD. ※ The main features of the printer are as follows 1.
- Page 3 SPP-L3000 Safety Information Warnings must be heeded carefully in order to prevent serious Warning physical harm. Cautions must be heeded in order to prevent minor injuries, Caution equipment damage, or data loss. Symbol Information DC (Direct current) Warning, Caution Ethernet - 3 - Ver.
-
Page 4: Table Of Contents
SPP-L3000 Table of Contents 1. Content Confirmation ......................10 2. Product Part Names ......................10 3. Installation & Usage ......................12 3-1 Battery Installation ......................12 3-2 Battery Charging ......................12 3-2-1 Using AC Adapter ....................12 3-2-2 Using Single Battery Charger (Optional) ............. 13 3-2-3 Using Quad Battery Charger (Optional) .............. - Page 5 SPP-L3000 Manual Information This user’s manual contains basic information for product usage as well as for emergency measures that may be required. ※ The following separate manuals provide more detailed content on various technological issues and areas. 1. Software Manual This manual provides information for development.
- Page 6 SPP-L3000 Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products into one multi-outlet.
- Page 7 SPP-L3000 CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following • If not, they may eat it.
- Page 8 SPP-L3000 Battery Safety Warning Please be sure to read this guide prior to use. Warning 1. If the battery is not charged after the charging time, stop charging and contact the seller. 2. Store and use the battery where it will not come into contact with liquid (water, salt water, etc.).
- Page 9 SPP-L3000 12. Do not disassemble or modify the battery. The battery contains safety and protection devices to prevent danger. It may reduce battery performance and life due to damage, or there may be a risk of overheating, rupturing or igniting.
-
Page 10: Content Confirmation
SPP-L3000 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. ※ Basic items SPP-L3000 Battery Pack AC Adapter Power Cord... -
Page 11: Product Part Names
SPP-L3000 2. Product Part Names • Front Paper Cover Peeler Menu Move Button Power Button Charge Indication LED Cover Open Button Shoulder Strap Ring Menu Select Button Outer Terminal Cover Paper Feed Button • Rear Hole for mounting belt strap... -
Page 12: Installation & Usage
SPP-L3000 3. Installation & Usage 3-1 Battery Installation 1) Insert the battery in the bottom of the printer, and ensure that you align the battery hook properly. 2) Push the battery into the slot until you hear it snap in place. -
Page 13: Using Single Battery Charger (Optional)
BIXOLON when using a single battery charger. BIXOLON is not legally liable for any such damages. Caution - You must use the battery charger provided by BIXOLON to use the singles battery charger. (AC adapter is not available) - 13 -... -
Page 14: Using Quad Battery Charger (Optional)
SPP-L3000 3-2-3 Using Quad Battery Charger (Optional) 3-2-3-1 Connecting the cables 1) Connect the power cord to the adaptor, and Connect the adaptor to the power connector of the quad battery charger. 2) Plug the power cord into a power Outlet. - Page 15 SPP-L3000 3-2-3-2 Charging Battery 1) Insert the battery into the Quad charger as shown in the figure on the left. 2) Gently slide the battery until it reaches the bottom of the charger. 3) Charging starts as soon as the battery is completely inserted.
-
Page 16: Paper Installation
SPP-L3000 3-3 Paper Installation 1) Press the Open button to open the paper cover. 2) Insert the paper as shown. (Remove the empty core.) 3) Align the paper as shown. 4) Pull out the paper as shown and close the paper cover. - Page 17 SPP-L3000 NOTE The specification of the paper inner diameter of the standard paper disks are 19 mm. If you are using paper with a smaller inner diameter, remove the paper disks as shown below and replace it with the supplied 12 mm paper disks.
-
Page 18: Using Peeler
SPP-L3000 3-4 Using Peeler 1) Insert the paper after open the peeler as shown. 2) Pull out the paper after close the peeler as shown. - 18 - Ver. 1.00... -
Page 19: Using Belt Strap
SPP-L3000 3-5 Using Belt Strap 1) Insert the belt strap screw into the belt strap hole. Belt Strap 2) Use a coin to tighten the belt strap screw Coin as shown in the image. 3) Unfasten the belt strap Velcro. -
Page 20: Using Shoulder Strap (Optional)
SPP-L3000 3-6 Using Shoulder Strap (Optional) Please, insert hooks of the strap into each slot as shown in the picture. - 20 - Ver. 1.00... -
Page 21: Using Fan Fold Paper
SPP-L3000 3-7 Using Fan Fold Paper 1) After keeping the paper guide wide as shown in the figure, hold the paper guide by lifting left guide holder as shown in the figure. 2) Separate the fan fold cover by pushing as shown in the figure. -
Page 22: Using 3Inch Paper
SPP-L3000 3-8 Using 3inch Paper After keeping the paper guide wide as shown in the figure, hold the paper guide by lifting right guide holder as shown in the figure. NOTE Use only when you are using 3 inch (80mm) paper. -
Page 23: Using Control Panel
SPP-L3000 3-9 Using Control Panel • Power Button This button is used to turn the printer on, off, to move to main menu or to operate the action. 1) When the printer is off, press this button for approximately 2 seconds to turn on the power. -
Page 24: Recommended Papers
SPP-L3000 3-10 Recommended Papers • Receipt paper - TF50KS-E (Paper Thickness: 65μm): Nippon Paper Industries Co., Ltd. - PD 150R (Paper Thickness: 75μm): New Oji Paper Mfg. Co., Ltd. - PD 160R (Paper Thickness: 75μm): New Oji Paper Mfg. Co., Ltd. -
Page 25: Self-Test
4) After the wireless interface information is printed, the self-test is automatically terminated. • Self-Test Sample BIXOLON SPP-L3000 CONFIGURATION FIRMWARE VERSION : V01.00 STD 010118 EMULATION : SLCS & BPL-Z & BPL-C PRINT DARKNESS... - Page 26 RF INTERFACE STATUS (BT) RF INTERFACE STATUS (WLAN) BLUETOOTH F/W VER : 2.0.4 WLAN F/W VER : 02.02(4002) MAC ADDRESS MAC ADDRESS FRIENDLY NAME : SPP-L3000 SYSTEM NAME : SPP-L3000 MODE : CLASSIC NETWORK MODE : SOFT AP AUTH & ENCRYPT : ENABLED FREQUENTY : (PRIORITY)2.4GHZ/5GHZ...
-
Page 27: Lcd Menu
SPP-L3000 5. LCD Menu You can check printer status and setting information through LCD. • Top icon Icon Description Bluetooth is enabled but not connected to the host device. Bluetooth is enabled and connected to the host device. Display signal strength of wireless LAN. - Page 28 SPP-L3000 • Main menu icon Icon Description Check / set the status of the wireless interface 1) Bluetooth - Check Bluetooth Device name - SSP (Secure Simple Pairing) / PIN code mode setting - Check MAC address - BLE / Classic mode setting...
-
Page 29: Peripherals Connection
SPP-L3000 6. Peripherals Connection This product can communicate with other devices via Bluetooth, Wireless LAN communication and cable. 6-1 Bluetooth, Wireless LAN Connection 1) The printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.). 2) Use the Bluetooth connection function supported by the device to connect to the printer. -
Page 30: Interface Cable Connection
3) Connect the interface cable to the USB port of the device (PDAs, PCs, etc.). NOTE ① The interface cable that can be connected to the printer is Serial/USB cable provided by ② BIXOLON(optional) or mini 5-pin cable supporting USB2.0. - 30 - Ver. 1.00... -
Page 31: Fixed Interface Cable Connection
4) Connect the interface cable to the USB ① port of the device (PDAs, PCs, etc.). NOTE ② The fixed interface cable that can be connected to the printer is Serial/USB cable provided by BIXOLON(optional). ③ - 31 - Ver. 1.00... - Page 32 SPP-L3000 - 32 - Ver. 1.00...
-
Page 33: Printer Cleaning
Print quality may be degraded or printhead life may be shortened if it is not cleaned periodically. • Use only the linerless paper that is provided by BIXOLON. Use of other paper voids product warranty. -
Page 34: Appendix
SPP-L3000 8. Appendix 8-1 Specifications Item Description Printing Method Thermal printing Print Speed Up to 5 ips Resolution 203 dpi 10 SLCS Resident Bitmap Fonts One SLCS Resident Scalable Font 16 BPL-Z™ Resident Bitmap Fonts One BPL-Z™ Resident Scalable Font Font 7 BPL-C™... -
Page 35: Label Types
SPP-L3000 8-2 Label Types • The labels used on this product are composed of the following materials; • BIXOLON logo label: PC • Rating Label: PP • Other labels: PET - 35 - Ver. 1.00... - Page 36 BIXOLON Co., Ltd. The information contained herein is designed only for use with this BIXOLON product. BIXOLON is not responsible for any direct or indirect damages, arising from or related to use of this information.
- Page 37 SPP-L3000 Caution Some semiconductor devices are easily damaged by static electricity. You should turn the printer “OFF”, before you connect or remove the cables on the rear side, in order to guard the printer against the static electricity. If the printer is damaged by the static electricity, you should turn the printer “OFF”.
- Page 38 SPP-L3000 Revision History Rev. Date Page Description 1.00 04.04.18 - 38 - Ver. 1.00...
