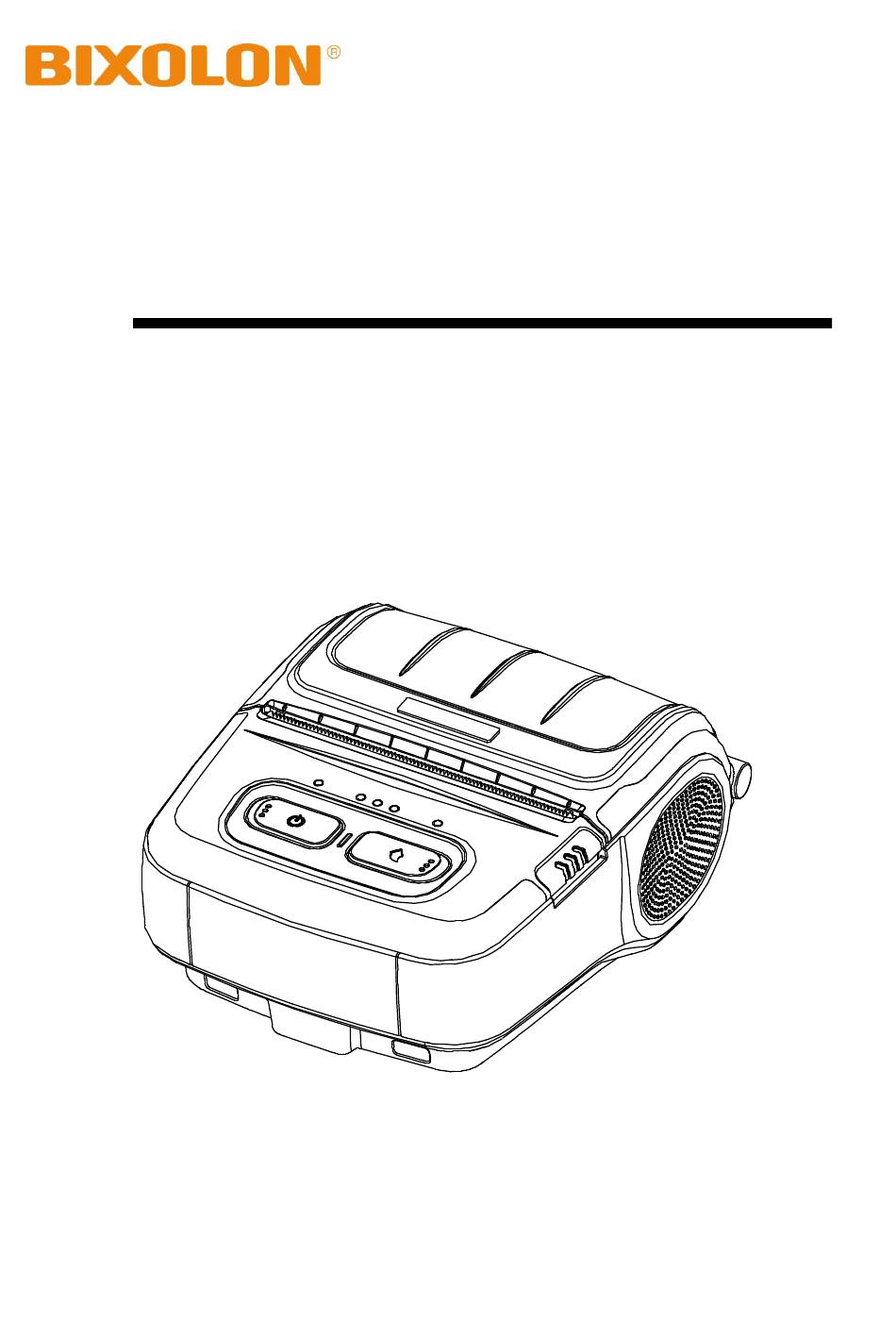

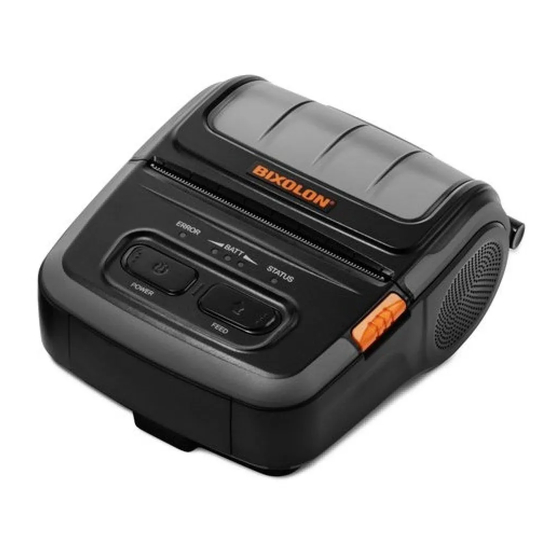

- Page 1 User's Manual SPP-R310/L310 Mobile Printer Rev. 1.03 http://www.bixolon.com...
-
Page 2: Table Of Contents
SPP-R310/L310 ■ Table of Contents 1. Content Confirmation ··················································································· 10 2. Product Part Names ····················································································· 11 3. Installation & Usage ····················································································· 12 3-1 Battery Installation ··············································································· 12 3-2 Battery Charging ·················································································· 12 3-2-1 Using Battery Charger ····································································· 12 3-2-2 Using Single Battery Cradle (Optional) ················································ 13 3-2-3 Using Cigarette Lighter Charger (Optional) ··········································... - Page 3 This manual provides information on each character code page that can be used with this product. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.
- Page 4 SPP-R310/L310 ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products into one multi-outlet. You must use only the supplied adapter.
- Page 5 SPP-R310/L310 CAUTION Violating following instructions can cause slight wound or damage the appliance. Keep the desiccant out of children’s reach. If you observe a strange smoke, odor or noise from the printer, unplug it before taking following • If not, they may eat it. measures.
- Page 6 5. Do not directly connect the battery to an electrical power outlet not specified by BIXOLON or an automobile’s cigarette lighter jack. Doing so may result in overheating, combustion and/or explosion of the battery by over-current and/or over-voltage. 6. Do not heat the battery or place it near a fire. Doing so may melt insulation materials, damage the safety mechanism/equipment, and/or ignite the electrolytic solution.
- Page 7 SPP-R310/L310 10. Do not pierce the battery with a pointed object, such as nail or awl, or strike with a heavy object, such as a hammer, and take care not to step on the battery. There is a potential risk of battery overheating, combustion, and/or explosion caused by an internal short circuit.
- Page 8 10. There is a risk of explosion when replacing with an incorrect battery. Only exchange it for another one of the same or equivalent model specified by BIXOLON. Insulate the used battery by attaching insulation tape to its port, and then dispose of the battery according to local regulations.
- Page 9 BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the information in this manual. BIXOLON Co., Ltd. and its affiliates are not legally liable for any damages, loss, costs,...
-
Page 10: Content Confirmation
SPP-R310/L310 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. ※ Basic items Paper SPP-R310/L310 Battery Pack Battery Charger (Only SPP-R310) Power Cord Belt Clip... -
Page 11: Product Part Names
SPP-R310/L310 2. Product Part Names • Front Paper Cover Power Button Open button Paper Feed Button • Rear Hole for mounting belt strap / belt clip Battery Interface Cap Cable Connection Power Connection - 11 - Rev. 1.03... -
Page 12: Installation & Usage
CAUTION The printer may incur serious damage if the battery charger provided by BIXOLON is not used. BIXOLON is not legally liable for any such damages. (The voltage and electrical current specifications of the printer and battery charger must match.) -
Page 13: Using Single Battery Cradle (Optional)
① CAUTION The printer may be seriously damaged if a battery charger not provided by BIXOLON is used. BIXOLON is not liable for such damage. WARNING Turn off the power before charging the battery for the printer. - 13 -... -
Page 14: Using Quad Battery Charger (Optional)
SPP-R310/L310 3-2-4 Using Quad Battery Charger (Optional) 3-2-4-1 Connecting the cables 1) Connect the power cord to the adaptor, and Connect the adaptor to the power connector of the quad battery charger. 2) Plug the power cord into a power Outlet. Input power is 100 ~ 240VAC, 50/60Hz, 1.0A. - Page 15 SPP-R310/L310 3-2-4-2 Charging Battery (Printer) 1) Insert the battery into the Quad charger as shown in the figure on the left. 2) Gently slide the battery until it reaches the bottom of the charger. 3) Charging starts as soon as the battery is completely inserted.
-
Page 16: Paper Installation
SPP-R310/L310 3-3 Paper Installation 1) Press the Open button to open the paper cover. 2) Insert the paper as shown. (Remove the empty core.) 3) Align the paper as shown. 4) Pull out the paper as shown and close the paper cover. 5) Tear off any excess paper toward the side of the printer. -
Page 17: Using Belt Clip
SPP-R310/L310 3-4 Using Belt Clip 1) Insert the belt clip screw to the belt clip mounting hole. Coin Belt Clip 2) Tighten the screw of the belt clip with an object like a coin as shown. (Be careful to tighten the screw in the correct direction.) 3) Slide the clip over the belt. -
Page 18: Using Belt Strap (Optional)
SPP-R310/L310 3-5 Using Belt Strap (Optional) 1) Insert the belt strap screw into the belt strap hole. Belt Strap 2) Use a coin to tighten the belt strap screw Coin as shown in the image. 3) Unfasten the belt strap Velcro. Belt 4) Slide the belt strap over a belt. -
Page 19: Using Control Panel
SPP-R310/L310 3-6 Using Control Panel • Power Button This button is used to turn the printer on and off. 1) When the printer is off, press this button for approximately 2 seconds to turn on the power. 2) When the printer is on, press this button for approximately 2 seconds to turn off the power. -
Page 20: Using Msr (Optional, Only Spp-R310)
SPP-R310/L310 3-7 Using MSR (Optional, Only SPP-R310) 1) Insert the card as shown in the image and swipe in the direction of the arrow. (can be done in both directions) NOTE If the card does not register, first check to see if it is properly aligned. -
Page 21: Self-Test
3) After printing begins, release the two buttons. 4) After the information is printed out, the self test is automatically terminated • Self-Test Sample (SPP-L310) RF INTERFACE STATUS (BT) BIXOLON SPP-L310 CONFIGURATION BLUETOOTH F/W VER : 2.0.4 FIRMWARE VERSION : V01.00 STD 010118... - Page 22 SPP-R310/L310 • Self-Test Sample (SPP-R310) Firmware version : V01.00 STOBa 010115 : 256K Bytes Butter Capacity USB 2.0 Interface Serial Interface - Baud rate : 115200 bps - Data bits : 8 bits - Parity : None - Stop bit : 1 bit - Handshaking : DTR/DSR : 100%...
-
Page 23: Label Printing Function
SPP-R310/L310 5. Label Printing Function 5-1 Label Function Setting Label paper and black mark paper available at the label mode. The SPP-R310 is set to receipt mode and the SPP-L310 is set to label mode by default. • How to set label mode and receipt mode 1) Turn on the printer power. -
Page 24: Peripherals Connection
SPP-R310/L310 6. Peripherals Connection This product can communicate with other devices via Bluetooth, Wireless LAN communication and cable. 6-1 Bluetooth & Wireless LAN Connection 1) The printer can be connected to devices equipped with Bluetooth communication capacity (PDAs, PCs, etc.). 2) Use the Bluetooth connection function supported by the device to connect to the printer. -
Page 25: Interface Cable Connection
(optional) ② to the cable connector of the printer. NOTE ① Use only the cables (optional) provided by BIXOLON. 3) Connect the interface cable to the USB ② port of the device (PDAs, PCs, etc.). NOTE The interface cable that can be connected with the printer is available in both USB and Serial type. -
Page 26: Printer Cleaning
Print quality may be degraded or printhead life may be shortened if it is not cleaned periodically. Warning • Use only the linerless paper that is provided by BIXOLON. Use of other paper voids product warranty. - 26 - Rev. 1.03... -
Page 27: Appendix
- USB, SERIAL, - Bluetooth Class2 V3.0 +EDR, - Wireless LAN 802.11 b/g/n USB, SERIAL, Communications Interface Bluetooth 4.1(Classic/LE), SPP-R310plus Wireless LAN 802.11 a/b/g/n - USB, SERIAL, - Bluetooth 4.1(Classic/LE), - Wireless LAN 802.11 a/b/g/n Voltage: 100 ~ 240 VAC Input Current: 0.5A (Max. - Page 28 SPP-R310/L310 Type Lithium-ion Voltage: 7.4 VDC (Available 8.4 ~ 6.8VDC) Battery Output Capacity: 2600 mAh Charging time Within four hours ISO 7810/7811/7812, Card Reader Triple tracks (1 & 2 & 3 Tracks) (Optional) T- DES encryption & DUKPT key management Printer: -15~50℃...
-
Page 29: Certification
SPP-R310/L310 8-2 Certification 1) WEEE (Waste Electrical and Electric Equipment) This mark shown on the product or its literature indicates that the corresponding item should not be discarded at the end of its working life with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate marked items from other types of waste and recycle them responsibly to promote the sustained reuse of material resources. - Page 30 <Warning> The battery has the potential risk of overheating, fire and/or explosion. To avoid such risks, observe the following instructions: • A visibly swollen battery may be dangerous. Contact BIXOLON or your local dealer. • Only use an eligible charger.
-
Page 31: Label Types
• Consult the dealer or an experienced radio/TV technician for help. 8-3 Label Types The label types used with this printer are as follows. • BIXOLON logo label: PC • Rating Label: PP • Other labels: PET - 31 -...
