  • Page 2: Table Of Contents

    TABLE OF CONTENTS Coca-Cola Freestyle Dispenser Daily Tasks Weekly Tasks (continued) Overview and Use Clean NNS Compartment 123456 123456 123456 Coca-Cola Freestyle Dispenser and Connector ........19 Change a Cartridge ......11 – 12 Introduction .......... 3 – 4 Clean Ice Chute ........20 Check and Change High Power the Dispenser On/Off......

  • Page 3: Introduction

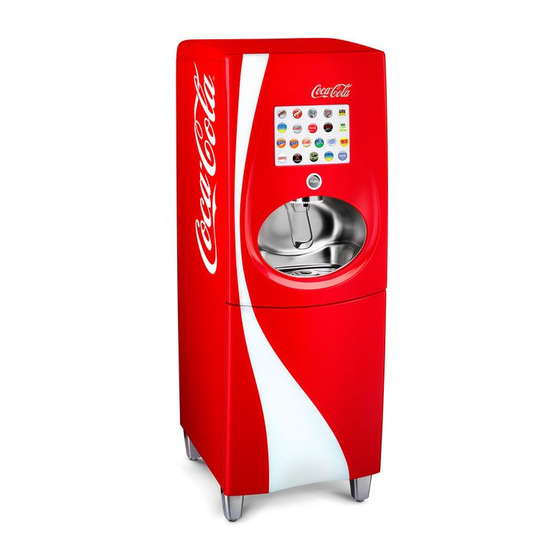

    COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE INTRODUCTION Freestyle Dispenser: Exterior Ice Bin Lid Upper Door Touch Screen Status Indicator Light Pour Button Nozzle Pour Button Ice Lever Nozzle Drip Tray Ice Lever Cup Rest Drip Tray RFID Reader Cup Rest...
  • Page 4 COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE INTRODUCTION Interior Components Backroom Components Water Booster Manual On/O Switch Water Filtration System Upper Door Release Latch Carbon Dioxide (CO2) Gauge Cartridge Storage Double Cartridge Slot RFID Tag NNS Storage BIB Pump Single Cartridge Slot...

  • Page 5: Power The Dispenser On/Off

    COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE POWER ThE DISPENSER ON/OFF CAUTION: DO NOT power on or off the Coca-Cola Freestyle dispenser unless told to do so in this guide, or by a Coca-Cola technician. CAUTION: Open the lower door Scan a cartridge...

  • Page 6: Pour A Beverage

    COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE POUR A BEvERAGE Pour a Beverage This screen appears when Place cup against ice lever This screen appears unit has not been used for and push to dispense ice. when the screen is touched a period of time.

  • Page 7: Use The Ada Interface

    COCA-COLA FREESTYLE DISPENSER OvERvIEW AND USE USE ThE ADA INTERFACE The ADA interface allows people with disabilities (such as those in wheelchairs) to use the Coca-Cola Freestyle dispenser without having to reach the touch screen. There are three buttons on the ADA Interface.

  • Page 8: Daily Tasks

    LEMONADE or has an off-taste or odor, refer to “Troubleshooting” Repeat steps on page 25 of this guide the three main brands for assistance. offered on the dispenser: Coca-Cola, Diet Coke Minute Troubleshooting Maid Light WATER LEMONADE and Sprite. Minute...

  • Page 9: Check And Refill Ice

    CAUTION: Follow store safety If there is an ice maker on top of the procedures when lifting Fill a bucket with ice. Coca-Cola Freestyle dispenser, follow anything heavy, like ice. established procedures for checking the ice level. CAUTION: Large chunks can damage the Coca-Cola Freestyle dispenser.

  • Page 10: Check Cartridge Level

    DAILY TASkS ChECk CARTRIDGE LEvEL Touch the Coca-Cola brand Touch the three (3) areas of the image on the screen. Coca-Cola image in the order shown to access“Crew Mode” on the touch screen. Minute Light Maid LEMONADE WATER Check cartridge gauge levels.

  • Page 11: Daily Tasks (Continued)

    Remove the cartridge. clean the overflow area. excess drips or fluid. Empty cartridges will be picked up by a courier each week and returned to Coca-Cola for recycling.
  • Page 12 If the light does not turn solid green, refer spill on the floor or inside of the Close the lower door when finished. to page 24 in the “Troubleshooting” Coca-Cola Freestyle dispenser, section for additional information. clean the areas right away.

  • Page 13: Check And Change High

    DAILY TASkS ChECk AND ChANGE hFCS 65 Check HFCS 65 Change HFCS 65 Lift the HFCS 65 box to see how much product is left. Hold a cloth beneath the connector Remove connector Remove the empty HFCS 65 to catch any spills. Turn connector from the HFCS 65 box.

  • Page 14: Check Non-Nutritive Sweetener Blend (Nns)

    DAILY TASkS ChECk NON-NUTRITIvE SWEETENER BLEND (NNS) 123 456 123 456 123 456 123 456 123 456 123 456 Open the lower door by scanning a cartridge or a Manager Key Card over the RFID reader. Pull down front door of NNS compartment, slide tray out.

  • Page 15: Change Non-Nutritive Sweetener Blend (Nns)

    DAILY TASkS ChANGE NON-NUTRITIvE SWEETENER BLEND (NNS) Open the lower door by 123 456 123 456 123 456 scanning a cartridge or a 123 456 123 456 123 456 123 456 123 456 123 456 123 456 123 456 123 456 Manager Key Card over the RFID reader.

  • Page 16: Preparing For Daily Cleaning Tasks

    1-888-538-2653. DO NOT use scouring pads, steel wool or any abrasive material. It will scratch the surface and result in rusting/pitting. Coca-Cola recommends Kay-5 ® Sanitizer, or a comparable food-grade chlorine sanitizer. KAY-5 Sanitizer DO NOT use paper towels.

  • Page 17: Clean Nozzle

    DAILY TASkS CLEAN NOzzLE Place the nozzle in a Place the nozzle in clean sink and rinse with the prepared warm, drinkable water. sanitizer solution. WARM Scrub the nozzle using Using a cloth to protect fingers Locate the nozzle. the brush shown. twist nozzle counter-clockwise, and then pull down to remove.

  • Page 18: Clean Ice Lever, Cup Rest, Drip Tray And Exterior Surfaces

    DAILY TASkS CLEAN ICE LEvER, CUP REST, DRIP TRAY AND ExTERIOR SURFACES Using a clean cloth and Remove the cup rest. Wash the cup rest in a Wash the drip tray using a approved sanitizer sink using an approved clean cloth and an approved solution, wash the ice sanitizing solution.

  • Page 19: Weekly Tasks

    WEEkLY TASkS CLEAN NNS COmPARTmENT AND CONNECTOR This cleaning task Remove the NNS box 123 456 123 456 123 456 should be completed from compartment. on a weekly basis. Refer to “Change Non 123 456 123 456 123 456 Nutritive Sweetener Blend (NNS)”...

  • Page 20: Clean Ice Chute

    WEEkLY TASkS CLEAN ICE ChUTE CAUTION: If there is an ice maker on top of the Ice Chute Body Coca-Cola Freestyle dispenser, follow established procedures for cleaning the ice bin. Upper Ice Chute Turn off power to the dispenser. Refer to “Power the Dispenser On/Off”...

  • Page 21: Monthly Tasks

    CAUTION: If there is an ice maker on top of the Remove the ice bin lid. Empty the ice bin by Coca-Cola Freestyle dispenser, follow pressing the ice lever and established procedures for cleaning dispensing ice out the chute the ice bin.

  • Page 22: Manager Tasks

    Touch the Coca-Cola brand Touch the three (3) areas of the to prevent drinks from being image on the screen. Coca-Cola image in the order poured without having to shown to access “Crew Mode” manually power off the unit. on the touch screen.

  • Page 23: Unlock The Dispenser

    mANAGER TASkS UNLOCk ThE DISPENSER NOTE: If the screen is touched during Lock Dispenser mode, a warning will appear. Service Menu Enter User Mode: Crew Unlock Dispenser Operating System System Configuration Service Menu Operating System System Configuration Service Menu Date and Time HFCS Water Carb Water...

  • Page 24: Troubleshooting

    TROUBLEShOOTING Accessing the If you have a problem with the Coca-Cola Freestyle dispenser, Crew Interface first use the troubleshooting steps in this guide to try to fix the problem. If you are unable to fix the problem Minute Maid Light...
  • Page 25 Warm Drinks on Touch Screen A brand is sold out when it appears “gray” on the screen. The Coca-Cola brand is sold out in the examples shown here. Refer to “Change a Cartridge” on page 11 for instructions Dispense the same drink again without on replacing cartridges.
  • Page 26 TROUBLEShOOTING (continued) Foamy Drinks Flat Drinks No Ice Dispensing Other Problems Check beverage temperature Check beverage temperature If you experience problems that as outlined in “Troubleshooting, as outlined in “Troubleshooting, are either not described in this Warm Drinks” on page 25. Warm Drinks”...

  • Page 27: Frequently Asked Questions (Faq's)

    Q. Can I put a Coke cartridge in another slot if I am out of the other flavor? A. The Coca-Cola Freestyle dispenser is the first in a family of new dispensers A. No. Each slot is dedicated to a particular drink ingredient, flavor or that uses micro-dosing technology to offer more than 100 sparkling and sweetener.
  • Page 28 1. This device many not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation Changes and Modifications not expressly approved by The Coca-Cola Company can void your authority to operate this equipment under Federal Communications Commission’s rules.
  • Page 29   This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.  ...
