Summary of Contents for Avery Weigh-Tronix ZK810

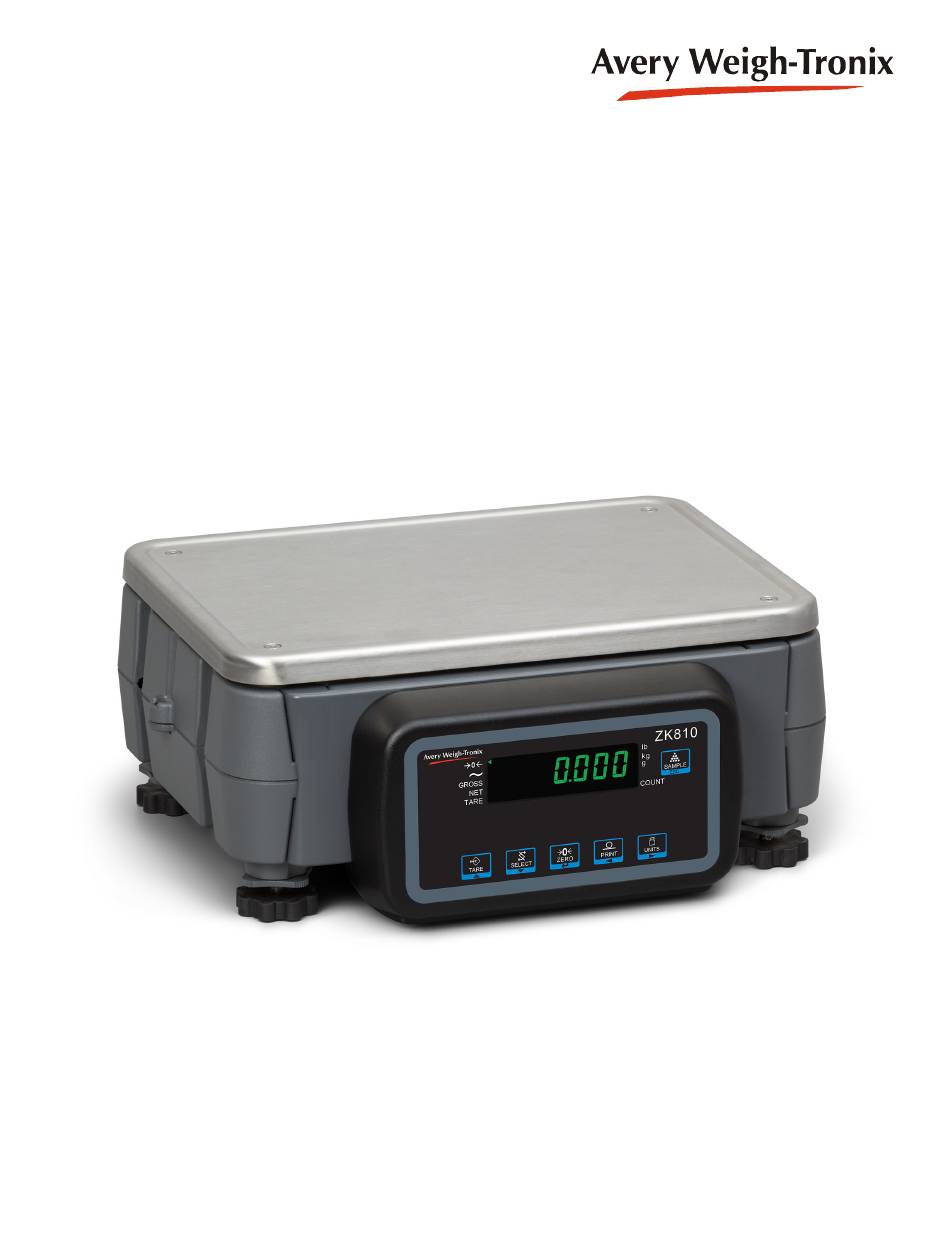

- Page 1 ZK810 Counting Scale User Instructions AWT35-501822 Issue AA...
- Page 2 This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the specification, design, price or conditions of supply of any product or service at any time.
-
Page 3: Table Of Contents
Chapter 2 Introduction ..........................9 Basic counting principles ....................9 Front panel ........................10 Annunciators ......................11 Powering up the ZK810 ....................11 Connections on the BSQ ....................12 Leveling the scale ......................14 Numeric entry procedure ....................15 Printing ..........................15 Chapter 3 Indicator applications ...................... - Page 4 Chapter 7 Supervisor menu ........................29 General Weighing application supervisor menu .............. 29 Battery menu item ..................... 30 App Pwr menu item ....................30 Counting application supervisor menu ................31 Count menu item ....................... 31 ZK810 Counting Scale User Instructions...
-
Page 5: Chapter 1 General Information And Warnings
Cautions give information about procedures that, if not observed, could result in damage to equipment or corruption to and loss of data. NOTE: This is a Note symbol. Notes give additional and important information, hints and tips that help you to use your product. ZK810 Counting Scale User Instructions... -
Page 6: Installation
Installations within Europe must use a socket which provides a minimum of IP56 protection to the plug / cable assembly. Care must be taken to make sure that the degree of protection provided by the socket is suitable for the environment. ZK810 Counting Scale User Instructions... -
Page 7: Routine Maintenance
To avoid the risk of RSI (Repetitive Strain Injury), place the machine on a surface which is ergonomically satisfactory to the user. Take frequent breaks during prolonged usage. 1.6 Sharp objects Do not use sharp objects such as screwdrivers or long fingernails to operate the keys. ZK810 Counting Scale User Instructions... -
Page 8: Fcc And Emc Declarations Of Compliance
Classe A prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada. European Countries WARNING: This is a Class A product. In a domestic environment, this product may cause radio interference in which the user may be required to take adequate measures. ZK810 Counting Scale User Instructions... -
Page 9: Chapter 2 Introduction

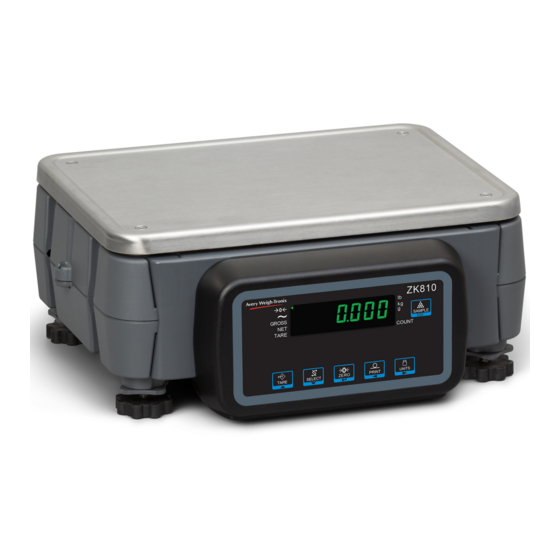

Basic counting principles Introduction The ZK810 is a counting scale indicator which, when attached to a BSQ digital scale base, creates a 35,000 division counting system. The indicator, shown in Figure 2.1, is easy to use. The indicator has an Ethernet port and two RS232 ports. -
Page 10: Front Panel
Press and hold to view the password entry screen for accessing the menus. To clear a tare weight, remove all weight from the scale and press the TARE key or press and hold the TARE key for three seconds. ZK810 Counting Scale User Instructions... -
Page 11: Annunciators
24VDC) via a 2.1mm center positive barrel jack plugged into the receiver on the back of the indicator. The first time you power up the ZK810 you need to pick which application you will be using. See First time power up on page 16 for instructions on how to do this. -
Page 12: Connections On The Bsq
AC power. These two panels and their connections are shown in Figure 2.3. Back panel for AC power only Not used in ZK810 Power connection Scale connection Back panel for DC or AC Power Battery connections Power connection Scale connection Figure 2.3 BSQ connections ZK810 Counting Scale User Instructions... - Page 13 The DC output barrel jack plugs into the 12-36 VDC input as shown in Figure 2.4. Figure 2.4 AC power block Plug the power cord into a properly grounded outlet, then into the receptacle in the PSU. See Figure 2.5. Figure 2.5 AC power connections ZK810 Counting Scale User Instructions...
-
Page 14: Leveling The Scale
When a 24-36 VDC power supply is plugged into the power connection on the back panel of the ZK810, the green POWER light will turn on indicating power has been applied to the BSQ base. The red CHARGING light will blink to indicate the battery is charging. -
Page 15: Numeric Entry Procedure
4.410 lb 09:11 am 03-25-2017 COUNT: 4009 Gross: 2.136 lb PIECE WT: 0.00110 lb Net: 0.800 lb Tare: 1.336 lb Print format #1 Print format #3 4.01 lb G Print format #10 Print format #9 ZK810 Counting Scale User Instructions... -
Page 16: Chapter 3 Indicator Applications
When sample parts are being added to the scale they can be counted out slowly or, in other words, dribbled onto the scale. A key press (SAMPLE key) is needed to finish the sampling process. The piece weight is calculated and the count is displayed. ZK810 Counting Scale User Instructions... -
Page 17: Select Key Default Function
Press the SELECT key repeatedly to scroll through other sample size choices (5, 10, 25, 50 or 100). When your choice is displayed, place that number of items on the scale and press SAMPLE … buSY is briefly displayed, followed by one of three possible outcomes: ZK810 Counting Scale User Instructions... -
Page 18: Counting In Bulk Mode
If the weight was unstable, tMout is briefly displayed and the display returns to gross weighing mode. The TARE key can be used to abort the sampling process, if necessary. ZK810 Counting Scale User Instructions... -
Page 19: General Weighing Application
To perform a net weighment using pushbutton tare, power up the unit and follow these steps: With no weight on the scale, if the display does not read 0 press ZERO … 0 is displayed and the center-of-zero annunciator lights. ZK810 Counting Scale User Instructions... -
Page 20: Printing
3.3.4 Printing To print the current weight information, press PRINT. The configured print format will be output through the configured port to the connected peripheral device. ZK810 Counting Scale User Instructions... -
Page 21: Chapter 4 Menus
Password protected menus are available to configure the indicator and/or view information. 4.1 Accessing the menus Follow these steps to access the menus in the ZK810. With the indicator powered up and in normal operating mode, press and hold SAMPLE/ESC …... -
Page 22: Exiting The Menus
Weighing Mode TARE = PRINT = Press and SAMPLE/ESC hold UNITS = ZERO = Enter 111 & press ZERO SAMPLE/ESC = Escape or User About Audit page page page Figure 4.1 USER level (password 111) menus ZK810 Counting Scale User Instructions... -
Page 23: User Menu
This is the entry screen for the minute. This is the entry screen for the second. StYLE Use this to set the style of clock for printouts. Choices are 12hr, 12hr-AP (AM/PM) and 24hr (military time). ZK810 Counting Scale User Instructions... - Page 24 The Site ID can be used in transmitted or printing information. ASCII characters 32- 126 can be used. To exit the menu, see Exiting the menus on page ZK810 Counting Scale User Instructions...
-
Page 25: About Menu
Use this item to view the values for the IP, Subnet, Gateway and MAC addresses. Press the ENTER key successively to see all parts of the addresses. If the indicator is connected to an ethernet network, the values displayed will be the current assigned addresses. ZK810 Counting Scale User Instructions... -
Page 26: Audit Menu
This is used for security and licensing purposes. Downloading is currently not supported in the ZK810. The dLoAd fields will display NONE when accessed. Use this to view the software part number, software version, serial number of the currently connected load cell and the serial number of the load cell the indicator was calibrated to. -
Page 27: Chapter 5 Error Messages
Scale not communicating - check interface cable from scale to indicator, contact scale service provider if error continues BSQ Cal Error / ZK810 and BSQ have not been calibrated together. Z-Lock / Indicator did not reach a stable zero weight within time window set for automated weighing process. -
Page 28: Chapter 6 String Index/Character Data Entry
Enter Add Digit ESC/Abort digit digit by 1 Move flashing Move flashing Delete flashing Long Key Press Does nothing Does nothing Does nothing digit left by 1 digit right by 1 digit ZK810 Counting Scale User Instructions... -
Page 29: Chapter 7 Supervisor Menu
App Pwr Enable Tmout 1-3600 None minutes Figure 7.1 Supervisor menu for the General Weighing application Use the navigation keys to reach the item you want to set. Each item is explained on the following pages. ZK810 Counting Scale User Instructions... -
Page 30: Battery Menu Item
Supervisor menu 7.1.1 Battery menu item Only enable the battery and set the tMout value if using the internal ZK810 battery option. The shut off timer will not work with other external battery sources. tMout This stands for timeout. Use this to set the length of time before inactivity of the scale and keypad cause battery power to be shutoff. -
Page 31: Counting Application Supervisor Menu
Example: If you pick 5, Add 5 is displayed as the minimum sample size when you begin the sampling process. This completes the Supervisor menu for the Checkweighing application. Repeatedly press TARE until the indicator returns to normal weighing mode. ZK810 Counting Scale User Instructions... - Page 32 Supervisor menu ZK810 Counting Scale User Instructions...
- Page 34 Avery Weigh-Tronix USA 1000 Armstrong Dr. Fairmont MN 56031 USA Tel: 507-238-4461 Fax: 507-238-4195 Email: usinfo@awtxglobal.com www.averyweigh-tronix.com Avery Weigh-Tronix UK Foundry Lane, Smethwick, West Midlands, England B66 2LP Tel: +44 (0) 8453 66 77 88 Fax: +44 (0)121 224 8183 Email: info@awtxglobal.com...
