Contents:
Installation Instructions:
Pump Specifications:
Exploded View:
Parts List / Kits:
Torque Specifications:
Preventative Maintenance
Repair Instructions:
Dimensions:
Warranty Information:

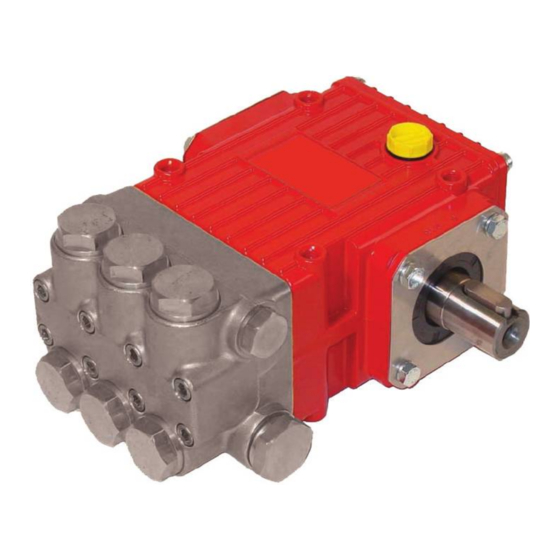

Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service Manual
For Models:
P205-5100
P205-5111
P205-5121
P205-5180
P206-5100
P206-5111
P206-5121
P206-5180
P209-5100
P209-5111
P209-5121
P209-5180
page 2
pages 3-5
page 6
page 7
page 8
page 8
pages 9-10
page 11
back page
Advertisement
Table of Contents
Related Manuals for Giant P200 Series
Summary of Contents for Giant P200 Series
- Page 1 Series Triplex Ceramic Plunger Pump Operating Instructions/ P200 Repair and Service Manual 12mm versions 316 Stainless Steel For Models: P205-5100 P205-5111 P205-5121 P205-5180 P206-5100 P206-5111 P206-5121 P206-5180 P209-5100 P209-5111 P209-5121 P209-5180 Contents: Installation Instructions: page 2 Pump Specifications: pages 3-5 Exploded View: page 6 Parts List / Kits:...
-
Page 2: Installation Instructions
Oil: Use only 8.1 ounces (0.24 litres) of Giant Oil (p/n 01154) ISO VG 220 GL4 (e.g. Aral Cavitation and/or compression of gases Degol BG220) or SAE 90 GL4 gear oil. -
Page 3: Pump Specifications
Pump Specifications Max. Flow Nominal/ Max. Plunger Diameter Stroke Power Intermittent Pressure Speed Required Model GPM l/min P205 2500 1750 0.47 0.13 0.86 0.64 P206 2500 1750 0.47 0.22 P209 2500 1750 0.47 0.39 Positive inlet pressure required- Make sure that suction pulsation is sufficiently dampened-water column resonance must be avoided. - Page 4 P200-5100/-5111/-5121/5180 - 12mm - EXPLODED VIEW...
- Page 5 P200-5100/-5111/-5121/-5180 SERIES PARTS LIST - 12mm Versions ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION 08300C Crankcase, Anodized 07391 V-Sleeve 08301 Oil Dipstick with O-Ring (-5100/-5180 versions) 08302 Crankcase Cover, Short 07391-0010 V-Sleeve (-5111 versions) 07190-0100 Drain Plug w/Gasket 07391-0020 V-Sleeve (-5121 versions) 08005 O-Ring...
-
Page 6: P206
Deposits of crankshaft (13). Contact any kind must be care- Giant for further details. fully removed from the plunger surface. A dam- aged plunger must be NOTE: If there are 7. Remove the weep return... - Page 7 (33). Apply one drop of Loctite 243 to the valve plugs (32) and tighten to 55 ft.- lbs. (75 NM). For maintenance of the gear end of your pump contact Giant Industries or your local distributor. Phone: 419/531-4600...
- Page 8 Liability under this warranty is on all non-wear parts and limited to the replacement or repair of those products returned freight prepaid to Giant Industries which are deemed to be defective due to workmanship or failure of material. A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration.
