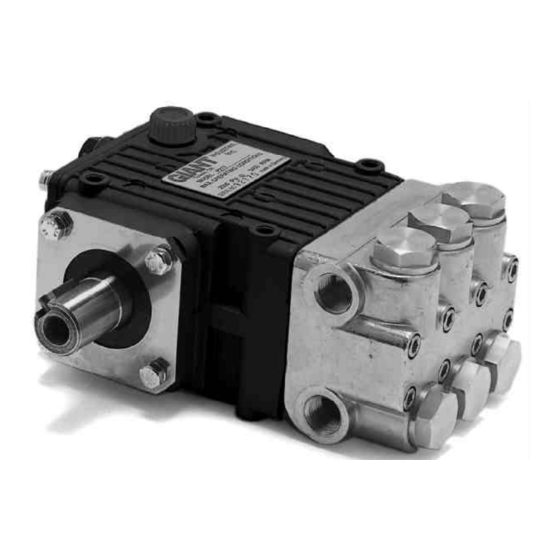

Triplex Ceramic Plunger Pump Operating Instructions/ Series Repair and Service Manual P200A -18mm versions For Models: P217 P218 P219 P220 P221 P227 P230 Contents: Installation Instructions: page 2 Pump Specifications: pages 3-9 Exploded View: page 10 Parts List: page 11 Kits &... -
Page 2: Installation Instructions
The use of a pumps. The following information is to be dampener with Giant Industries, Inc. pumps is considered as a general outline for installa- optional, although recommended by Giant tion. -
Page 3: Pump Specifications: Pages
Specifications Model P217A U.S....... Metric 1750 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..1.8 GPM ...... 6.8 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) ..1.8 GPM ...... 6.8 LPM 3450 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..3.3 GPM ...... 12.5 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) .. - Page 4 Specifications Model P218A U.S....... Metric Flow ..............3.4 GPM ...... 12.9 LPM Pressure (Continuous) ........2000 PSI ...... 140 Bar Pressure (Intermittent) ........2500 PSI ...... 175 Bar Maximum Crankshaft Speed ..............1750 RPM Maximum Inlet Pressure ........145 PSI ......10 bar Plunger Diameter ..........
- Page 5 Specifications Model P219A U.S....... Metric Flow ..............4.2 GPM ...... 15.9 LPM Pressure (Continuous) ........2000 PSI ...... 140 Bar Pressure (Intermittent) ........2500 PSI ...... 175 Bar Maximum Crankshaft Speed ..............1750 RPM Maximum Inlet Pressure ........145 PSI ......10 bar Plunger Diameter ..........
- Page 6 Specifications Model P220A U.S....... Metric Flow ..............4.7 GPM ...... 17.8 LPM Pressure (Continuous) ........2000 PSI ...... 140 Bar Pressure (Intermittent) ........2500 PSI ...... 175 Bar Maximum Crankshaft Speed ..............1750 RPM Maximum Inlet Pressure ........145 PSI ......10 bar Plunger Diameter ..........
- Page 7 Specifications Model P221A U.S....... Metric 1750 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..2.3 GPM ...... 8.9 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) ..2.3 GPM ...... 8.9 LPM 3450 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..4.2 GPM ...... 15.9 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) ..
- Page 8 Specifications Model P227 U.S....... Metric 1750 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..2.1 GPM ...... 8.0 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) ..2.1 GPM ...... 8.0 LPM 3450 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..3.8 GPM ...... 14.4 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) ..
- Page 9 Specifications Model P230 U.S....... Metric 1750 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..1.1 GPM ...... 4.2 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) ..1.1 GPM ...... 4.2 LPM 3450 RPM Flow (Continuous) @ 2000 PSI (140 Bar) ..2.0 GPM ...... 7.8 LPM Flow (Intermittent) @ 2500 PSI (175 Bar) ..
-
Page 10: Exploded View
Exploded View P217/P218/P219/P220/P221/P227/P230 Pumps... -
Page 11: Parts List
Spare Parts P217/P218/P219/P220/P221/P227/P230 Pumps ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY. 08300 Crankcase 08468 Plunger Base 06773 Oil Dipstick with O-Ring 08455 Plunger Pipe 08302 Crankcase Cover, Short 08456 Tension Screw 08302-L Crancase Cover, Long 07676 Copper Gasket 07190 Drain Plug &... -
Page 12: Kits & Torque Specifications
Repair Kits P217/P218/P219/P220/P221/P227/P230 Pumps Plunger Packing Kit Teflon Plunger Packing Kit Part # 09164 Part # 09164-0020 Item # Part # Description Qty. Item # Part # Description Qty. 08477 V-Sleeve, weep 08087-0020 V-Sleeve 08087 V-Sleeve, brown 07904 Pressure Ring 07904 Pressure Ring Viton Seal Kit... -
Page 13: Trouble Shooting
Replace plungers Inlet pressure too high Reduce inlet pressure High Crankcase Wrong Grade of oil Giant oil is recommended Temperature Improper amount of oil in crankcase Adjust oil level to proper amount Preventative Maintenance Check-List & Recommended Spare Parts List... -
Page 14: Repair Instructions: Pages
REPAIR INSTRUCTIONS - P217/P218/P219/P220/P221/P227/P230 PUMPS NOTE: Always take time to lubricate all metal and nonmetal parts with a light film of oil before reassembly. This step will ensure proper fit, at the same time protecting the pump nonmetal parts (i.e., the elastomers) from cutting and scoring. - Page 15 ( 33). For pumps manufactured prior to 5/97, tighten plugs (32) to 33 ft-lbs. otherwise, apply one drop of Loctite 243 to the valve plugs (32) and tighten to 59 ft.-lbs. NOTE: Contact Giant Industries for Service School Information. Phone: (419)-531-4600...
- Page 16 A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A. number.
