Console Port Pin Assignments

The DB-9 serial port on the switch's front panel is used to connect

to the switch for out-of-band console configuration. The on-board

menu-driven configuration program can be accessed from a

terminal, a PC running a terminal emulation program, or from a

remote location via a modem connection. The pin assignments

used to connect to the serial port are provided in the following

tables.

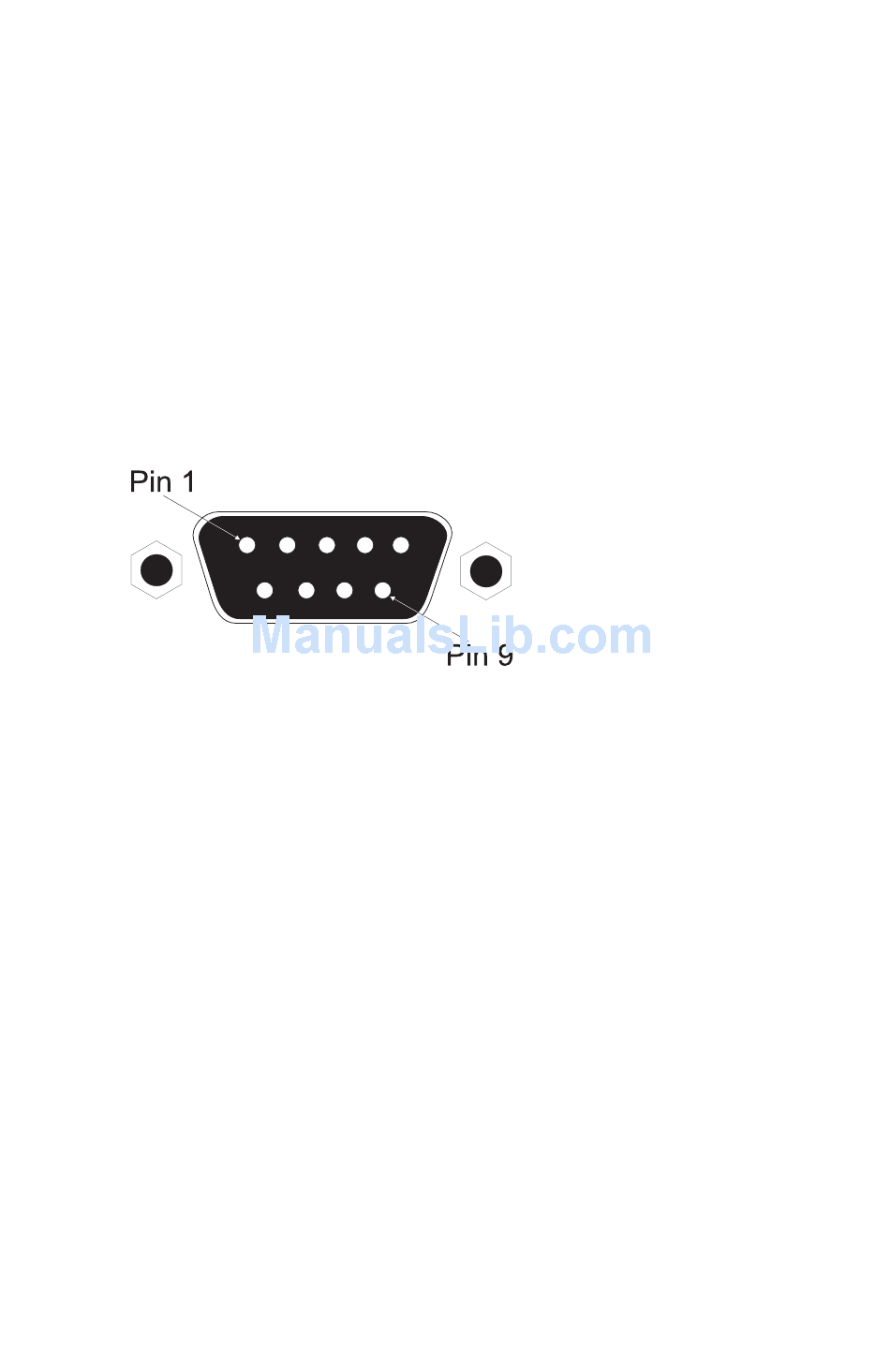

Figure B-2. DB-9 Console Port Pin Numbers

B-5
