Introduction

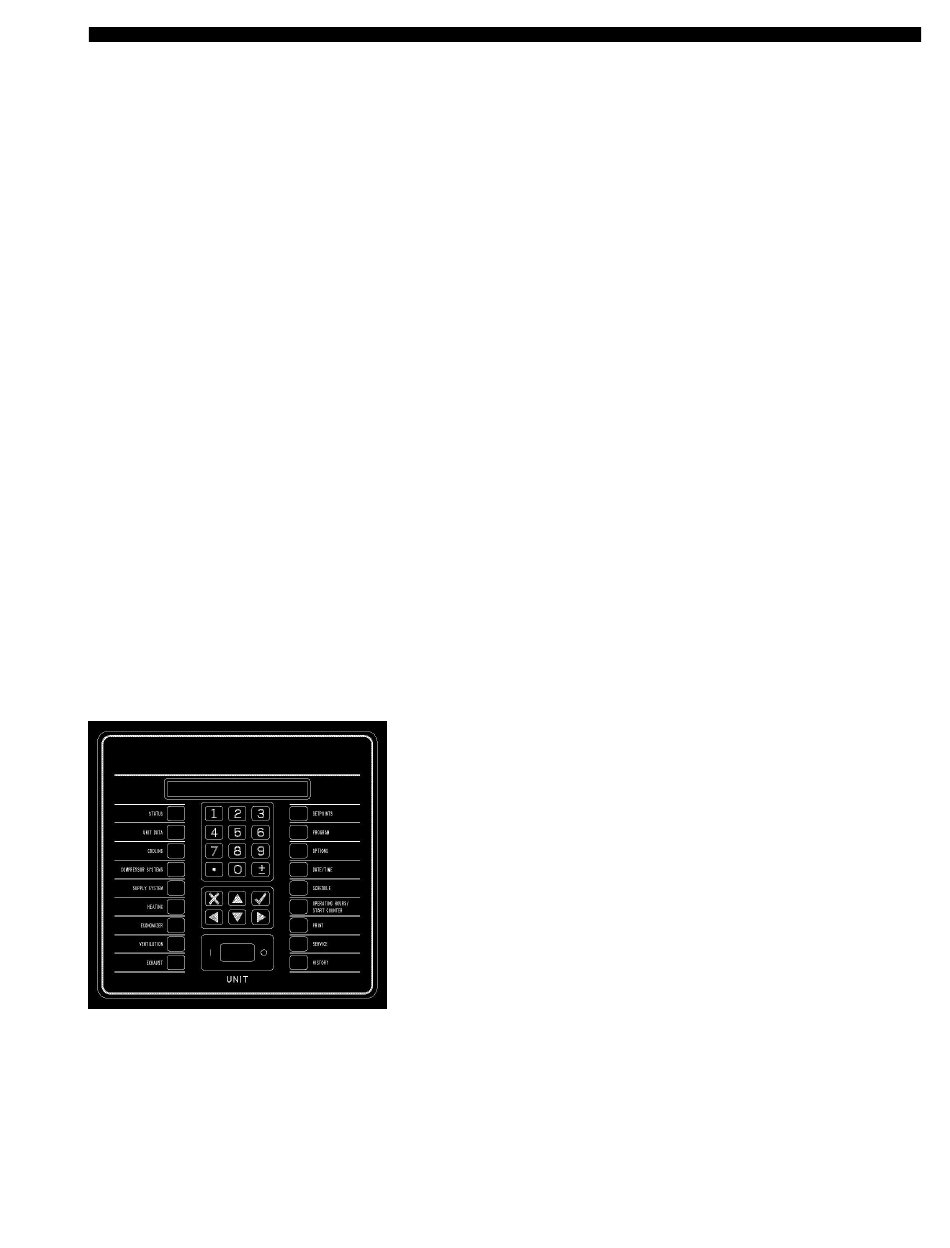

The Single Package Unit User Interface uses
microprocessor logic to optimize operation of the
Series 100 unit.
JOHNSON CONTROLS
The Johnson Controls Series 100 Single Packaged Units –
designed to meet the demands of the market for today and
tomorrow.
Better Economy...
Lower total cost of ownership
• Johnson Controls provides a standard product offering that meets the latest ASHRAE
90.1 energy efficiency requirements.
• Fully modulating gas heat and greater steps of capacity control offer superior off-
design performance while maintaining optimum occupant comfort.
• Accurate ventilation control ensures that no more than the proper amount of ventila-
tion air is utilized. This avoids the energy cost of conditioning excess outside air and
simultaneously monitors all other unit functions for maximized energy efficiency.
• Flexible design configurations simplify the design process and allows the Series 100
to be applied to virtually any building application.
• Accessibility through double-wall access doors, spacious compartments and sup-
portive floors improves serviceability.
Better Ecology...
Indoor air quality features for the indoor environment
• A double-sloped stainless steel drain pan with a single drain con-
nection ensures that all condensate is voided from the drain pan. It
is also visible and accessible for periodic inspection and cleaning re-
quired by the ASHRAE 62 IAQ standard.
• Double-wall construction of the roof, floor, doors, and walls pre-
vents insulation fibers from entering the conditioned air. The inner liner
also facilitates periodic cleaning of the unit to prevent harmful build-up
of bacteria or contaminants.
• The single package unit control center uses microprocessor log-
ic to analyze and optimize ventilation decisions and perform demand
ventilation, airflow compensation, and airflow measurement to main-
tain the air quality at a healthy level.
LD07431
FORM 100.50-EG12 (918)
