U RMON
SING
Field
Event Status
Matches
Description
Status
Field
Filters
Index
Owner
Channel Index
Packet Data Offset
Packet Data
Packet Data Mask
9-30
Table 9-21 Separate Control Tables: Channels
Description
Controls the flow of events.
Ready – A single event will be generated, after which the status will be set by the RMON probe to
"Fired." While in the Fired state, no events will be generated until the status is reset to Ready or
Always Ready.
Always Ready – Disables flow control and allows events to generated at will. Using this setting runs the
risk of generating a high volume of traffic and affecting network performance.
The number of times this channel has accepted a packet.
A comment provided by the user describing this channel.
The current status of the index entry in the Control Table: Valid, Under Creation or Invalid.

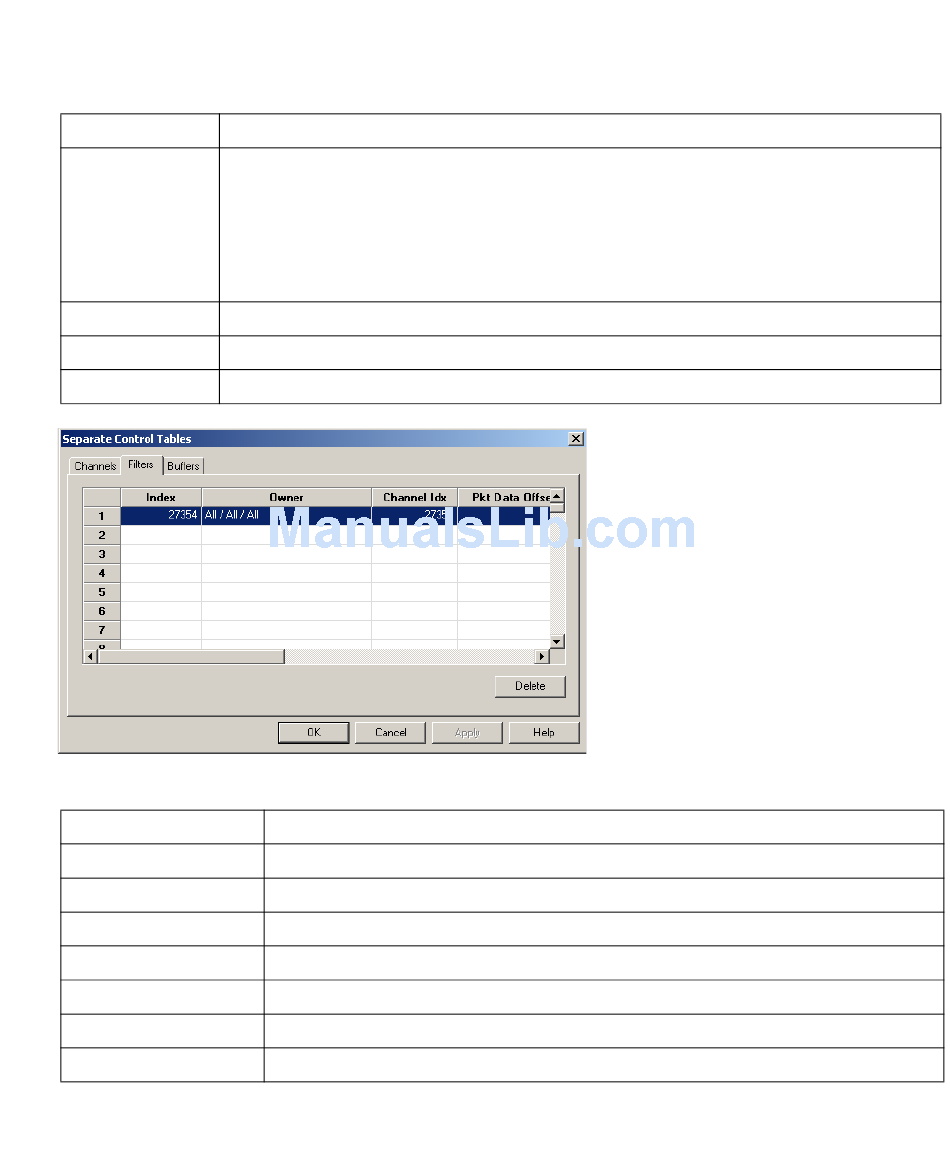

Table 9-22 Separate Control Tables: Filters

Description
Specifies the filter expressions used to capture data from the interface.
An index that uniquely identifies an entry in the filter table.
The person who created this filter entry.
The index used to identify the channel entry associated with this filter.
The offset from the beginning of each packet where a match of packet data will be attempted.
The data that are to be matched with the input packet.
The mask that is applied to the match process.
