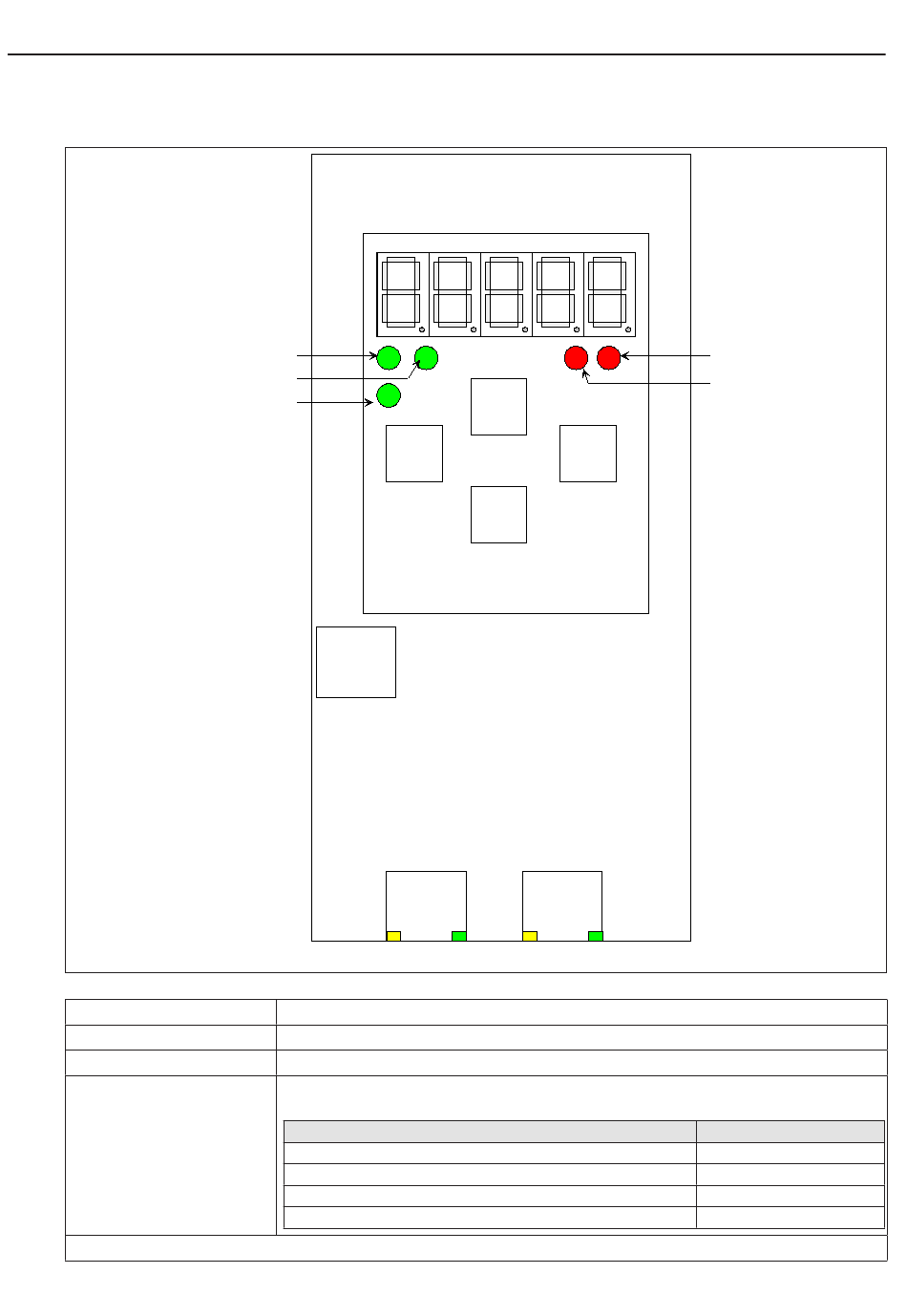

2. Hardware
EtherCAT-Mailbox aktiv
Prozessdaten aktiv
Component
EtherCAT Mailbox active: Flashes as long as a mailbox command is carried out.
ProcessData active:
EtherCAT RUN
GB - 6
EtherCAT-RUN
X6B
Diagnose
Description
Flashes as long as there is process data communication from and to the inverter.
Green RUN-Led according to the specification of ‚RUN Indicator' in the EtherCAT
specification ([1]):
Flashing
Constantly OFF
Cyclically blinking with ON(200ms) / OFF(200ms)
Single flash with ON(200ms) / OFF(1000ms)
Constantly ON
START
ENTER
STOP
EtherCAT
IN OUT
X6C X6D
Link
Link Speed
FU-Error
EtherCAT-Error
FUNC
Speed
Actual condition
INIT
PRE-OPERATIONAL
SAFE-OPERATIONAL
OPERATIONAL
further on next side
