4 Maintenance and Service

Protect the PDB48xC-AC from adverse weather conditions. The PDB48xC-AC is not water res-
istant.
Attention
To avoid damage to the instrument, do not expose it to spray, liquids or solvents!
The unit does not need a regular maintenance by the user. It does not contain any modules
and/or components that could be repaired by the user himself. If a malfunction occurs, please
contact Thorlabs for return instructions.
Do not remove covers!
To clean the PDB48xC-AC series housing, use a mild detergent and damp cloth. Do not soak
the unit in water or use solvent based cleaners.
Cleaning of the fiber connectors
When mounting the front adapter, take care for it's correct orientation: The cylindrical key of the
front part must match with it's counterpart in the PDB48xC-AC's housing.
Warning
The screws (3), fixing the base of the switchable adapter to the housing, must not be re-
moved!
10
The photodiodes of the PDB48xC-AC
are pigtailed with single mode fiber
and connectorized by FC/APC con-
nectors. Clean and dust-free surfaces
of the ferrule tips are essential to
minimize coupling losses. If the con-
nectors are suspected to be soiled,
the ferrule tips can be cleaned this
way:

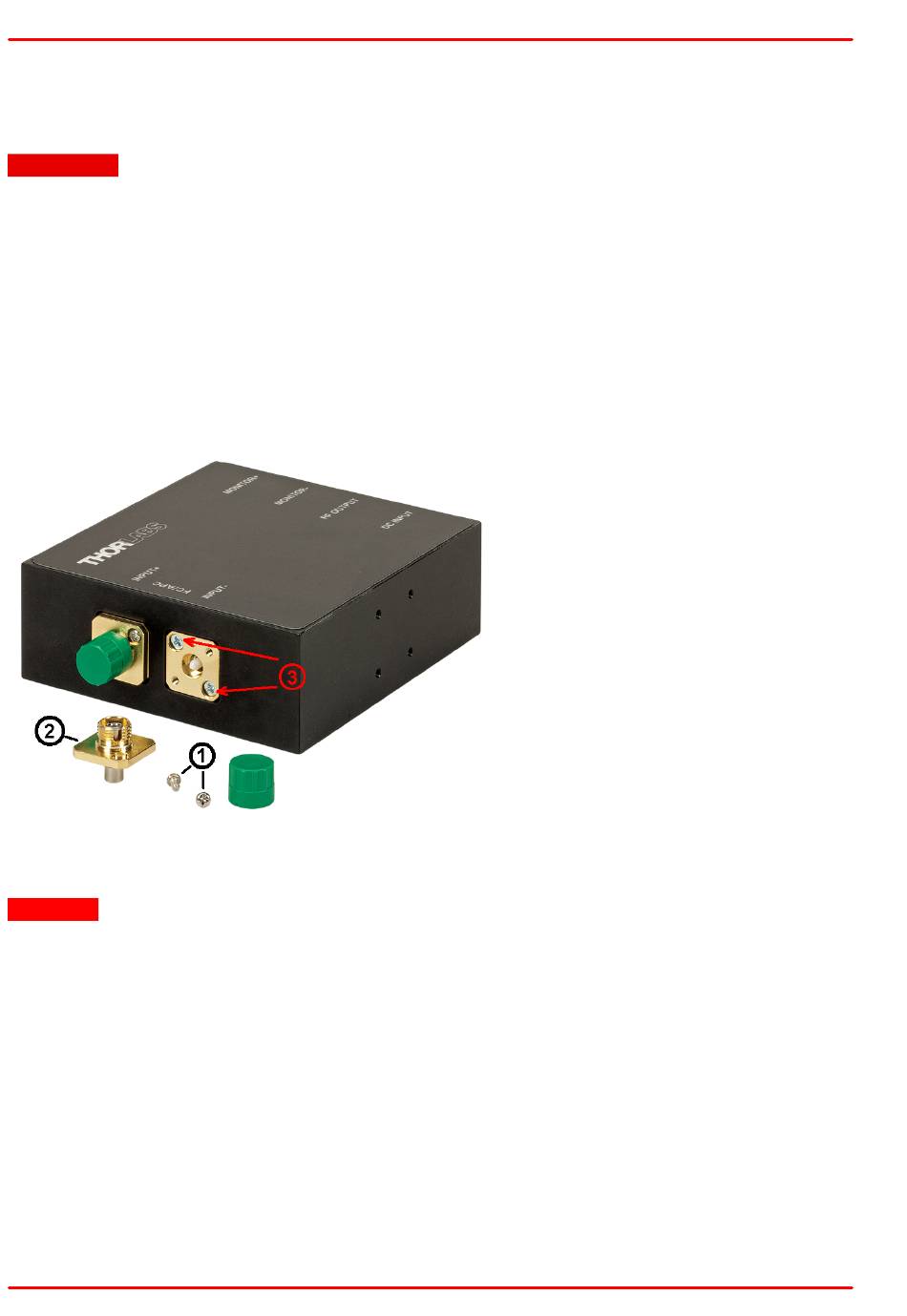

Remove the two screws (1), fixing the
front part (2) of the switchable ad-
apter. Detach the front part (2) an
clean the ferrule tip using a lint-free
tissue damped with alcohol or pro-
panol. The ferrule receptacle of the
front part (2) can be cleaned from
dust using compressed air (duster).
