Summary of Contents for THORLABS PDP90A
- Page 1 PDP90A Position Sensing Detector User Guide...
-
Page 2: Table Of Contents
Calculating the Position ............... 4 2.2.3. Position Resolution ..............5 Chapter 3 Specifications ..............7 Chapter 4 Regulatory ................. 9 Chapter 5 Thorlabs Worldwide Contacts........10 Page 1 Rev G, May 11, 2017... -
Page 3: Chapter 1 Warning Symbol Definitions
Lateral Effect Position Sensor Chapter 1: Warning Symbol Definitions Chapter 1 Warning Symbol Definitions Below is a list of warning symbols you may encounter in this manual or on your device. Symbol Description Direct Current Alternating Current Both Direct and Alternating Current Earth Ground Terminal Protective Conductor Terminal Frame or Chassis Terminal... -
Page 4: Chapter 2 Description

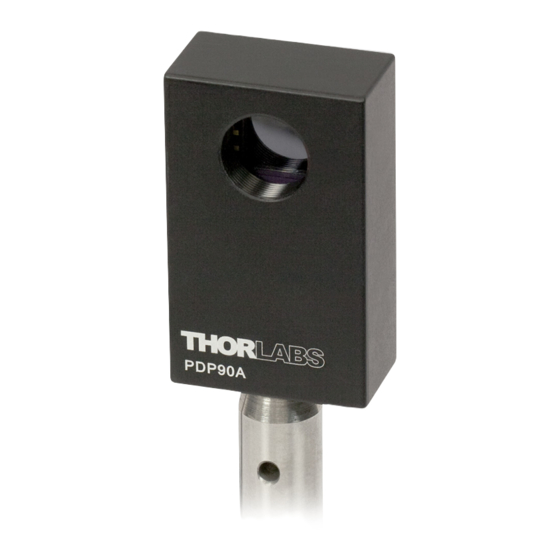

Lateral Effect Position Sensor Chapter 2 Description The PDP90A is a two-dimensional, tetra-lateral position sensing detector (PSD) that provides X and Y-axis positional information. It is designed to work with Thorlabs’ KPA101 K-Cube Auto-Aligner. This sensor can be used for general alignment purposes, as well as precise position measurements. -
Page 5: Overview
X and Y from the four electrodes when incident light is applied to its surface. In addition, the PDP90A is a continuous position-sensing detector, which derives position by dividing photo-generated electrons within their substrate, rather than by profiling the intensity distribution on the surface as with segmented detectors. -
Page 6: Position Resolution
4 V. Outputs above 4 V will saturate the system, causing unreliable readings. The software will indicate the voltage level on a slide bar, and is available for download online at thorlabs.com. To reach the download page go to Services, Downloads, Detectors, and then Position Sensing Detectors and click on the link. - Page 7 Lateral Effect Position Sensor Chapter 2: Description Low power levels should be used for the position sensor. For the PDP90A, the max photocurrent is 40 µA. Using the photosensitivity curve below (Figure 2), the system saturation power can be calculated as: 40 μ...
-
Page 8: Chapter 3 Specifications
Dimensions (50.8 mm x 30.5 mm x 16.5 mm) Mounting Thread 8-32, 0.25" Thread Depth (Min) External 8-32 to Internal M4 Included Metric Adapter (Thorlabs Item # AS4M8E) Cable Length 5' (1.5 m) (Typ.) Connector Plug Hirose HR10A-7P-6P Mating Receptacle... - Page 9 Lateral Effect Position Sensor Chapter 4: Drawing Chapter 4 Drawing 30.5 mm Cable (1.20") 5' Long 15.2 mm (0.60") Ø0.50" 9.0 mm (0.35") Clear Aperture SM05-Threaded 9.0 mm 50.8 mm (0.35") (2.00") Detail A Scale 2:1 39.4 mm (1.55") #8-32 x 0.25" Mounting Hole 16.5 mm A #8-32 to M4 Mounting (0.65")
-
Page 10: Chapter 4 Regulatory
5.1. Waste Treatment is Your Own Responsibility If you do not return an “end of life" unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site. -
Page 11: Chapter 5 Thorlabs Worldwide Contacts
Chapter 6 Thorlabs Worldwide Contacts USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. 56 Sparta Avenue 1 Saint Thomas Place Newton, NJ 07860 Ely CB7 4EX Great Britain Tel: 973-300-3000 Tel: +44 (0) 1353-654440 Fax: 973-300-3600 Fax: +44 (0) 1353-654444 www.thorlabs.com... - Page 12 www.thorlabs.com...
