Sunny SF-B901 User Manual

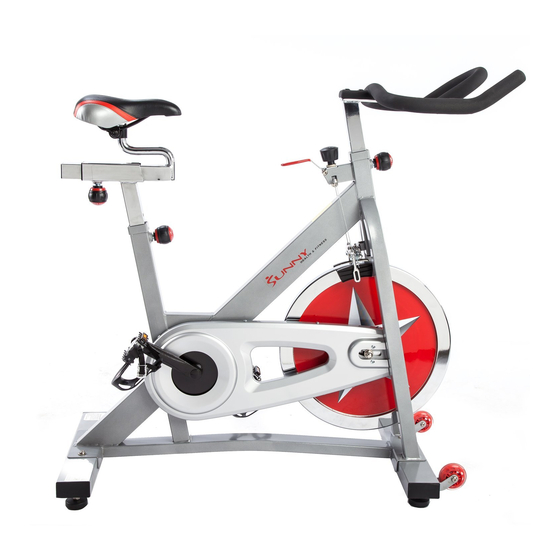

Pro indoor cycling bike
Hide thumbs Also See for SF-B901:

Advertisement

Table of Contents

See also: User Manual
PRO INDOOR CYCLING BIKE
SF-B901
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US:
support@sunnyhealthfitness.com
or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B901 and is the answer not in the manual?

Questions and answers

Related Manuals for Sunny SF-B901

Summary of Contents for Sunny SF-B901

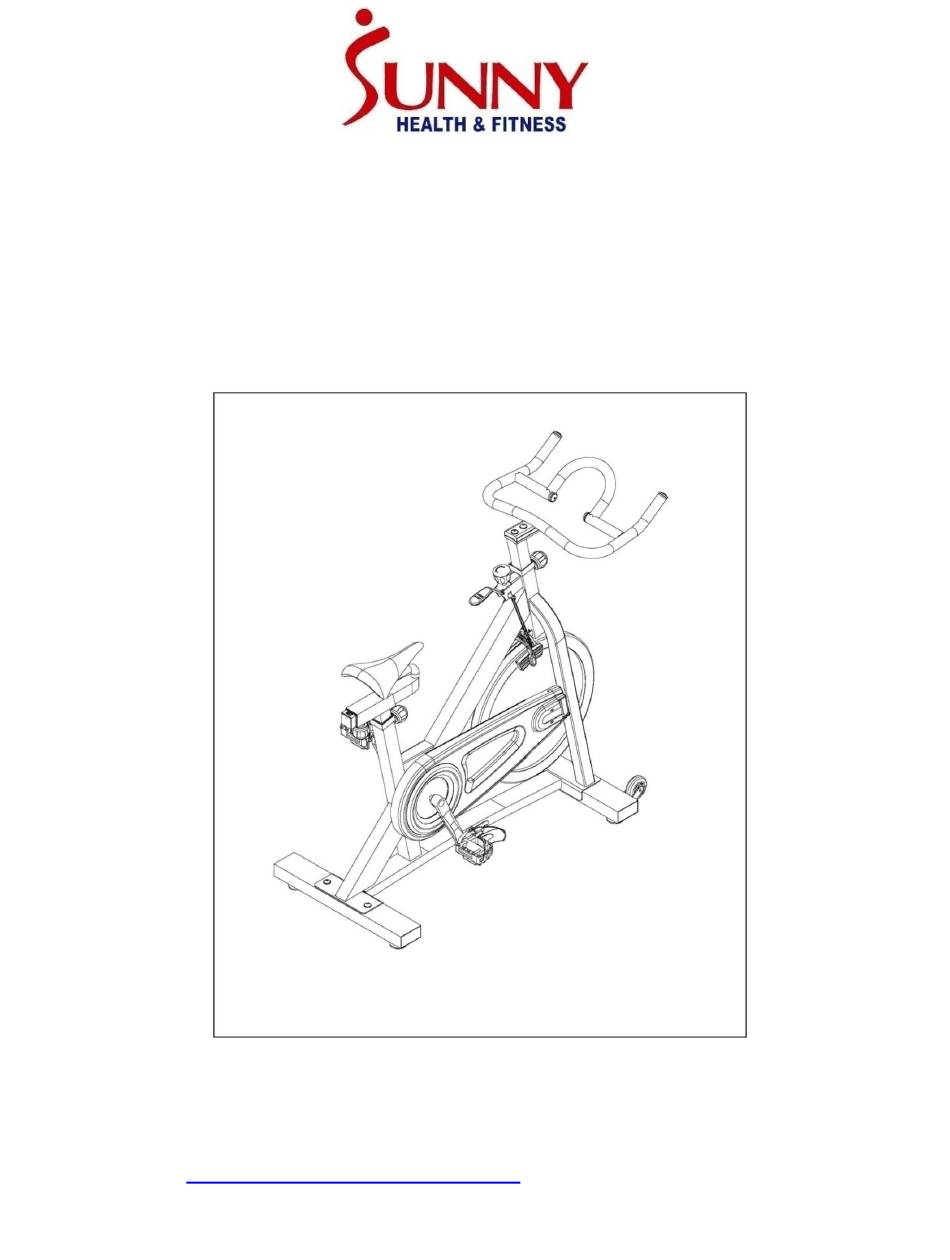

  • Page 1 PRO INDOOR CYCLING BIKE SF-B901 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 4: Hardware Package

    HARDWARE PACKAGE #33 (d10*Φ20*2.0) 4PCS #34 (M10*25*S6) 4PCS #67 (d10*Φ20*2) 2PCS #66 (M10*25*S6) 2PCS #76 (S=6) 1PC #75 (S=13、15) 1PC #78 (S=8、14、22) 1PC #77 (S=14、15、17) 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ...

  • Page 5: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Brake Pad Seat Post Clamp Brake Holder Φ11*Φ25*4 Seat Slider Flat Washer 6001-2RZ Handlebar Post Bearing 6004-2RS Handlebar Bearing M12*1*H19.5*S19 608ZZ Cap Nut Bearing Bi-Direction Small Rear Stabilizer Chain Wheel Front Stabilizer C-Shape Buckle M10*H7*S17...

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: Use Allen Wrench (No. 76) to unscrew 4 Inner Hexagon Flat Round Head Screws (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: IMPORTANT! Read instructions carefully, failure to do so may cause permanent damage to your bike.
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: NOTE: In order to properly tighten the seat, it is important to note that you will need two open...
  • Page 9 ADJUSTMENTS & USAGE GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride during use, you must ensure that the stability of the bike is correct. If during use you notice that the bike is unbalanced you can adjust the base levelers located beneath the front and rear bases.
  • Page 10 ADJUSTING THE SEAT The seat of this bike is fully adjustable as it moves Up, Down, Fore (forward), Aft (backward). To adjust the height of the Seat Post (No. 2), loosen and pull the [seat post] Pop Pin (No. 23) outward, then raise or lower the seat to the desired height.

  • Page 11: Instructions On Changing Brake Pad

    INSTRUCTIONS ON CHANGING BRAKE PAD STEP 1: STEP 6: Remove Nylon Nut (No. Insert the new Right which under Brake Pad Holder (No. Tension Knob (No. 11) 65) into the Right Clamp with Wrench (No. 75) Brake Assembly (No. first, and then adjust the 64).

  • Page 12: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check all hardware is secure, such as: water the equipment: seat, frame, handlebars. Pay bottle holder, flywheel nuts, belt/chain guard special attention to the seat post, handlebar bolts, brake caliper lock nuts and brake...
