ACPL-336J Reference Manual
Fuji Electric Small PIM Module (M728/M732) Evaluation Board
Chapter 2: Description of the Evaluation Board
2.1 Board Description

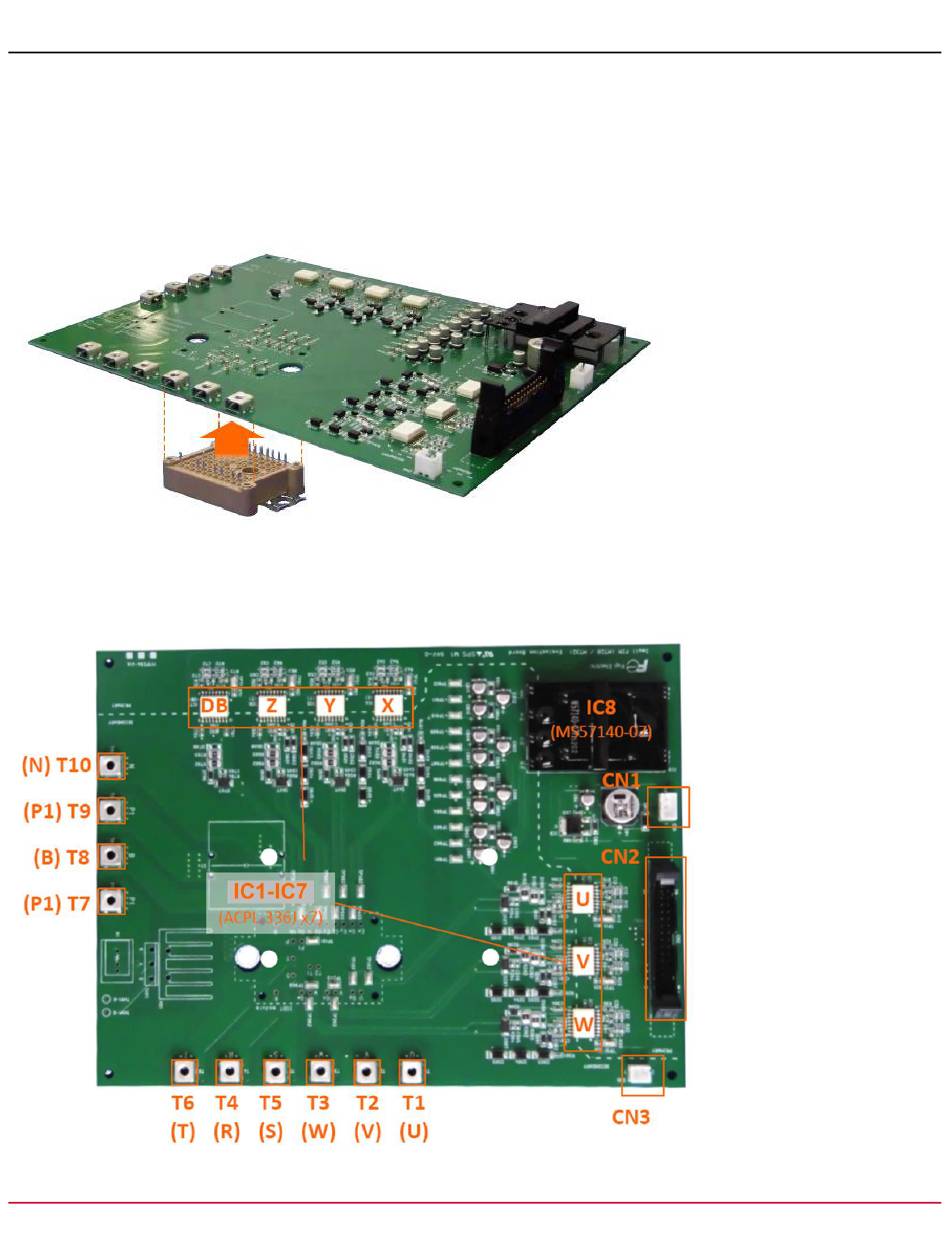

Figure 3: Evaluation Board for Small PIM Module (M728/M732)
Figure 4
and
Figure 5
show the layout of the evaluation board and the main circuit diagram.
Figure 4: Evaluation Board Layout
Broadcom
ACPL-336J-RM100
6
