Overview
1
Overview
This document provides a simple guide to setting up the GT1020 or GT1030 Graphic Operation
Terminal (GOT) hardware and firmware for use with an FR-S500 Inverter.
2
Hardware Introduction
The GT1020 and GT1030 are monochrome, 3-color backlight, two communication channel
GOT1000 Series touch panel interfaces used for capturing user input to a system.
It should be noted that not all products from the GT1020 or GT1030 range are compatible with
a FREQROL inverter connection. Compatible products are identified in the table below
Model
GT1020
GT1030
Tab. 1:
A
B
GOT1000
Size
-LBD
3.7"
160 x 64 dot
-LBDW
-LBD
4.5"
288 x 96 dot
-LBDW
Specifications of the operator Terminals
C
D
Backlight Colors
Comm. IF
Green/Orange/Red
White/Pink/Red
RS422
Green/Orange/Red
White/Pink/Red

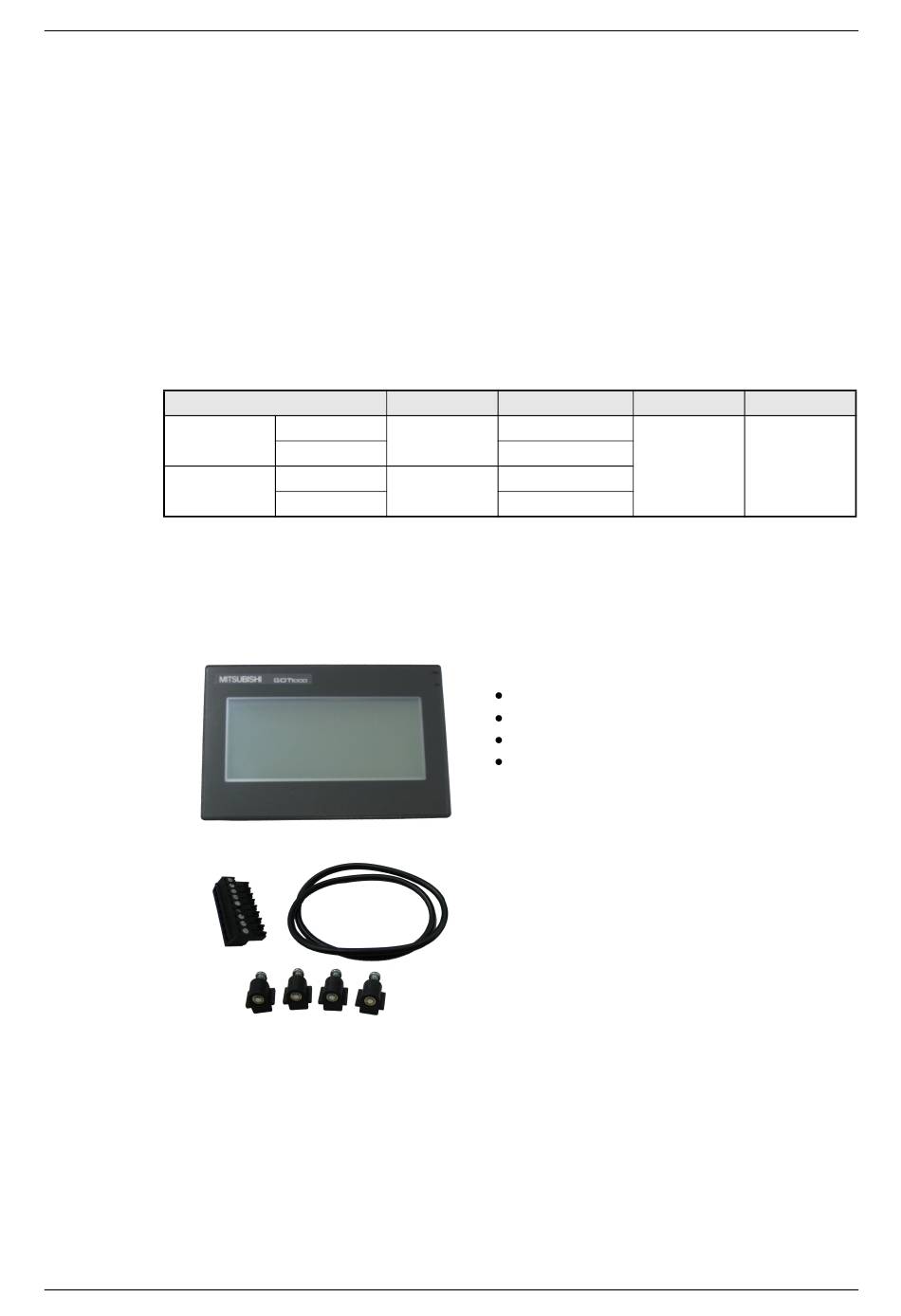

For new GT1020 and GT1030 units,
included in the box should be the following
items:
(A) GT1020/GT1030
(B) 1 PLC Communication Connector
(C) 1 rubber Panel Mounting Packing
(D) 4 Panel Mounting Brackets
Start-up Guide
Power
24 V DC
1
