Read these operating instructions before using this
instrument.
This equipment should only be used by suitably trained
personnel.
The Solar Survey is intended for use in a dry environment
only.
Check the Solar Survey PV100 and all associated cables and
leads before operating the equipment. Do not use if there are
signs of damage.
Only use the connecting leads & temperature probes supplied
with the Solar Survey.
Use 2x 1.5V AA Cells - these may be Alkaline or rechargeable
NiCd or NiMH.
FCC
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following 2 conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Caution: Changes or modifications to the Solar Survey 200R
not expressly approved by Seaward could void your authority
to operate it.
396A558 rev C June 2012
Advertisement
Table of Contents
Related Manuals for Seaward Solar Survey 200R
Summary of Contents for Seaward Solar Survey 200R
- Page 1 (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications to the Solar Survey 200R not expressly approved by Seaward could void your authority to operate it.

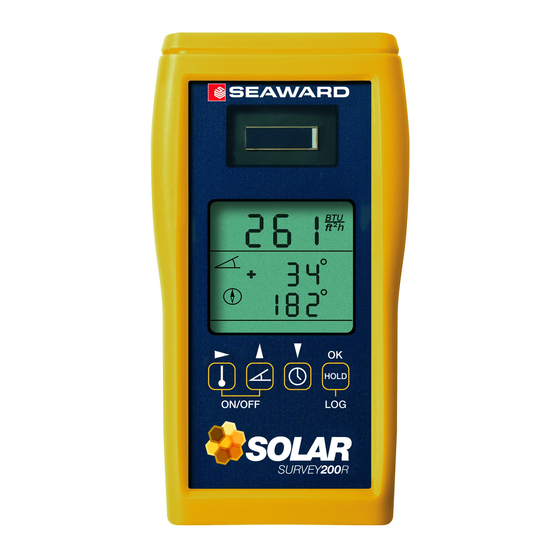

- Page 2 Overview Link Socket to Other Solar Products Temperature Probe Socket USB Socket (Survey 200 only) S E A W A R D PV Sensor Multi-mode LCD 'HOLD' Indicator Function Keys HOLD ON/OFF Press 'HOLD' to freeze (Survey 200 only) values on display SOLAR Battery Holder on Press again to...
- Page 3 Irradiance with Compass and Tilt Measurement S E A W A R D Tilt Angle Place meter against surface to be measured or use optical sights to align with roof slope Magnetic Bearing Point meter in direction required Press to select HOLD ON/OFF Compass/Tilt Mode...
- Page 4 Irradiance and Temperature Measurement Panel Sensor Ambient Sensor S E A W A R D Irradiance Panel Temperature Ambient Temperature Press to select HOLD Temperature Mode ON/OFF SOLAR SURVEY200 To Change Display Units Press >5s to select temperature or irradiance units (flashing) to toggle units ( C or F), (W/m or BTU/hr/ft ) Press OK to save...
- Page 5 Time & Date (Survey 200 only) S E A W A R D 24 Hour Clock (hh:mm) 14:28 Date (dd/mm) 24/10 Year 2011 Press to select HOLD ON/OFF Time/Date Mode SOLAR SURVEY200 To set Time & Date Press >5s - display will flash hours value to select date/time fields (flashing) &...
- Page 6 Datalogging (Survey 200 only) Memory Used Battery Voltage 4500 Memory Left Log Interval Alternating Log Status Display Log Setup Press HOLD >5s to display Log Status Press HOLD >5s to display Log Interval in minutes & to increase/decrease value Press to display Data Store Mode &...
