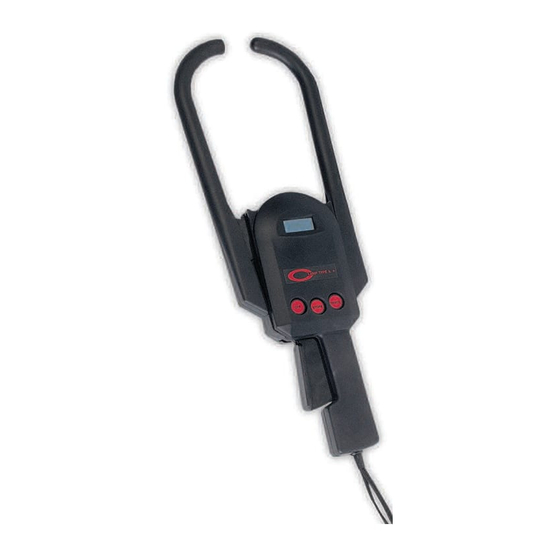

- Page 1 TYPE L PLUS Large Jaw Current Clamp Meter Operating Instructions Bracken Hill, South West Industrial Estate, Peterlee, Co. Durham. SR8 2SW. England. Tel: +44 (0)191 586 3511 Fax: +44 (0)191 586 0227 www.seaward.co.uk sales@seaward.co.uk service@seaward.co.uk...
- Page 2 TYPE L PLUS Operating Instructions Limited Warranty & Limitation of Liability SEAWARD Electronic Limited guarantees this product for a period of 1 year. The period of warranty will be effective at the day of delivery. © Copyright 2003 All rights reserved. Nothing from this edition may be...
- Page 3 TYPE L PLUS Operating Instructions Disposal of Old Product This product has been designed and manufactured with high quality materials and components that can be recycled and reused. When the crossed out wheelie bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
-
Page 4: Table Of Contents
Operating Instructions Operating Instructions Type L Plus Current Clamp Meter The Seaward Type L Plus current clamp meter is a precision instrument designed to measure AC currents flowing through conductors that are placed within the jaws of the instrument. The technology utilised in the Type L Plus provides a number... -
Page 5: Safety Notes
TYPE L PLUS Operating Instructions Safety Notes The Type L Plus current clamp meter has left the factory in a perfectly safe state. To maintain this state and ensure safe operation of the unit, all notes and warnings in these instructions must be observed at all times. -
Page 6: Description
TYPE L PLUS Operating Instructions Description The Type L Plus current clamp meter is comprised of the following features:- The movable jaws allow the current flowing through a conductor to be measured using precision air core current sensor technology to accurately measure conductor current flow, in the range 0 –... -
Page 7: Electrical Specifications
9VDC Alkaline MN1604 6LR61 Operation Track Mode 5.1.1 Press and release the Track button on the Type L Plus control panel. The LCD display will indicate three zeroes, signifying no current flow detected. If the BAT symbol appears in the top left corner of the LCD display then the battery within the unit must be replaced (see section 6). -
Page 8: Battery Installation And Replacement
TYPE L PLUS Operating Instructions 5.1.4 Press the Off button on the Type L Plus control panel to switch the instrument off. Store Mode 5.2.1 Press and release the Store button on the Type L Plus control panel to record the peak current flow through a conductor over any length of time period. -
Page 9: Maintenance
Type L Plus must be appropriately secured to prevent any further use. Cleaning Clean the external case of the Type L Plus with a clean dry cloth. Never apply lubricants to the pivot action of the Type L Plus. - Page 10 275A550 Rev 2...
