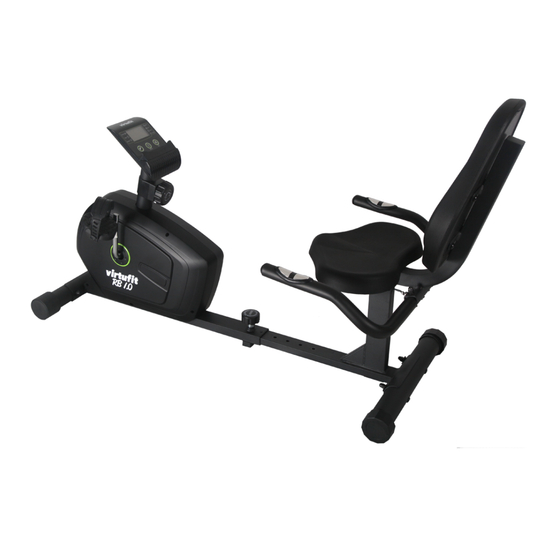

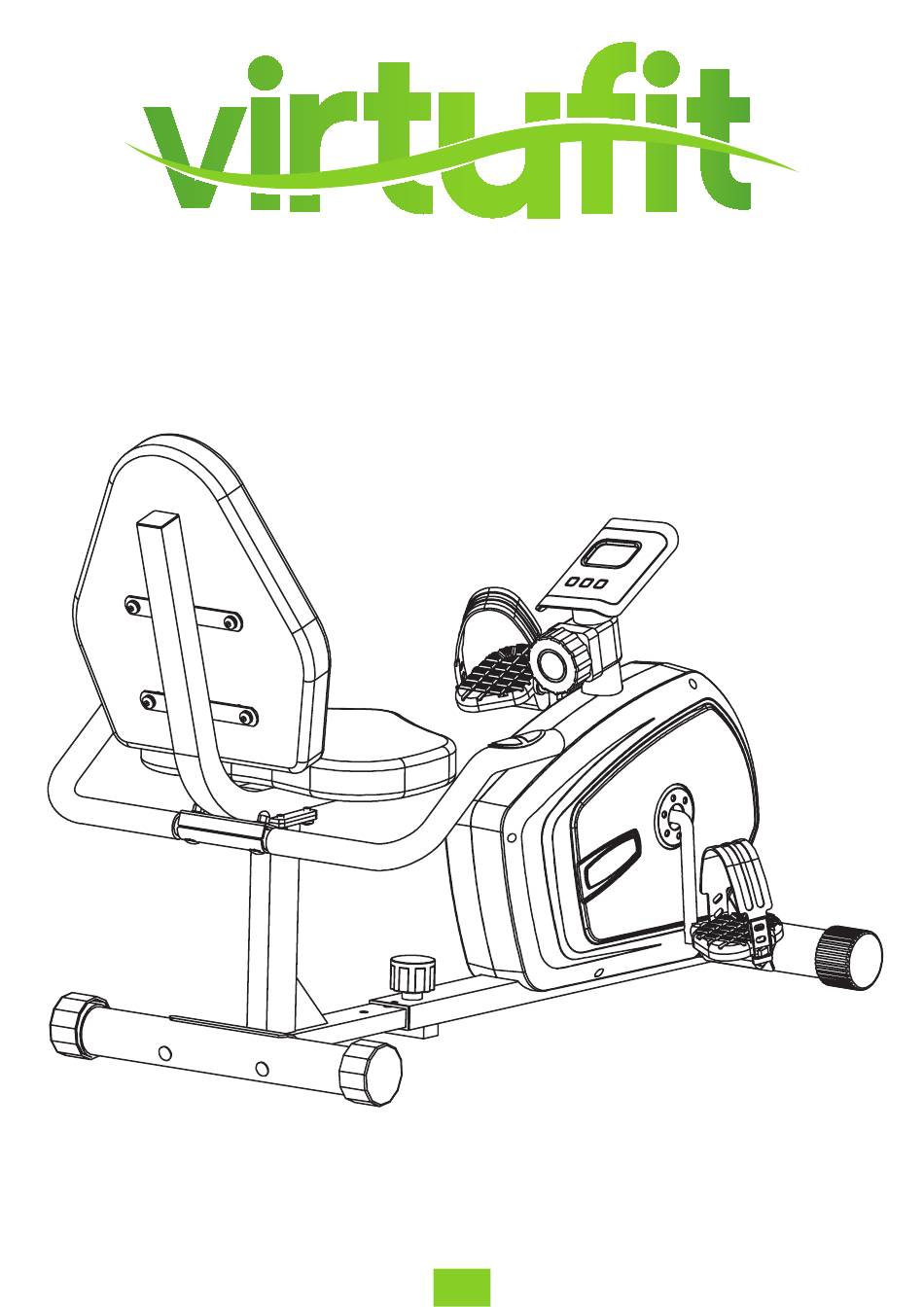

- Page 1 RB 1.0 Recumbent Bike User manual...
- Page 2 INDEX Safety instruction Assembly instruction Maintenance of the recumbent bike Computer instruction 9-11 Training instruction Exploded drawing Parts list VirtuFit RB 1.0 Recumbent Bike...
-
Page 3: Safety Instruction
IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. VIRTUFIT TAKES NO RESPONSIBILITY FOR INJURIES OR MATERIAL DAMAGE CAUSED BY USING THIS PRODUCT. BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR OPERATE YOUR MACHINE. -
Page 4: Assembly Instruction
STEP 1 Fix the front stabilizer (8) & the rear stabilizer (6) respectively onto the front main frame (1) the rear main frame (2) with the carriage bolt (9), arc washer (10) and Acorn nut (11). VirtuFit RB 1.0 Recumbent Bike... - Page 5 (1) lock it to a suitable position with the knob nut(16) STEP 3 Fix the seat (25) & the backrest (24) onto the seat frame (3) with Inner hex screw (21) and flat washer (22) as shown. VirtuFit RB 1.0 Recumbent Bike...
- Page 6 Fix the seat frame (3) onto the rear main frame (2) with Inner hex screw (21) and flat washer (22). STEP 5 Connect extension wire (32) with the sensor wire (20), then fix the handlebar(4) on the seat frame(3) with Carriage bolt (17) flat washer(18) and acorn nut (11). VirtuFit RB 1.0 Recumbent Bike...
- Page 7 Connect the extension wire (33) and sensor wire (34) with the wires coming from the meter (28). And then fix the meter (28) on meter bracket of front main frame (1) with the cross screw (36) & flat washer (35). VirtuFit RB 1.0 Recumbent Bike...
-
Page 8: Problem Solutions
II. It may be that the sensors have become damp, dirty or greasy, clean them regularly. The console doesn’t work If the console isn’t working the batteries may be empty. Replace the batteries. Are there any other problems? Please contact your dealer. VirtuFit RB 1.0 Recumbent Bike... -
Page 9: Computer Instruction
4 minutes or you stop exercising. RESET By holding down the reset button for 3 seconds you can clear the settings. MODE Press the MODE button to select a desired func- tion. VirtuFit RB 1.0 Recumbent Bike... - Page 10 To measure your heart rate, place your hands on the two contact surfaces. The most accurate heart rate is displayed after 30 seconds. This measurement can not be taken as a basis for medical treatment. VirtuFit RB 1.0 Recumbent Bike...
- Page 11 Press SET to increase the target value. If you s et the calories target, it starts counting automatically. - Press RESET shortly to reset the calorie target. Press MODE to set the next optional target. VirtuFit RB 1.0 Recumbent Bike...
-
Page 12: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit RB 1.0 Recumbent Bike... -
Page 13: Exploded Drawing
EXPLODED DRAWING VirtuFit RB 1.0 Recumbent Bike... -
Page 14: Parts List
Foam grip Pulse wire Inner hex screw Flat washer Square end cap Backrest Seat End cap Tension controller Meter Tension cover Flat washer Cross screw Extension wire Extension wire Sensor wire Flat washer Cross tapping screw VirtuFit RB 1.0 Recumbent Bike... - Page 15 For questions or missing parts please contact your dealer. VirtuFit RB 1.0 Recumbent Bike...
