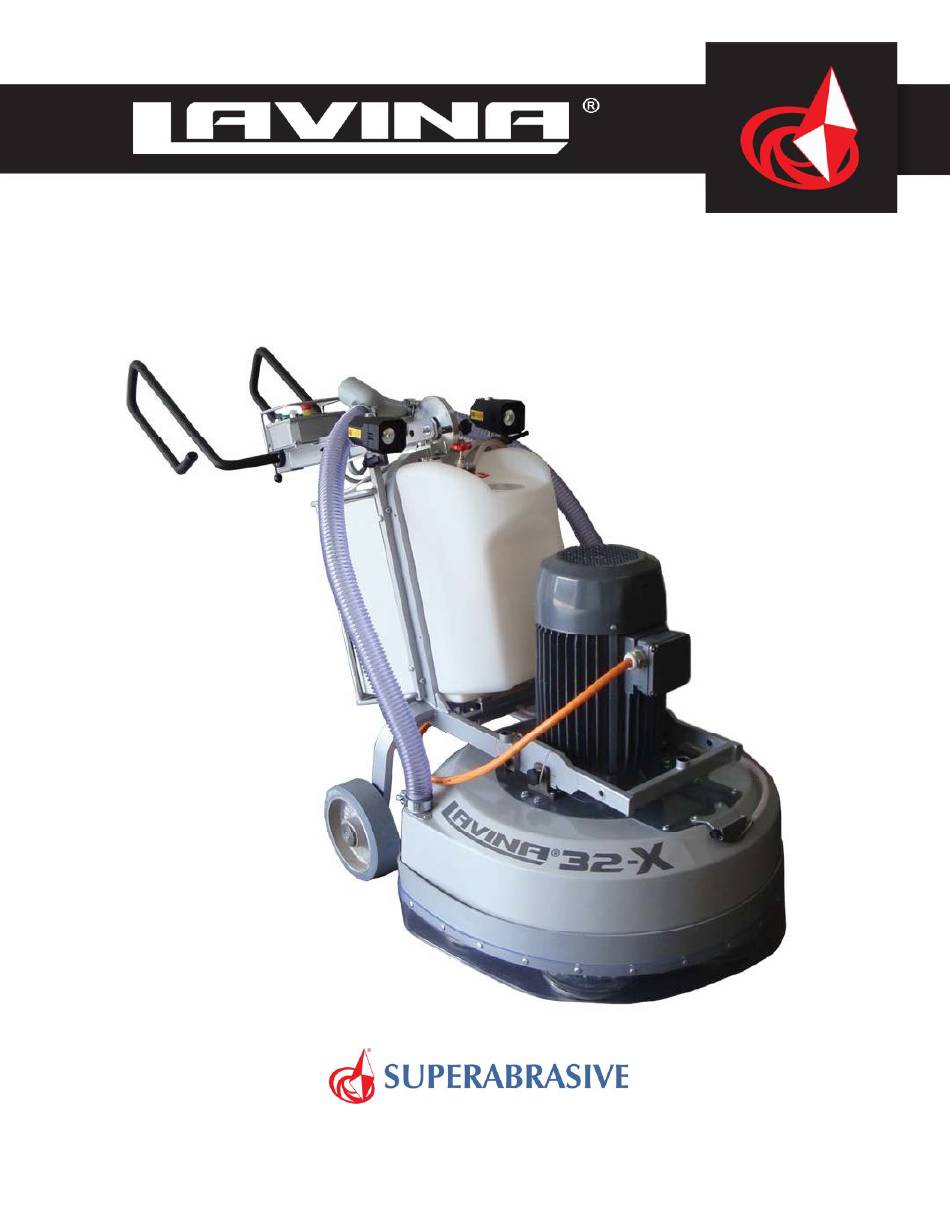

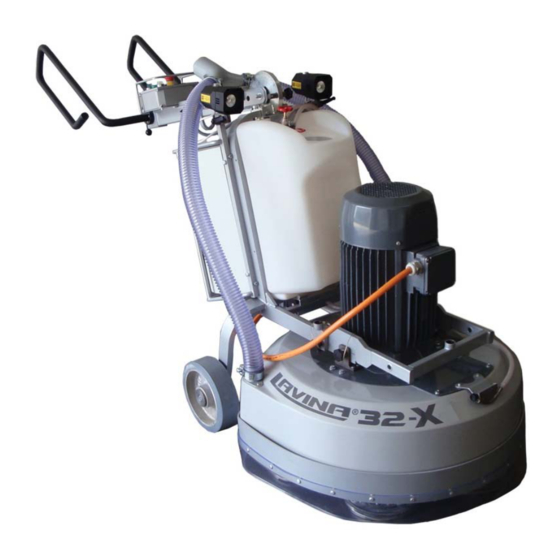

LAVINA
®
32-X/32-X-HV
User Manual
Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lavina 32-X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Superabrasive Lavina 32-X

Summary of Contents for Superabrasive Lavina 32-X

  • Page 1 LAVINA ® 32-X/32-X-HV User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...

  • Page 2: Section 1: Customer Information

    Section 1: Customer Information Customer name Address City State and Zip Code Phone # Email Section 2: Machine Information LAVINA model Serial # Purchase Date Purchased From (distributor, dealer) Email: warranty@superabrasive.us / Fax: 706-658-0357 Superabrasive Inc., 9411 Jackson Trail Rd, Hoschton, GA 30548...

  • Page 3: Warranty And Returns

    WARRANTY POLICY FOR LAVINA 32-X/32-X-HV MACHINES A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. You can either mail a hard copy of the warranty card or submit it electronically - see page 2.
  • Page 4 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017...

  • Page 5: General Information

    Today, Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently.
  • Page 6 Weight (needed for transportation purposes); production year and serial number (needed for maintenance purposes). For customer assistance and technical support call your local distributor or call Superabrasive Inc. at 1-800-987-8403 or visit us at: www.superabrasive.com, where you can download a copy of this manual.
  • Page 7 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Possess risks of fire A first-time operator must always read the manual and pay Feature inclement conditions. attention to all safety instructions. Possess electromagnetic radiation. All electric connections and cables must be inspected for potential damages.

  • Page 8: Handling And Transportation

    3. HANDLING AND TRANSPORTATION POSITIONING THE HANDLE Figure 3.1 Figure 3.2 Figure 3.3 USING THE STEERING BRACKET By loosening the swivel bolt (Fig. 3.1-2), one can turn the steering bracket (Fig. 3.1-3) to a new position. To turn the steering bracket down (Fig.
  • Page 9 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 SPLITTING THE CARRIAGE FROM THE MAIN HEAD Unplug the motor cable plug from the control box (Fig. 3.12) and pull the water hose out of the connection at the main head (Fig. 3.13) (Fig.

  • Page 10: Operation

    6 rubber buffers, which will alter its elasticity (3 will be more flexible than 6). You can make the change after dismounting the holder as per the instructions in TROUBLESHOOTING In the Lavina 32-X, the holder is initially mounted with 6 buffers. Figure 4.5 Figure 4.6...

  • Page 11: Control Board

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 CONTROL BOARD 1 Emergency button used to stop the motor in case of emergency 2 Digital Tachometer indicates the revolution per minute of the grinding plates (not the revolution per minute of the entire unit).

  • Page 12: Tools And Accessories

    32-X/32-X-HV 3/2017 5. TOOLS AND ACCESSORIES WEIGHTS Superabrasive offers additional weights used to increase the productivity of the machine (Fig.5.1). Each additional weight weighs about 64 lbs or 29kg. Each individual application, type and condition of surface, power capacity of the outlet, etc. will determine the number of weights you can use without tripping a breaker.

  • Page 13: Popular Tools

    – scrubbers, buffers, burnishers. No wax or chemicals needed, they are a very environmentally friendlysolution for maintaining floors. Use Only Superabrasive’s Recommended Tools. For More Tooling Options, visit ww.superabrasive.com...

  • Page 14: Maintenance And Inspection

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 7. MAINTENANCE AND INSPECTION CLEANING Keep your machine clean. Cleaning the machine on a regular basis will help detect and solve potential problems before they cause damage to the machine. Most importantly, check and clean the tool plate connections, power cord and plugs, vacuum hoses and water tank.

  • Page 15: Electrical Schemes

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 ELECTRICAL SCHEMES LAVINA®32X ELECTRICAL SCHEMES WITH YASKAWA INVERTER 200-240 VOLT ® LAVINA 32X ELECTRICAL SCHEMES YASKAWACONNECTION MAIN CIRCUIT TERMINALS The motor is connected in “Delta” (triangle) 230 Volt, reminder for the wire connection of the motor.
  • Page 16 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 ® LAVINA 32-X-HV ELECTRICAL SCHEMES WITH YASKAWA INVERTER 440-480 VOLT ® LAVINA 32X-HV ELECTRICAL SCHEMES YASKAWACONNECTION MAIN CIRCUIT TERMINALS The motor is connected in “Star” 380 Volt, reminder for the wire connection of the motor.

  • Page 17: Troubleshooting

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 8. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 8.1 REPLACING POWER CORD AND PLUGS When replacing the power cord or plugs, always use cords and plugs with the same specifications as the original ones.

  • Page 18: Disassembling And Mounting Tool Holder To Change Buffers And Elastic Element

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 8.3 DISASSEMBLING AND MOUNTING TOOL HOLDER TO CHANGE BUFFERS AND ELASTIC ELEMENT When the TOOL HOLDER is disassembled you can change defective parts – elastic element, buffers, etc. Lift the locking pin (Fig.8.3.1) to dismount the retaining washer (Fig.8.3.2). Take out the screws on the buffers and the nuts of the elastic element (Fig.8.3.3;Fig.8.3.4).
  • Page 19 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Fig.8.3.13 is a 3-d section view of the holder, showing its parts. The numbering is the same as in Spare parts. Figure 8.3.13 8.4 TENSIONING USED PLANETARY CHAIN Figure 8.4.1 Figure 8.4.3...
  • Page 20 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 8.5 MOUNTING AND TENSIONING A NEW PLANETARY CHAIN The planetary chain is replaced with new one when the step/drive of the chain tensioner is finished or there is a loss of integrity in the chain.

  • Page 21: Tensioning And Replacing The Belts

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 8.6 TENSIONING AND REPLACING THE BELTS Figure 8.6.1 Figure 8.6.2 Figure 8.6.3 The transmission of the machine has two timing belts. To change the belts, you have to remove all holders and dismount their adaptors.

  • Page 22: Motor Connection

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 8.7 REPLACING THE PLANETARY DRIVING GEAR AND CENTRAL GEAR Unscrew the bolt and remove the old gear. Put grease in the safety cap (Fig.8.7.2-3) of the new gear and mount to the shaft.
  • Page 23 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 8.11 FAULT DIAGNOSIS INVERTER YASKAWA V1000 Pages are referring to Yaskawa Electric SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual...
  • Page 24 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017...

  • Page 25: Manufacturer's Contacts

    3/2017 9. DISPOSAL If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local distributor, where a professional disposal complying with the environment laws and directives is guaranteed. 10. MANUFACTURER’S CONTACTS If you need to contact Superabrasive Inc.

  • Page 26: Spare Parts

    ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 11. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS Item No. Description Pcs. L32X-10.00.00 Main Head L32X-20.00.00 Carriage L32-00.00.00.00.02-K Bolt with Nut Assembly L32-00.00.00.00.02 Bolt M12DIN127B Spring Washer M12DIN934 L25SPS-07.03.00.00 Pin Assembly L32X-03.00.00...
  • Page 27 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. L32X-18.00.00 Bottom Cover Ass. D4x2-2500 Seal D6X2 O-Ring M6X16DIN6921 Bolt DIN7991 Screw L25LS-14.00.03 Outer Cover 110x90x8.5 Felt Ring A42.03.00 Adaptor TWVA00800 V-Ring Type A L32S-10.02.02 Flange Item No.
  • Page 28 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. L32X-19.00.00 Cover Kit L32X-19.10.00 Top Cover A29.30.00 Spray Unit 1.2.1 H766-21 Knob Bolt M5X12DIN6921 Bolt M6X16DIN6921 Bolt L32X-19.30.01 Cover 1 M5DIN985 L32X-19.20.00 Water Fitting M5DIN934 M5DIN127B Spring Washer 1.10...
  • Page 29 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. L32X-11.00.06 Disc L32X-14.00.00 Pulley Top Belt L32X-13.00.00 Driving Pulley Unit L32X-13.30.00-K Driving chainring L32X-13.00.25 Security washer M8X55DIN933 Bolt DIN6885A5x5x30 DIN6885A6x6x36 L32X-12.00.00 Pulley Bottom Belt L32X-17.00.00 Planetary Tensioning Unit L32X-17.21.00-K...
  • Page 30 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. L32X-02.01.00 Ring L32X-02.00.02 Guard L32X-02.00.05 PVC Sheet M4DIN9021A Washer D4X10DIN7337LF12 Rivet D4X16DIN7337 Rivet Item No. Description Pcs. A41.10.00 Quick Change Assembly A31.12.00 Key lock Set A41.11.00 Quick Change plate A41.12.00...
  • Page 31 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. Item No. Description Pcs. L32X-21.00.00 Frame M5DIN127B Spring Washer L32-02.01.00.00-01 Wheel M5DIN934 L32D.20.00.03 Wheel Cap L32D.22.00.00 Handle Positioner M10X16DIN7991 Screw L32-02.00.00.00.02 L32MX-20.01.00 Water Connection M8DIN9021A Washer M20x1.5DIN439B...
  • Page 32 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. L32B-02.03.00.00.01-01 Sprocket L32C.02.03.02.00.00 Left Bracket L32C.02.03.03.00.00 Right Bracket L32C.23.00.06 Screw GN212.3-28-M12-E Swivel Bolt M12DIN125A Washer L32B-02.03.00.00.02 Spring L32C.23.00.21 Housing BO751-107-25M08 Knob L32-02.03.00.00.01 Washer L32-02.03.00.00.02 Teflon Washer...
  • Page 33 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. Item No. Description Pcs. L20NS-30.30.00 Lamp Unit Incl. Cable L32S-30.10.00 Metal box L20NS-30.10.01 Cable Gland L20NS-30.40.00 Water Pump with Cable L32SHV-30.30.00 Cable with Connector and Plug L32S-30.19.00...
  • Page 34 ® Superabrasive Owner’s Manual Original Language – Lavina 32-X/32-X-HV 3/2017 Item No. Description Pcs. Item No. Description Pcs. L20NS-30.30.00 Lamp Unit Incl. Cable L32SHV -30.10.00 Metal box L20NS-30.10.01 Cable Gland L20NS-30.40.00 Water Pump with Cable L32SHV-30.30.00 Cable with Connector and Plug L32SHV-30.19.00...
