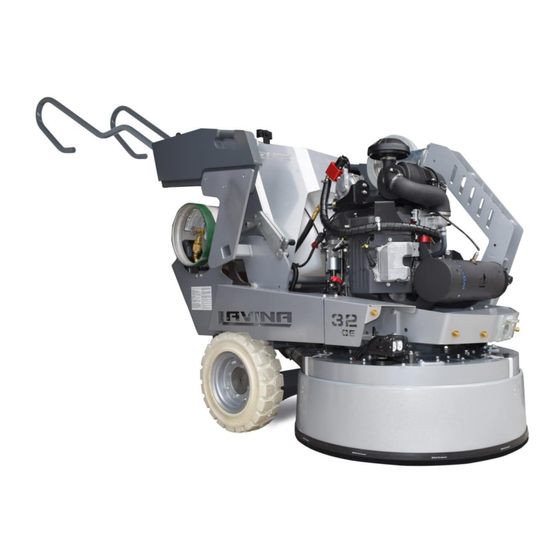

- Page 1 LAVINA ELITE L3213GEB User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...
- Page 2 ® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022...
-
Page 3: Warranty And Returns
Е MACHINES WARRANTY POLICY FOR LAVINA A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. You can either mail a hard copy of the warranty card or submit it electronically - see page 2. -
Page 4: Table Of Contents
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 WARRANTY AND RETURNS ..............3 Options Menu ..................17 1. GENERAL INFORMATION ..............5 Safety Information ................. 18 MANUFACTURER ..................5 4.6 STARTING THE MACHINE ..............18 GENERAL DESCRIPTION ................5 4.7 OPERATING THE MACHINE .............. -
Page 5: General Information
Today, Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently. -
Page 6: Environmental Conditions
The data on the label provides the correct voltage, kW and RPM (needed for operational purposes); Weight (needed for transportation purposes); production year and serial number (needed for maintenance purposes). CUSTOMER SERVICE For customer assistance and technical support call your local distributor or call Superabrasive Inc. at 1-800-987-8403 or visit us at www.superabrasive.com... -
Page 7: Safety Istructions
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 2. SAFETY ISTRUCTIONS RECOMMENDED USE Training Risks due to lack of operational training ® Lavina 32GE machine designed NOTE: In order to reduce all consequences of the above- manufactured to grind and polish concrete, terrazzo and mentioned risks, we advise that machine operators will natural stone floors. -
Page 8: Local Agencies And
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 Because propane is odorized, it is easily detected at levels of The Canadian Gas Association (CGA) has set a limit of just a few parts per million, which is much less than the 1500 ppm CO in exhaust flow. -
Page 9: After Work Is Completed
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 The water hose must move freely and must be damage-free. ENERAC 2000 COMBUSTION ANALYZER Check if the floor, you work on, is not too uneven. If this is ENERAC POCKET 60 the case, it may damage the machine. -
Page 10: Refuelling Cylinders
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 system and will freeze up if liquid propane is introduced to it. vapor could come in contact with an ignition source such It is necessary that special attention be paid to ensure that as a spark from a power tool or other appliance and create neither the liquid nor the vapor draw cylinders be overfilled. -
Page 11: Flipping The Machine Up
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 FLIPPING MACHINE UP change tools, handle flipping (upright) position (Fig. 3.7), grab the steering bracket and pull the machine down Figure 3.6.2 Figure 3.6.1 using bodyweight (one foot on the heel behind the propane botle). -
Page 12: Handling The Guard
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 HANDLING THE GUARD The self-leveling guard is designed to always have a contact on the surface with brush no matter the height of the tool used. During transport the guard can be hung up so it does not drag on the floor. -
Page 13: Lifting
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 LIFTING Lifting the machine by crane is possible by using the handles of the carriage (fig. 3.11). The design is rated only for the weight of the machine. Do not lift any other loads on the machine. -
Page 14: Adjusting And Mounting Tools
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 ALWAYS USE CLEAN WATER TO PROTECT THE SYSTEM FROM DIRT. Figure 4.3 Figure 4.4 Figure 4.5 4.3 ADJUSTING AND MOUNTING TOOLS The Holder A64 in the LAVINA® E can work with either 3 or 6 rubber buffers, which will alter its elasticity (3 will be more flexible than 6). -
Page 15: Vacuum Connection
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 4.4 VACUUM CONNECTION To connect a vacuum cleaner, the Lavina 32GE is supplied with vacuum hose Cam Lock inlet E300 / vacuum hose diam. 3 in (76mm). Figure 4.8 4.5 CONTROL BOARD... -
Page 16: Fuel-Minder User Manual
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 FUEL-MINDER USER MANUAL The SM40 Fuel-Minder is a high-performance, digital fuel control system featuring closed loop feedback, fuel lock-off capability, emissions safety warnings with shutdown, and an LCD screen for user interface. The system is highly responsive to changes in engine load, providing optimum the air-to- fuel ratio regardless of operating conditions. -
Page 17: Sleep Mode
Password required if set. Factory Unlock- This option is only used by SuperAbrasive and requires a factory assigned pin number to activate. Tach Settings- This allows you to adjust the tachometer for a carbureted or fuel injected engine. It should come pre-set to the correct option and will not require changes. -
Page 18: Safety Information
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 SAFETY INFORMATION Safety Information- Read all safety information before using this device to ensure safe and proper use. Do not interact with the device while operating your equipment. Doing so may distract your attention and cause an accident, or may be illegal depending on your region. -
Page 19: Popular Tools
When used wet, they require only water (no wax or chemicals needed), making them a very environmentally‐friendly solution for maintaining floors. Use Only Superabrasive’s Recommended Tools. For More Tooling Options, Visit www.superabrasive.com... -
Page 20: Maintenance And Inspection
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 7. MAINTENANCE AND INSPECTION REMARK Tampering w/Emission Control System Prohibited Federal law and California State law prohibits the following acts or the causing thereof: (1) the removal or rendering inoperative by any person other than far purposes of maintenance, repair, or replacement, of any device or element at... -
Page 21: Check Every 400 Working Hours
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 Return machine to authorized service center for overall checkup of the Engine. For Propane safety, have the machine serviced by a Certified Technician, including emission check. CHECK EVERY 400 WORKING HOURS In addition to checks made every 200 working hours, replace sealer and V-rings as described in chapter “DISMOUNTING... - Page 22 ® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 OPERATION INTERVAL Daily Every Every Every Every Every Every First 8 Hrs. Hrs. Hrs. Hrs. Hrs. Hrs. Hrs. Check & add engine oil Check for loose or lost fasteners Check for oil leakage...
-
Page 23: Troubleshooting
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 8. TROUBLESHOOTING INDEX OF PROBLEMS AND SOLUTIONS 8.1 ENGINE When troubles occur, be sure to check the simple causes which may at first seem too obvious to be considered. For example, a starting problem could be caused by fuel starvation due to an empty propane cylinder or an unopened service valve. -
Page 24: Disassembling And Mounting Tool Holders To Changing Buffers And Elastic Element
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 To check or replace the buffers and the elastic elements, the tool holders have to be dismounted. You will need a 13mm deep metric socket with an outside diameter of no more than 3/4in to unscrew the four bolts (Fig.8.3.1) and remove the holder (Fig.8.3.2) When the tool holder is dismounted, you can change the sealers (V-Ring and... -
Page 25: Separating The Head From The Carrage
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 holder on the machine. Figure 8.4.10 Figure 8.4.11 Figure 8.4.12 Make sure the four bolts holding the adaptor (Fig.8.4.12) are reliably tightened. Mount the holder on the machine using the same socket as in 8.3 (Fig.8.4.10; Fig.8.4.11). The retaining washer fits into the central hole C of adaptor and the four bolts into the thread holes Т... - Page 26 ® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 Figure 8.5.6 Figure 8.5.5 Figure 8.5.4 Figure 8.5.7 Figure 8.5.8 4. Unscrew (Fig. 8.5.4-1) the bolts (Fig. 8.5.4-1) dismount the throttle (Fig. 8.5.4-2 ) . 5 . Unscrew the four bolts /pos.4/ to remove the...
-
Page 27: Dismounting/Mounting The Engine And Change Belt
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 8.6 DISMOUNTING/MOUNTING THE ENGINE AND CHANGE BELT Separate the head from the carriage (see previous chapter). Remove the front and back belt protectors (Fig. 8.6.1-7) (Fig. 8.6.2-6). Loosen the motor base plate (Fig. 8.6.2_5) and release the tensioner assembly (Fig. -
Page 28: Correcting Sag Of Used Planetary Chain
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 CORRECTING SAG OF USED PLANETARY CHAIN Unscrew the bolts and nuts of the maintenance window (see Fig.8.8.1,pos.1;pos.2) from the front of the main head and lift the machine into tool-changing position. Manually turn the holders in order to turn the main head, stop when the chain link and the chain tensioner can be seen through the window. - Page 29 ® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 Figure 8.9.3 Figure 8.9.1 Figure 8.9.2 Seperate the main head from the carriage as described in the paragraph “Separating the head from the carriage”, Dismount the top cover. Unscrew the eight bolts (Fig.8.9.1) and take off the top cover (Fig.8.9.2) (Fig.8.9.3).
-
Page 30: Replaing The Front Key Joint Of The Planetary Pulley
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 8.10 REPLAING THE FRONT KEY JOINT OF THE PLANETARY PULLEY Find the driving pulley unit of the planetary movement. Dismount the holder (Fig.8.10.1) and the adaptor underneath (Fig.8.10.2), this will clear the access to the front key joint. (Fig. 8.10.4) Figure 8.10.4... -
Page 31: Tensioning And Replacing The Transmission Belt
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 8.11TENSIONING AND REPLACING THE TRANSMISSION BELT The transmission of the machine has maintenance- free timing belt. To change belt, remove all holders Figure 8.11.2 and dismount their adaptors. Dismount sealing. Carefully check the... -
Page 32: Replacing The Pulleys
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 8.12 REPLACING THE PULLEYS Fully loosen the belt and remove (see the previous section). After removing the belts, unscrew the four bolts of the pulleys on top of the disc (Fig. 8.12.1) and replace. -
Page 33: Disposal
3/2022 9. DISPOSAL If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local distributor, where a professional disposal complying with the environment laws and directives is guaranteed. 10. MANUFACTURER’S CONTACTS If you need to contact Superabrasive Inc. -
Page 34: Spare Parts
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11. SPARE PARTS ASSEMBLY AND PARTS SPECIFICATIONS 11.1 LAVINA®3213GEB GENERAL PARTS Item No. Description Pcs. L3213GEB10.00.00 Main Head L32E10.00.23 Bush L32-00.00.00.00.02 Bolt M12DIN934 L32GEB20.00.00 Carriage Horizontal Aluminium W2509 Propane Tank A50.00.00.00 LED light with magnetic base L32GEB02.00.00... -
Page 35: Lavina®32Re Third Wheel
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.2 LAVINA®32RE THIRD WHEEL Item No. Description Pcs. L32RE04.10.00 Frame 30312000053 Wheel 30301230049 Screw M10x30DIN912 30301221005 Washer M10DIN125A 30301240092 Nut M10DIN985 11.3 LAVINA®32GEB FRONT FRAME PARTS Item No. Description Pcs. 30301210021... - Page 36 ® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022...
-
Page 37: Lavina®32Geb Carriage
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.4 LAVINA®32GEB CARRIAGE Item No. Description Pcs. Item No. Description Pcs. L32GEB24.00.00 Control board assembly 28.1 30329000008 Knob BO751-107-25M08 30301210051 Bolt M6X16DIN6921 L32GE20.00.22 Control board bottom Phone clip mount HGP270 L32E20.40.00 Left Weight Support L32E20.00.04... -
Page 38: Lavina®32Geb Frame And Steering Bracket Parts
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.5. LAVINA®32GEB FRAME AND STEERING BRACKET PARTS Item No. Description Pcs. Item No. Description Pcs. Spring L32B- L32E23.20.00 Left Bracket 30317000010 02.03.00.00.02 L32B- Sprocket L32C.23.00.21 Housing 02.03.00.00.01-01 30329000000 Swivel Bolt GN212.3-28-M12-E... -
Page 39: Lavina® 32Geb Water Installation
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.7 LAVINA® 32GEB WATER INSTALLATION Item No. Description Pcs. Internal water valve A92.00.00 Assembly A91.00.00 Water tank External water valve A88.00.00 Assembly MAR8.85 PE Tube MAR8.40 PE Tube MAR8.30 PE Tube 11.8 LAVINA®... -
Page 40: Lavina®32Geb Top Cover And Motor Support Parts
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.9. LAVINA®32GEB TOP COVER AND MOTOR SUPPORT PARTS Item No. Description FX1000V-BS00-S Complete Engine Assembly Cable harness engine to L32GE18.00.00 control board Battery harness (engine L32GE10.40.00 section) L32GE10.00.45 Clutch Washer L32GX-10.00.67... -
Page 41: Lavina® 32Eb Guard Assembly
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.10 LAVINA® 32EB GUARD ASSEMBLY Item No. Description Pcs. 30301210117 Bolt M6X20DIN6921 L32E10.71.00 Vacuum Port L32E L32EB10.70.01-K Guard set L32Е10.73.00-K Limitary tape set L32Е10.72.00 Bottom Vacuum Port FBL1350-2780 Brush L25GEB10.70.02 Nozzle L25GEB... -
Page 42: Lavina® 3213Geb Planetary Chain Parts
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.12 LAVINA® 3213GEB PLANETARY CHAIN PARTS Item No. Description Pcs. L32GX-11.40.00 Motor support assembly 30301210019 Bolt M16X35DIN933 30301220006 Spring Washer M16DIN127B M16DIN125A Washer M16DIN125A L32X-11.00.10 Washer End L32GX-11.00.35 Pulley unit L32GE10.03.00... -
Page 43: Lavina®3213Geb Tool Holder Parts /See Also Fig.8.4.13
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.14 LAVINA®3213GEB TOOL HOLDER PARTS /SEE ALSO FIG.8.4.13/ Item No. Description Pcs. A64.10.00 Quick Change Assembly A63.12.00 Keylock Set A43.11.00 Quick Change plate A41.12.00 Security set 1.3.1 A41.00.05 Washer A41 A25.00.10-K... -
Page 44: Lavina® 3213Geb Central Shaft Bearning Parts
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.16 LAVINA® 3213GEB CENTRAL SHAFT BEARNING PARTS Item No. Description Pcs. 30301230002 Screw M6X16DIN7991 L32D-11.00.03 30303000053 Roller Assembly 6211 L32GE11.00.05 Shaft L32D-11.00.02 Central bushing L32D 30303000009 Roller Assembly 3208 Retaining Ring А80DIN472... -
Page 45: Lavina®32Geb Control Board Parts
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.19 LAVINA®32GEB CONTROL BOARD PARTS Item No. Description Pcs. Item No. Description Control board 30313000069 Start Switch L32GE24.10.00 assembly kit Emergency stop 30313000173 USB charger 30311000719-K button 30301230275 Screw M4x35DIN967 30313000072... -
Page 46: Lavina® 32Geb Engine Parts
® Superabrasive User Manual Original Language Lavina 3213GEB 3/2022 11.21 LAVINA® 32GEB ENGINE PARTS Item No. Description Pcs. Kawasaki FX1000V-BS00-S Retaining clamps 11011-7050 Cap - AIR FILTER 11011-7047 Case-AIR FILTER 11013-7044 Primary Element -AIR FILTER 11013-7045 Secondary Element -AIR FILTER 11065-7008 FX 921V-11.00.00... -
Page 47: Emission Control Warranty Statement
Superabrasive Inc. cannot deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance. As the SORE owner you should however be aware that Superabrasive Inc. may deny your warranty if your SORE or its part has failed due to abuse, neglect, improper maintenance or unapproved modification. - Page 48 Superabrasive Inc. will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.
