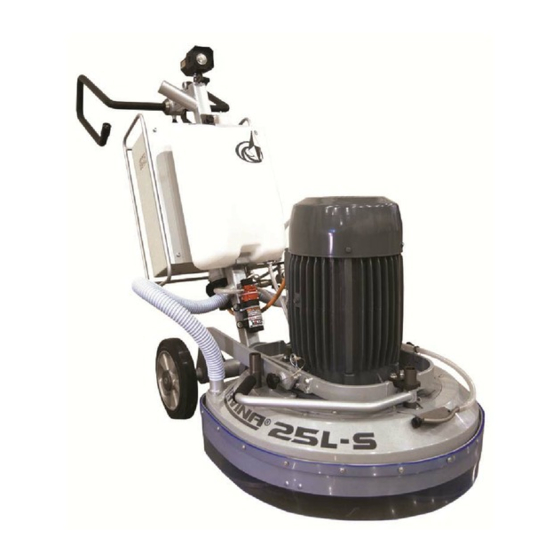

Superabrasive floor grinding and polishing machine
Table of Contents

Advertisement

Quick Links

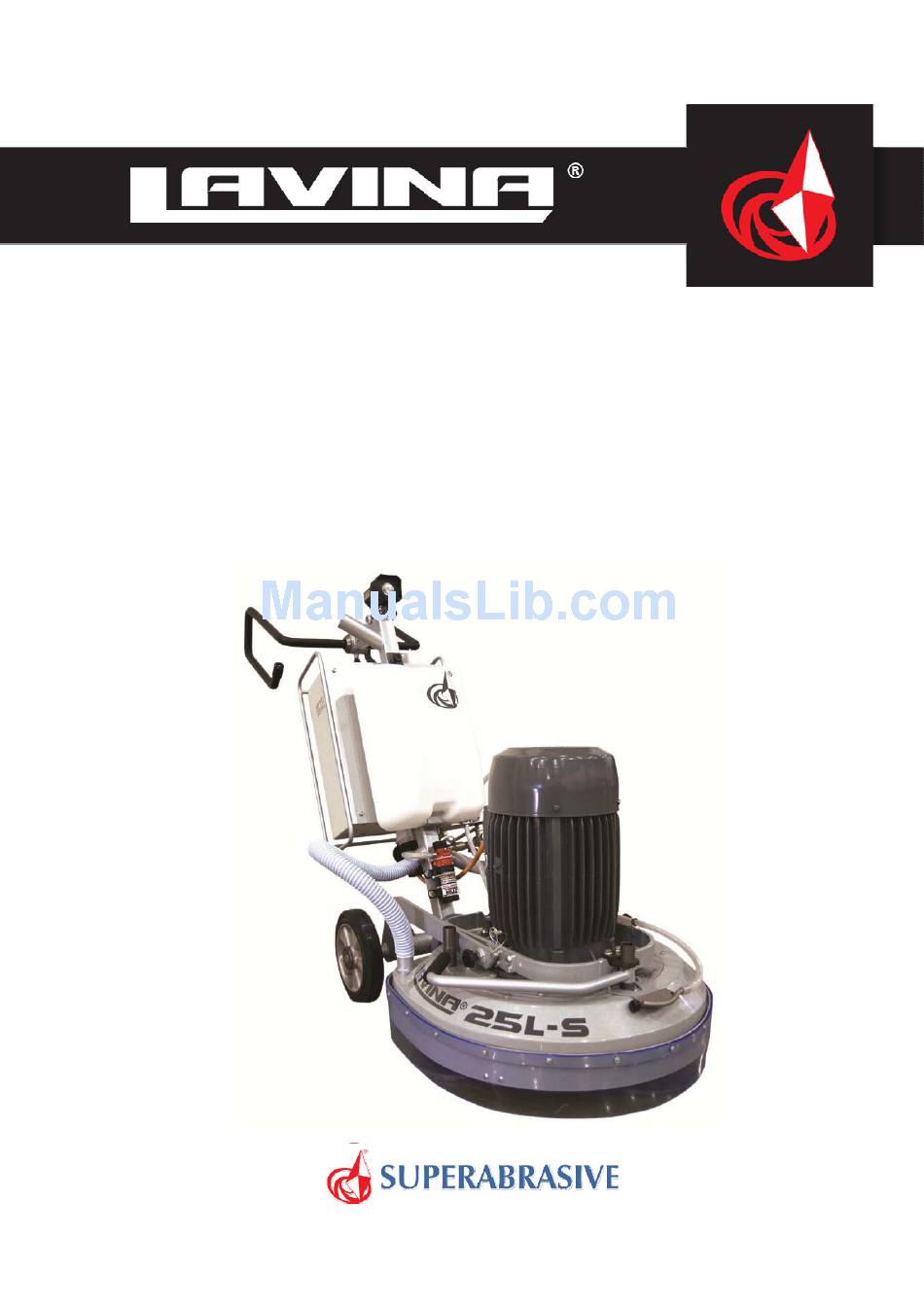

Superabrasive

User Manual
Original Language
Lavina® 25L‐S/ Lavina® 25L‐S‐HV
5/2014
LAVINA
25L-S
®
User Manual
Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lavina 25L?S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Superabrasive Lavina 25L?S

  • Page 1 Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    5/2014  LAVINA 25L-S ® User Manual Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us...
  • Page 2 WARRANTY CARD A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. See next page for more details on LAVINA warranty and return policies. Print and mail this form. Or fill out and submit our...
  • Page 3 WARRANTY POLICY FOR LAVINA® S MACHINES  A warranty card must be submitted to Superabrasive within 30 days of purchase in order for the foregoing warranty to apply. You can either mail a hard copy of the warranty card or submit it electronically - see page 2.
  • Page 4: Table Of Contents

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    5/2014  Bottom Cover Exploded View 2 (Fig.7.6)    12  1. GENERAL INFORMATION Pulley Units Exploded View (Fig.7.7) 12  Preface     3  Carriage Exploded View (Fig.7.8)    12  Manufacturer   3  Tool Holder Exploded View (Fig.7.9) 12  General Description     3  Machine Characteristics   3  8. MAINTENANCE AND INSPECTION Main Design   3  Environmental Conditions   3  Cleaning 13  Electrical Connection      3 ...
  • Page 5: General Information

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  1. GENERAL INFORMATION This owner’s manual is intended for the operator of the Lavina® S machine, the servicing technician as well as for anyone involved  with operating or servicing the machine. We recommend that you read the instructions very carefully and follow them  strictly.The manual includes information about assembling, using, handling, adjusting and maintaining your Lavina® S floor  grinding andpolishing machine.  MANUFACTURER  Superabrasive was founded  in 1987, as a manufacturer of high quality diamond tools for the stone and concrete industry. Today,  Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At  Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently.  GENERAL DESCRIPTION  The Lavina® S machine is intended for grinding, polishing and buffing concrete, marble, granite, limestone, and terrazzo surfaces   with diamond tools.  The Lavina® S machine is a three‐disc machine, which can be used dry as well as wet.  For best results, use only tools manufactured or recommended by Superabrasive and its distributors. Additionally, the machine  could be used for grinding wood floor surfaces.    The Lavina® S machine is manufactured and fitted for the above‐mentioned applications only! Every other  use may possess risks to the persons involved.  MACHINE CHARACTERISTICS  The Lavina® S machine is made of two main component sections:  MAIN DESIGN  The two main component sections, are the carriage and main head.  The handle (Fig.1.2) on the frame is adjustable in height and allows the operator to work in   a correct and safe working posture.  The halogen spotlight (Fig.1.2) enables the operator to work in darker areas.   Existing lighting system does not replace adequate overhead lighting.   Figure 1.1  A frame (U‐joint technology) on top of the motor base allows the main head to move to all sides and it gives more grinding capacity. ...
  • Page 6: Vacuum Connection

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  VACUUM CONNECTION  A connection for a vacuum dust extractor is located on the carriage. The Lavina® S machine does not include a vacuum dust  extractor. The customer must purchase the vacuum dust extractor separately. The hose of the vacuum extractor must be Ø 50  mm and can be glided over the pipe. The vacuum dust extractor must be adapted for floor grinders and have a minimum air  displacement of 320m3/h with a negative vacuum of 21 kPa.   Lavina® 25L‐S Lavina® 25L‐S‐HV TECHNICAL DATA  Voltage/Hz 3 ph x 200‐240V 50‐60Hz 3 ph x 380‐480V 50‐60Hz Amperage  Max 45 Amps Max 30 Amps Power  11 kW 15 HP 11 kW  15 HP Tool holder rpm  300‐1100 rpm 300‐1100 rpm Working width  655 mm 25” 655 mm  25” Tool diameter (QC Plate)  3x 225 mm 3x 9” 3x 225 mm  3x 9” Weight ...
  • Page 7: Protection Devices

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014   The electrical cable is free to move and follow the machine  transportation, repair or maintenance.   Before filling the water tank with water make sure  easily.    In order to keep the electrical cable from being damaged,  the machine is not working and the main switch is  turned off.  no vehicle should cross the zone where electrical cables are   Before turning on the machine make sure that the base is  situated.   placed on the floor, the machine MUST NOT be in an upright  PROTECTION DEVICES    position when turned on!  The machine is equipped with several protection devices   including the following:  OPERATING MACHINE       An emergency stop button   When operating the Lavina® S, make certain that there is no   A protection skirt and a hood for protecting the tool  one, but you around the machine.   Never leave the machine unattended while working. ...
  • Page 8: Handling And Transportation

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    5/2014  3. HANDLING AND TRANSPORTATION  PREPARING THE MACHINE FOR TRANSPORTATION                Figure 3.3 Figure 3.1   Figure 3.2 Unplug the motor cable plug from the control box and disconnect the water hose from the main head by pulling it out  (Fig.3.1) (Fig.3.2). Wind the electrical cable on the carriage. Release the pin sets which attach the head to the carriage. Pull  out the vacuum hoses (Fig.3.3), and dismount the head from the carriage.  The head of the LAVINA® S machine has one bar for support and is used as handles for easy moving and transportation.     LIFT THE MACHINE FROM WORKING TO TOOL  MOUNTING POSITION  Push the front handle down and swivel it to the   front (Fig.3.4). Pull the handle up and ensure  the head is a stable upright position, for  mounting/dismounting the tool. Ensure that  the water tank is empty before flipping the  machine. Pull the head in upright position  (Fig.3.5). The machines manufactured after  Figure 3.5 Figure 3.4 Figure 3.4.1...
  • Page 9: Storage

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014    STORAGE  Always store and transport the Lavina® S  machine in a dry place. Never transport the  Lavina® S machine unprotected; it may be  damaged if transported unprotected during  rain or snow.      Figure 3.11 Figure 3.9 Figure 3.10   o  When storing the machine the temperature may fall down to or to less than 32F (or 0 C) you should empty the water from the  system using the following steps:  ‐ Pull out the hose of the tank (Fig.3.9)  ‐ Using compressed air blow out the water from the system for the two positions of the turn‐cock (Fig. 3.10, Fig. 3.11).                4. OPERATION  PRELIMINARY CONTROLS  Inspect the working area as explained in the safety instructions. For wet use, fill the water tank when the electrical cable is  disconnected. Connect the vacuum extractor and ensure that the vacuum hose is clear and that it will easily follow the machine. ...
  • Page 10: Control Board

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  THE CONTROL BOARD  1. Power cable plug 2. Digital RPM indicator Indicates the revolution per minute of the grinding plates (not the revolution per minute of the entire unit). 3. Polishing/Grinding switch   In “grinding” position, the operator has the possibility to control the rpm from 300 until maximum 700 rpm. In “Polishing” position from 300‐1100 rpm maximum. 4. Lamp cable gland 5. Inverter alarm led Lights blue when the inverter goes into alarm mode. 6. Water pump switch Lights orange when the water pump is working. 7. Power led lights green when the power is on 8. Forward/Reverse switch choose forward for clockwise rotation of the grinding plates or reverse for anti‐clockwise rotation of the 4  6  1  2  3  5  7  8  grinding plates 9. Potentiometer  changes the RPM of the grinding plates from 300‐1100 rpm 10. Reset button resets the alarm of the inverter 11.
  • Page 11: Tools And Accessories

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  5. TOOLS AND ACCESSORIES WEIGHTS  Superabrasive offers additional weights for increasing the productivity of the machine (Fig.5.1).  Each additional weight weighs about 64 lbs or 29kg. Each individual application, type and  condition of surface, power capacity of the outlet, etc. will determine the number of weights you  can use without tripping a breaker. The weight stacks onto three posts that are around the outer  bowl (Fig.5.2). The additional weights depend on the tools; it is not always possible to ass  weights. Some tools work too aggressively and the machine can stop. The weight can be ordered  with item number A08.00.00.00  Figure 5.1 Figure 5.2 TOOL HOLDER KEY  The tool holder key (Fig.5.3) is used for adjusting, mounting and dismounting of the foam plates.  Always use the key for mounting.  Item number is A03.00.00.00  Figure 5.3 FOAM PLATE  Diamond tools with Velcro are mounted on the foam plate 9“(Fig.5.4). The foam plate is mounted on  the “QuickChange”System.  Item number is LV‐9‐FP‐S  Figure 5.4 SECURITY PLATE FOR QUICKCHANGE PADS  Plate (Fig.5.5) used to ensure the “QuickChange” pads.  Item number is A38.00.01  Figure 5.5 9 ...
  • Page 12: Popular Tools

    QuickChange System and Tooling feature extremely fast and convenient tool changes, and a long tool  life, providing for great long‐term cost savings. The QuickChange pads are produced in four different  bonds for super hard, hard, medium and soft concrete, in a variety of grit sizes. Offered with 1 or 2  buttons or rectangular segments, which allows you to customize the aggressiveness of the cut.  Calibra grinding discs: our popular ceramic bond discs are designed for the removal of difficult scratches  and they save you valuable time by eliminating the need for multiple passes with metal tools. They can be  used wet or dry, and are best for hard concrete applications.  They are 3-inch, with included Velcro back attachment.  NATO® polishing discs feature a special resin formula designed for both wet and dry applications and a unique design with  wide channels allowing for work on a cleaner surface and ensuring a quality polish. Available in 3 and 4 in sizes. They are with  included Velcro attachment.  V‐HARR® Premium Polishing Pads are designed for mechanically polishing and restoring concrete; also ideal for terrazzo and  hard stone floors. V‐HARR® pads are offered in a wide variety of diameters and grit sizes to accommodate many applications.  Dry use is strongly recommended.   ®  Shine Pro are high quality diamond‐impregnated pads for floor maintenance. Available in a variety of  sizes, and are great for  daily use. When used wet, they require only water (no wax or chemicals needed) and are a very environmentally friendly solution   for maintaining floors.  Use only Superabrasive’s recommended tools. For more tooling options, visit www.superabrasive.com  10 ...
  • Page 13: Exploded View

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  7. EXPLODED VIEW    LAVINA® 25L‐S GENERAL EXPLODED VIEW (FIG.7.1)  LAVINA® 25L‐S TOP COVER EXPLODED VIEW 1 (FIG.7.2)  LAVINA® 25L‐S PLANETARY DRIVE EXPLODED VIEW (FIG.7.3)  LAVINA® 25L‐S TOP COVER EXPLODED VIEW 2 (FIG.7.4)                                                  Figure 7.2 Figure 7.1  ...
  • Page 14: Bottom Cover Exploded View 1 (Fig.7.5)

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  LAVINA® 25L‐S BOTTOM COVER EXPLODED VIEW 1 (FIG.7.5)  LAVINA® 25L‐S BOTTOM COVER EXPLODED VIEW 2 (FIG.7.6)  LAVINA® 25L‐S PULLEY UNITS EXPLODED VIEW (FIG.7.7)  LAVINA® 25L‐S CARRIAGE EXPLODED VIEW (FIG.7.8)  LAVINA® 25L‐S TOOL HOLDER EXPLODED VIEW (FIG.7.9)  Figure 7.5 Figure 7.6 Figure 7.7 12  Figure 7.9 Figure 7.8...
  • Page 15: Lavina® 25L-S/ Lavina® 25L-S-Hv

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  8. MAINTENANCE AND INSPECTION CLEANING  Keep your machine clean. Cleaning the machine in a regular basis will help detect and solve potential problems before they can  cause damage to the machine. Most importantly, check and clean the tool plate connections, power cords, plugs, vacuum hoses,  and water tank.   CHECK  DAILY   After operating the Lavina® S machine, the operator should conduct a visual inspection of the  machine. Any defect should be solved immediately. Pay attention to power cords, plugs,  vacuum hoses, loose bolts or screws.  Tool holders: Buffers and spiders are consumables and must be visually checked on a daily  basis and replaced if necessary. Make sure the flanges or discs are securely locked in place.  The key lock holders (butterflies) should also be checked.  Check the rubber buffers and make sure the holders are secure. The flange holding the buffers  (Fig.8.1‐1) has to be firmly secured to the unit. If there is a gap seen here, that means the  screws securing the holder are loose. The screws have to be tightened immediately to safely  operate the machine. Working with loose screws could cause serious damage to the machine.  The tightening force of the screws has to be 25‐30N.m (18‐22ft/lbs).   It is very important to regularly check the screws that secure the “QuickChange” holder to the  safety part (Fig.8.1‐ 2), so that the holder will not fly away if the buffers get damaged. The  “QuickChange” should be clean also. The tension of the planetary belt can be checked by  Figure 8.1 moving the main head and feeling the resistance of the moving pulleys, tighten the belt if       necessary. CHECK AND REPLACE AFTER THE FIRST 15 WORKING HOURS  Check the belt tension after 15 hours of working with the machine. The bottom cover has  a control cover (Fig.8.2) that allows fast and easy control and correction of the belt. It is  recommended that the belt tension be checked after the first 15 hours and tightened if  necessary. For the correct tension, see TROUBLESHOOTING “mounting the belt”. Every  time you open the control cover, mount back all the screws with washers.   CHECK EVERY 200 WORKING HOURS ...
  • Page 16: Electrical Schemes 200-240 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  Lavina® 25L‐S Electrical schemes with Yaskawa Inverter  200‐240 Volt LAVINA® 25L‐S ELECTRICAL SCHEMES YASKAWA CONNECTION  MAIN CIRCUIT TERMINALS  The motor is connected in “Delta”  (triangle) 230 Volt,  reminder for the wire connection of  the motor.  14 ...
  • Page 17: Electrical Schemes 380-480 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  LAVINA® 25L‐S‐HV ELECTRICAL SCHEMES WITH YASKAWA INVERTER 380-480 VOLT LAVINA® 25L‐S‐HV ELECTRICAL SCHEMES YASKAWA CONNECTION MAIN CIRCUIT    TERMINALS The motor is connected in  “Star” 380 Volt,  reminder for the wire    connection of the motor 15 ...
  • Page 18: Troubleshooting Index Of Problems And Solutions

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  9. TROUBLESHOOTING  INDEX OF PROBLEMS AND SOLUTIONS    9.1 REPLACING POWER CORD AND PLUGS   When replacing the power cord or plugs always use cords and plugs with the same specifications as the original ones.  Never use lower quality or different types of cords and plugs.  In addition, take into consideration the distance between the appliance and the electrical source. The greater the distance, the  greater the resistance and the less current that will be available at the other end, there will be a voltage drop and the inverter will  sign into alarm mode. This will also happen if several machines are working on the same line or when the generator is underrated.  In general, our standard power cable can be doubled in length; if you need longer lengths then you must replace all the cables with  cables of a bigger gauge rate for the length and amperage.     9.2 DISMOUNTING AND MOUNTING TOOL HOLDER TO CHANGE BUFFERS AND SPIDER, CHANGING V‐RINGS AND FELT‐RINGS          Figure 9.2.2 Figure 9.2.3   Figure 9.2.1         Figure 9.2.6 Figure 9.2.4 Figure 9.2.5 To check or replace the buffers and the spiders, the tool holder has to be removed. Remove the countersunk screws on top of the ...
  • Page 19: Tensioning And Replace The Planetary Belt

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  9.3 TENSIONING AND REPLACE THE PLANETARY BELT  Figure 9.3.3 Figure 9.3.1 Figure 9.3.2 If the belt slips or is broken separate the carriage  from the main head, pull out the motor  plug(Fig.9.3.1), water‐(Fig.9.3.2) (Fig.9.3.3), and  vacuum tubes (Fig.9.3.4). Take off the handles,  fork, top frame, and weight holders so you can  dismount the top cover (Fig.9.3.5).  Figure 9.3.5 Figure 9.3.4 9.4 TENSIONING USED PLANETARY BELT    Figure 9.4.1 Figure 9.4.2 A noticeable loss of speed in the planetary movement means the belt may need to be tensioned, see 9.5  Mounting and tensioning a new planetary belt.  9.5 MOUNTING AND TENSIONING A NEW PLANETARY BELT  Figure 9.5.1 Figure 9.5.3   Figure 9.5.2 Figure 9.5.5...
  • Page 20: Checking The Tension Of The Belt

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014          Figure 9.5.7 Figure 9.5.8 Figure 9.5.9   Completely remove the tensioning device (Fig. 9.5.1). Make 2 signs on the dismounted belt that  are exactly 10cm from each other (belt without tension) (Fig.9.5.2). The purpose is to measure  10.2 cm on the belt when tensioned. ATTENTION: NEVER “OVER” TENSION THE BELT, THE  BELT WILL BE DAMAGED AND IT WILL NEVER RECOVER FROM ITS ORIGINAL TENSION   Mount the belt back around the planetary pulley; see that the belt is behind the driving pulley  (Fig.9.5.3). Put the belt around the left roller of the tensioning device (Fig.9.5.4). Put the  tensioning device back in place and pull the belt from the roller on the right side (Fig.9.5.5). Put  the belt around the driving pulley (Fig.9.5.6). Begin to tension until the previous 10cm  measurement equals 10.2cm (Fig.9.5.7 and Fig.9.5.8). Tighten the tensioning device while  turning the bolt and moving the planetary head so the belt can slide (Fig. 9.5.8). Do not forget  to lock the tensioning device (Fig.9.5.9).     9.6 CHECKING THE TENSION OF THE BELT    Figure 9.6.1   Figure 9.6.2     Figure 9.6.3 Figure 9.6.4...
  • Page 21: Replacing Of The Pulley Units

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  9.7 REPLACING THE PULLEY UNITS  Dismount guard and top cover as previous described.        Figure 9.7.3   Figure 9.7.1 Figure 9.7.2       Figure 9.7.4   Figure 9.7.5 Figure 9.7.6       Figure 9.7.8 Figure 9.7.9 Figure 9.7.7    ...
  • Page 22: Mounting The Belt

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  For the two other pulleys, loose the five bolts of each pulley between the base plate and the motor base disc (Fig.9.7.13). An oil   seal ring (Fig.9.7.14) and a seal (Fig.9.7.15) should be placed on top of the pulley before mounting.  9.8 MOUNTING THE BELT  See here the schematic of the belt on the pulleys (Fig.9.8.1).  To dismount/mount the belt, follow the tensioning instruction in chapter:  Checking the tension of the belt.  Figure 9.8.1 9.9 MOTOR CONNECTION  In case the motor is being replaced, please follow the cable connections in the figures below (Fig.9.9.1 and Fig.9.9.2).  Lavina® 25L‐ S  Lavina® 25L‐S‐HV  The motor is connected in “Delta”   The motor is connected in “Star”   (Triangle) 230 Volt, reminder for   380 Volt, reminder for the   the wire connection of the motor.  wire connection of the motor.  Figure 9.9.2 Figure 9.9.1 20 ...
  • Page 23: Fault Diagnosis Inverter Yaskawa V1000

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  9.10 FAULT DIAGNOSIS INVERTER YASKAWA V1000  Pages are referring to   Yaskawa Electric SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual  21 ...
  • Page 24 Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  22 ...
  • Page 25 Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  23 ...
  • Page 26: Warranty And Returns

    If machines are not exchanged, they are subject to a fifteen percent (15%) restocking fee. 12. DISPOSAL If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local distribut or, where a professional disposal complying with the environment laws and directives is guaranteed.
  • Page 27: Spare Parts

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13. SPARE PARTS  ASSEMBLY AND PARTS SPECIFICATIONS  13.1 LAVINA®25L‐S  GENERAL PARTS  FOR MACHINES PRODUCED BEFORE Jan. 1,  2014/   Model Item No. Description Pcs. L25L-S L25LS-10.00.00 Main Head L25L-S MAR8.25 Tube L25L-S 10-16DIN3017 Clamp L25L-S L25LS-20.00.00 Carriage L25L-S MAR8.20 Tube L25L-S D40L670 Vacuum Hose L25L-S MAR8.84...
  • Page 28: For Machine Produced Before 2014

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.2 LAVINA®25L‐S  TOP COVER PARTS 1  / FOR MACHINES  PRODUCED BEFORE Jan. 1, 2014/   Model Item No. Description Pcs. L25L-S L25GS-19.00.00 Top Cover Assembly L25L-S M6X10ISO7380F Screw L25L-S L25NSPS-07.00.00.05 Back Weight Holder L25L-S L25SPS-07.00.00.29 Rubber Buffer L25L-S L25GS-18.00.00 Frame Assembly...
  • Page 29: Top Cover Parts

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.3 LAVINA®25L‐S  TOP COVER PARTS 2  Model Item No. Description Pcs. L25L-S L25GS-19.00.01 Top Cover L25L-S L25GS-19.10.00 Vacuum Port L25L-S L25GS-19.20.00 Water Fitting L25L-S M12DIN985 L25L-S M5DIN125A Washer L25L-S M5DIN127B Spring Washer L25L-S M5DIN934 L25L-S L25SPS-04.01.00.00 Vacuum Port...
  • Page 30: Bottom Cover Parts

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.6 LAVINA®25L‐S  BOTTOM COVER PARTS 1  Model Item No. Description Pcs. L25L-S L25LS-14.00.00 Bottom Cover Assembly L25L-S M5X12DIN6921 Bolt L25L-S L25LS-14.00.05 Sealer Inspection Cover L25L-S L25L-10.00.09 Inspection Cover L25L-S M6DIN127B Spring Washer L25L-S M6X12DIN933 Bolt L25L-S M6DIN9021 Washer...
  • Page 31: Pulley Units Parts

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.8 LAVINA®25L‐S  PULLEY UNIT PARTS  Model Item No. Description Pcs. L25L-S L25LS-11.00.00 Pulley Unit Assembly L25L-S M6X20DIN7991 Screw L25L-S L25L-10.00.21 L25L-S TRA000650 Rotary Seal L25L-S L25SPS-00.00.00.23 Compensating Ring L25L-S B65DIN471 Retaining Ring L25L-S 6013 Roller Assembly L25L-S L25SPS-00.00.00.34...
  • Page 32: Tool Holder Parts

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.10 LAVINA®25L‐S  TOOL HOLDER PARTS  Model  No.  Item No.  Description  Pcs.  25L‐S   A31.10.00 Quick Change Assembly 25L‐S   A31.12.00 Keylock Set 25L‐S   M6X16DIN7991 Screw   25L‐S   A25.00.10-K Buffer with two screw 25L‐S   M8X12DIN7991 Screw 25L‐S   A25.00.10 Buffer 25L‐S   A25.00.05-02 Spider 25L‐S  ...
  • Page 33: Carriage Parts

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.11 LAVINA®25L‐S  CARRIAGE PARTS/ FOR MACHINE PRODUCED AFTER 2013/ Model Item No. Description Pcs. Item No. Description Pcs. L25L-S L25LS-21.00.00-01 Frame M5X20DIN933 Bolt L25L-S L25-S-23.10.00 Handle Assembly A29.40.00 Water Flow Control Unit L25L-S L25-S-23.00.02 End Cover A29.20.01-01 Flow Unit Base L25L-S L25-S-23.00.06...
  • Page 34: Control Box Parts 200-240 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.12. LAVINA® 25L‐S CONTROL BOX PARTS 200‐240 VOLT  13.12 LAVINA®25L‐S  CONTROL BOX PARTS  200‐240 VOLT  Model Item No. Description Pcs. Item No. Description Pcs. L25L-S L20NS-30.30.00 Lamp Unit Incl. Cable L20NS-30.11.08 Rectifier L25L-S L20NS-30.10.01 Cable Gland L25LS-30.50.00 Panel socket assembly L25L-S L25LS-30.30.10 Plug on Control Board L25LS-30.20.00...
  • Page 35: Control Box Parts 380-480 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25L‐S/ Lavina® 25L‐S‐HV    6/2014  13.13 LAVINA® 25L‐S‐HV CONTROL BOX PARTS 380‐480 VOLT  13.13 LAVINA®25L‐S‐HV  CONTROL BOX PARTS 380‐480 VOLT  Model Item No. Description Pcs. Item No. Description Pcs. L25L-S-HV L20NS-30.30.00 Lamp Unit Incl. Cable L25LHVS-30.10.03 Socket L25L-S-HV L20NS-30.10.01 Cable Gland L25LHVS-30.20.00 Electro Motor Assembly L25L-S-HV L25LHVS-30.10.02 Plug on Control Board 17.1...
