Superabrasive

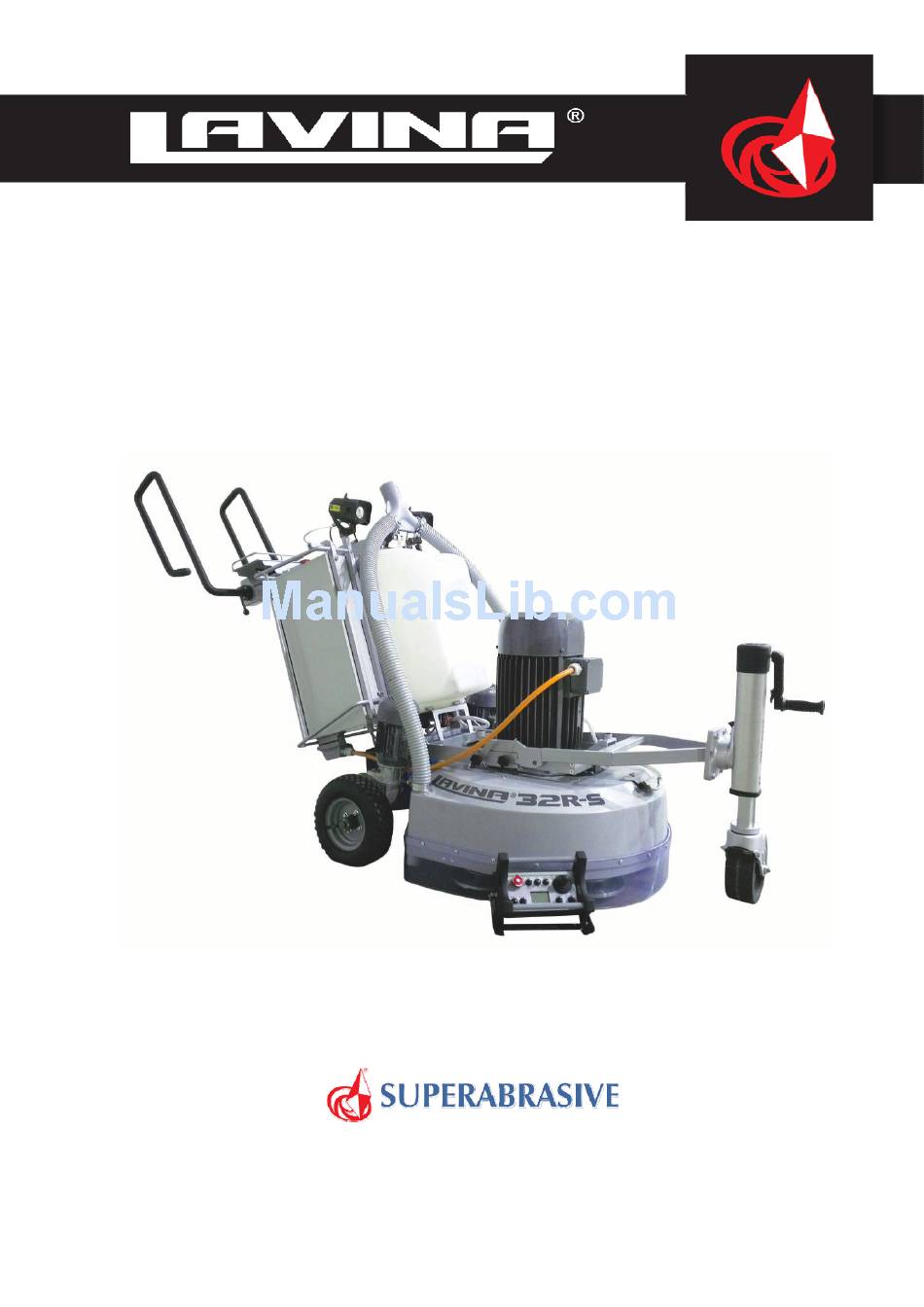

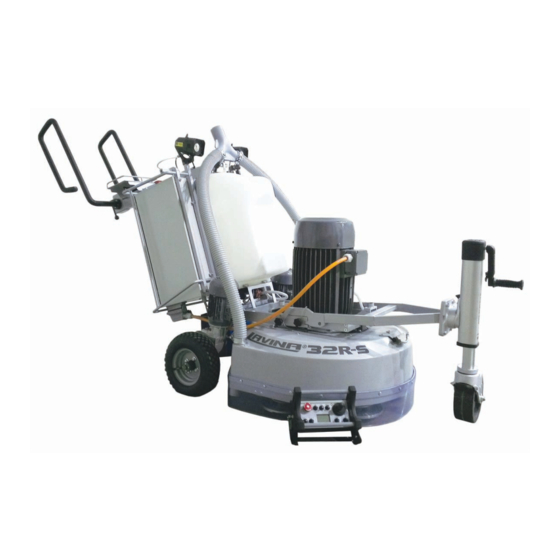

Owner's Manual – Lavina
32R-S/32R-S-HV
10/2014
LAVINA
32R -S User Manual
®
Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us
1
