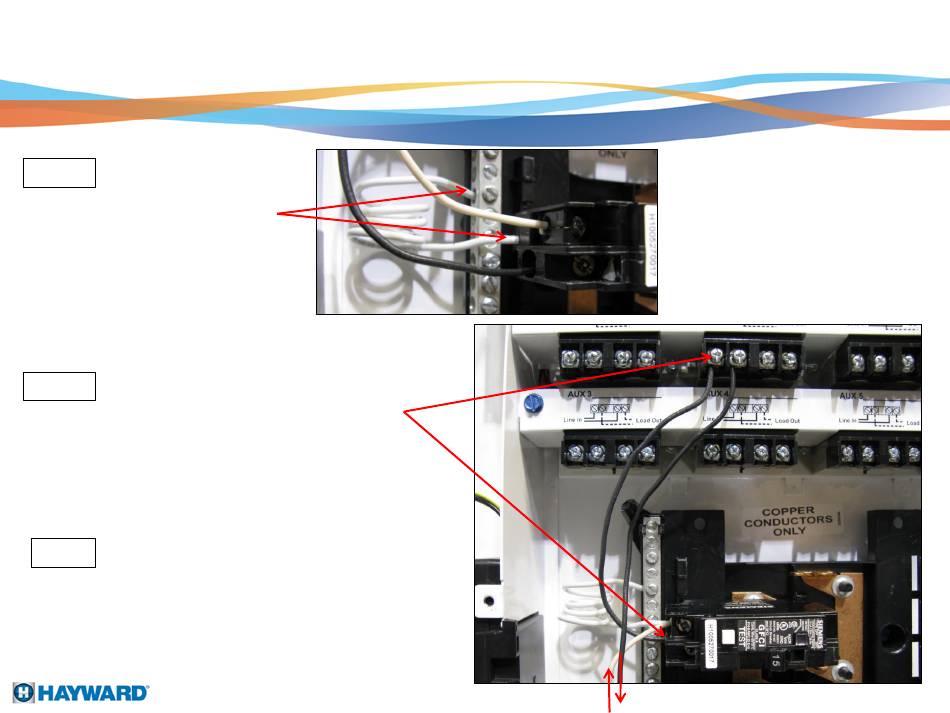

ColorLogic Lights Wiring
Connect the pig-tail
Step G
wire of the GFCI
breaker to the
neutral bus bar.
Connect the line power wire
Step H
(from breaker) and load power
wire (to lights) to the Lights
Relay.
Connect the load neutral wire
Step I
(from light) to the GFCI breaker.
From light(s)
To light(s)
Page 7
