UCL Series Underwater

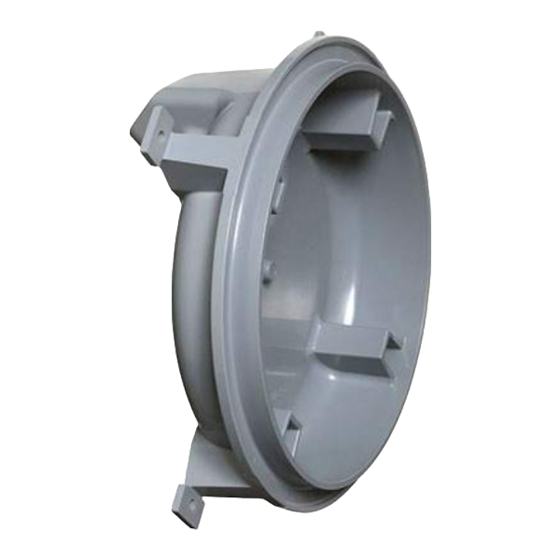

Large Lighting Niche
for ColorLogic
IMPORTANT SAFETY INSTRUCTIONS
Basic safety precautions should always be followed, including the following: Failure to follow instructions can
cause severe injury and/or death.
This is the safety-alert symbol. When you see this symbol on your equipment or in this manual, look for
one of the following signal words and be alert to the potential for personal injury.
WARNING warns about hazards that could cause serious personal injury, death or major property dam-
age and if ignored presents a potential hazard.
CAUTION warns about hazards that will or can cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are
unpredictable and unsafe.
The NOTICE label indicates special instructions that are important but not related to hazards.
and CrystaLogic
®
Owner's Manual
Contents
Light Warnings................2
Introduction....................3
Important Information.....3
Installation.....................4
Replacement Parts..........7
General Warnings...........8
Warranty........................10
Registration Card...........11
LFGUY1000
Hayward Pool Products
620 Division Street, Elizabeth NJ 07207
www.hayward.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Pool/Spa lights
TM
IS0800A RevF
Advertisement
Related Manuals for Hayward UCL Niches
Summary of Contents for Hayward UCL Niches
-
Page 1: Table Of Contents
It can also make consumers aware of actions that are unpredictable and unsafe. The NOTICE label indicates special instructions that are important but not related to hazards. Hayward Pool Products 620 Division Street, Elizabeth NJ 07207 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 2: Light Warnings
– Electrical shock hazard. Damage to wiring can cause severe injury or death. To reduce the risk of electric shock replace damaged wiring immediately. Locate conduit to prevent abuse from lawn mowers, hedge trimmers and other equipment. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 3: Introduction
Article 680.23 of the National Electrical Code [NEC]. 2. This UCL underwater lighting niche does not contain or require a bonding or a grounding connector. It is designed to exclusively mount the Hayward all plastic Universal ColorLogic/CrystaLogic LED pool/spa lights. The UL listing for this niche allows it to be used with Hayward’s non-bonded non- grounded Universal ColorLogic/CrystaLogic low voltage pool/spa lights. -
Page 4: Installation
At the time the niches are installed, it may be necessary to add sections of rebar or move existing sections to one side or another. NOTICE: THE NEC REQUIRES THAT THE TOP OF THE LIGHT LENS BE AT LEAST 4 INCHES (10 CM) BELOW THE WATER LEVEL. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 5 5. Push the cord seal bearing into the cord seal nut until it snaps into place. 6. Slide the cord seal nut on the wires toward the back of the niche housing and thread it into the niche housing threads. 7. Tighten snug (hand tight) as needed. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 6 12 o’clock position. Install the trim ring by positioning the Hayward logo at the 11 o’clock position onto the light fixture. Twist the trim ring clockwise until it firmly locks. The Hayward logo should now be in the 12 o’clock position.
-
Page 7: Replacement Parts
45° " PEELED " 12" " " " NICHE COVER 6" NICHE ITEM PART NUMBER DESCRIPTION SPX0800CSKIT Kit includes Cord Seals, Compression Nut and Bearing Plate SPX0800J Niche Shield SPX0800LPAK2 Latch for Shallow Niche USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 8: General Warnings
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 9 USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 10 The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect to its’ pool products and is in lieu of all other warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose. In no event shall Hayward Pool products be responsible for any consequential, special or incidental damages of any nature.
-
Page 11: Warranty
Please include me on all e-mail communications regarding Hayward Equipment or promotions. ® Mail to: Hayward Pool Products, 620 Division Street, Elizabeth, NJ 07207 Attn: Warranty Dept or REGISTER YOUR WARRANTY ON-LINE AT WWW.HAYWARD.COM USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 12 Hayward is a registered trademark and ColorLogic and CrystaLogic are trademarks of Hayward Industries, Inc. © 2012 Hayward Industries, Inc. All other trademarks not owned by Hayward are the property of their respective owners. Hayward is not in any way affiliated with or endorsed by those third parties.
