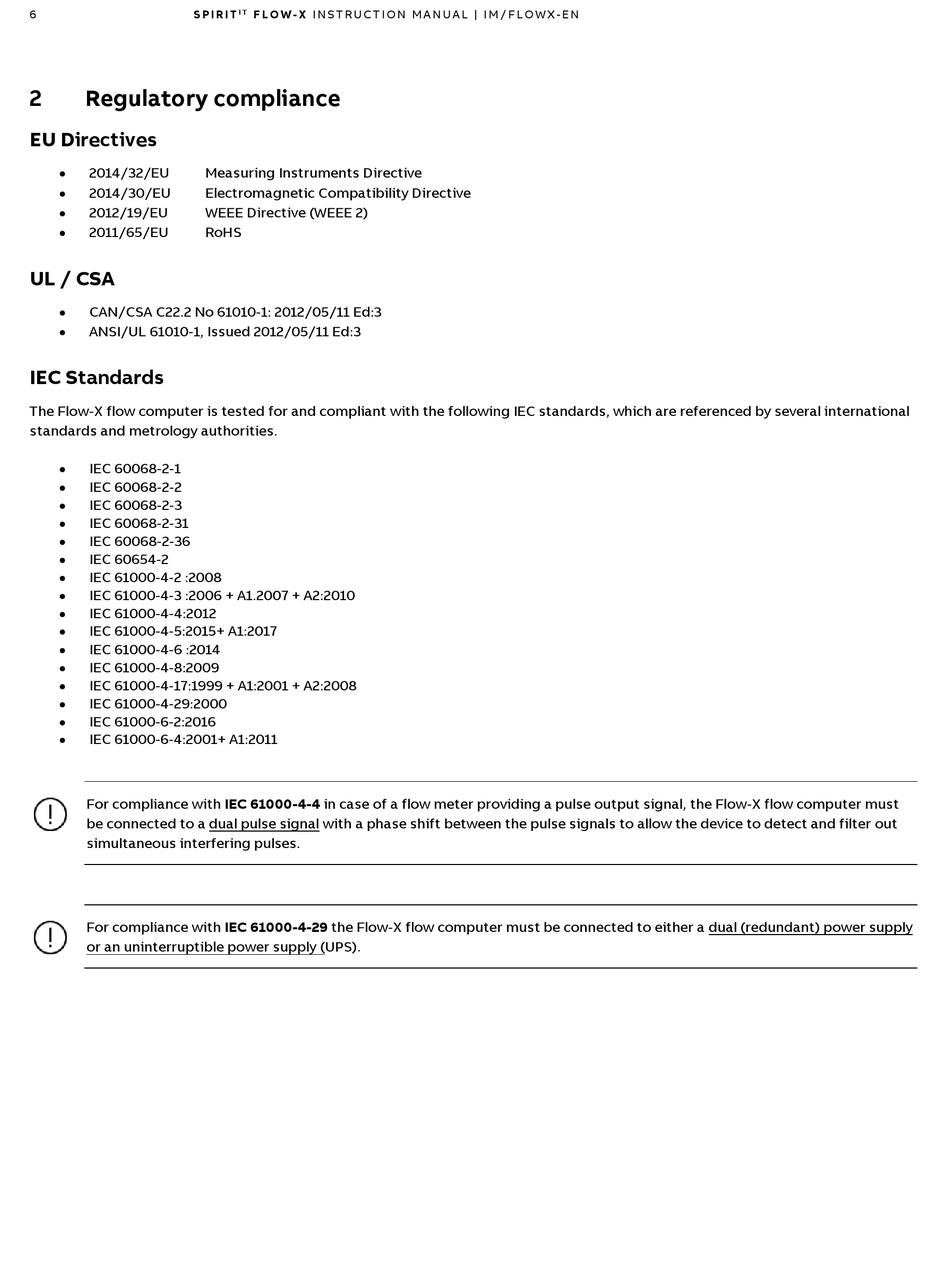

Regulatory compliance

EU Directives

 2014/32/EU Measuring Instruments Directive
 2014/30/EU Electromagnetic Compatibility Directive
 2012/19/EU WEEE Directive (WEEE 2)
 2011/65/EU RoHS

UL / CSA

 CAN/CSA C22.2 No 61010-1: 2012/05/11 Ed:3
 ANSI/UL 61010-1, Issued 2012/05/11 Ed:3

IEC Standards

The Flow-X flow computer is tested for and compliant with the following IEC standards, which are referenced by several international
standards and metrology authorities.
 IEC 60068-2-1
 IEC 60068-2-2
 IEC 60068-2-3
 IEC 60068-2-31
 IEC 60068-2-36
 IEC 60654-2
IEC 61000-4-2 :2008

 IEC 61000-4-3 :2006 + A1.2007 + A2:2010
 IEC 61000-4-4:2012
 IEC 61000-4-5:2015+ A1:2017
 IEC 61000-4-6 :2014
IEC 61000-4-8:2009

 IEC 61000-4-17:1999 + A1:2001 + A2:2008
 IEC 61000-4-29:2000
 IEC 61000-6-2:2016
 IEC 61000-6-4:2001+ A1:2011
For compliance with IEC 61000-4-4 in case of a flow meter providing a pulse output signal, the Flow-X flow computer must
be connected to a dual pulse signal with a phase shift between the pulse signals to allow the device to detect and filter out
simultaneous interfering pulses.
For compliance with IEC 61000-4-29 the Flow-X flow computer must be connected to either a dual (redundant) power supply
or an uninterruptible power supply (UPS).
