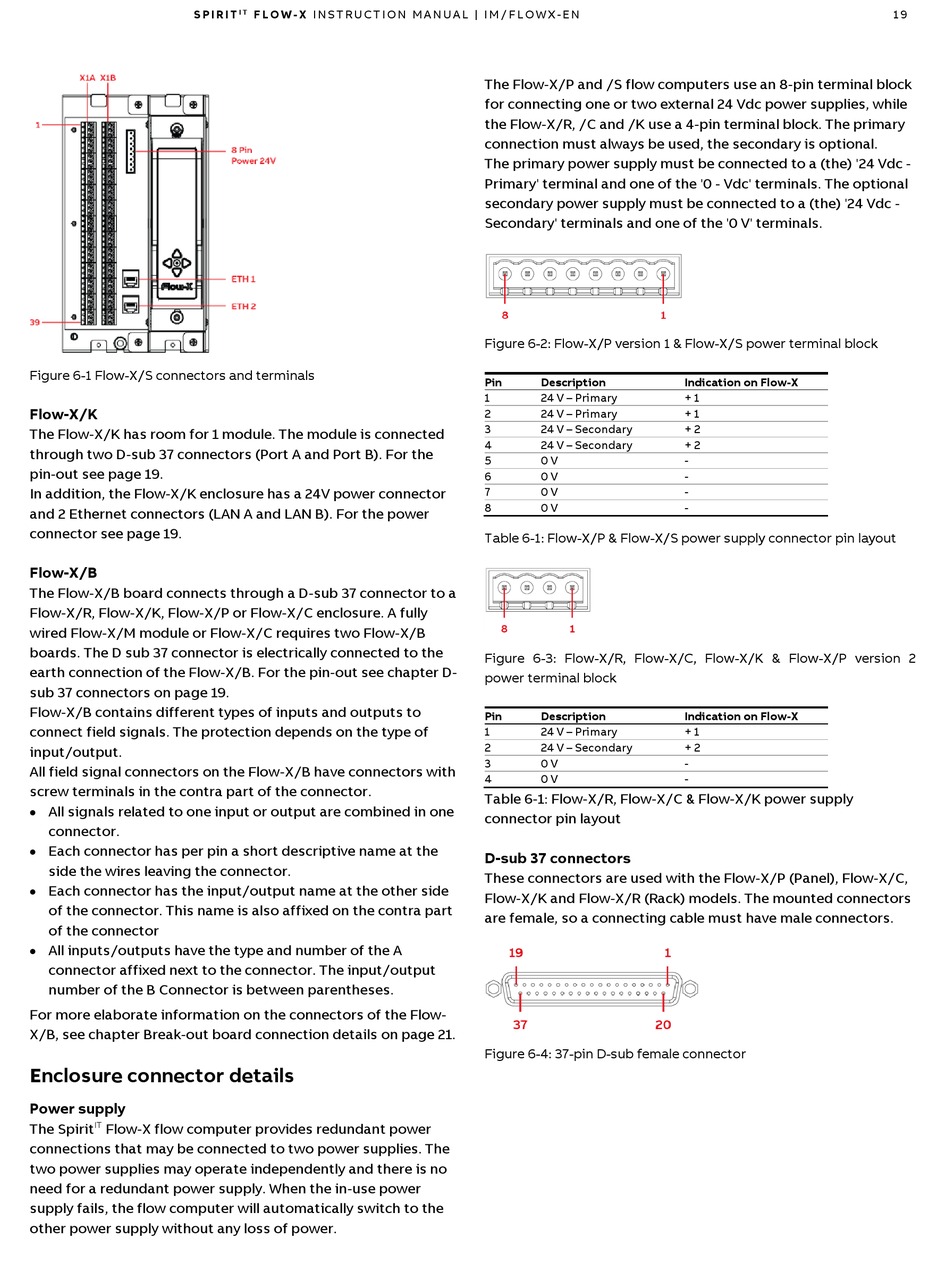

Figure 6-1 Flow-X/S connectors and terminals
Flow-X/K
The Flow-X/K has room for 1 module. The module is connected
through two D-sub 37 connectors (Port A and Port B). For the
pin-out see page 19.
In addition, the Flow-X/K enclosure has a 24V power connector
and 2 Ethernet connectors (LAN A and LAN B). For the power
connector see page 19.
Flow-X/B
The Flow-X/B board connects through a D-sub 37 connector to a
Flow-X/R, Flow-X/K, Flow-X/P or Flow-X/C enclosure. A fully
wired Flow-X/M module or Flow-X/C requires two Flow-X/B
boards. The D sub 37 connector is electrically connected to the
earth connection of the Flow-X/B. For the pin-out see chapter D-
sub 37 connectors on page 19.
Flow-X/B contains different types of inputs and outputs to
connect field signals. The protection depends on the type of
input/output.
All field signal connectors on the Flow-X/B have connectors with
screw terminals in the contra part of the connector.
 All signals related to one input or output are combined in one
connector.
 Each connector has per pin a short descriptive name at the
side the wires leaving the connector.
 Each connector has the input/output name at the other side
of the connector. This name is also affixed on the contra part
of the connector
 All inputs/outputs have the type and number of the A
connector affixed next to the connector. The input/output
number of the B Connector is between parentheses.
For more elaborate information on the connectors of the Flow-
X/B, see chapter Break-out board connection details on page 21.

Enclosure connector details

Power supply
The Spirit IT Flow-X flow computer provides redundant power
connections that may be connected to two power supplies. The
two power supplies may operate independently and there is no
need for a redundant power supply. When the in-use power
supply fails, the flow computer will automatically switch to the
other power supply without any loss of power.
I T F L O W - X I N S T R U C T I O N M A N U A L | I M / F L O W X - E N
The Flow-X/P and /S flow computers use an 8-pin terminal block
for connecting one or two external 24 Vdc power supplies, while
the Flow-X/R, /C and /K use a 4-pin terminal block. The primary
connection must always be used, the secondary is optional.
The primary power supply must be connected to a (the) '24 Vdc -
Primary' terminal and one of the '0 - Vdc' terminals. The optional
secondary power supply must be connected to a (the) '24 Vdc -
Secondary' terminals and one of the '0 V' terminals.
Figure 6-2: Flow-X/P version 1 & Flow-X/S power terminal block
Pin Description
1 24 V – Primary
2 24 V – Primary
3 24 V – Secondary
4 24 V – Secondary
5 0 V
6 0 V
7 0 V
8 0 V
Table 6-1: Flow-X/P & Flow-X/S power supply connector pin layout
Figure 6-3: Flow-X/R, Flow-X/C, Flow-X/K & Flow-X/P version 2
power terminal block
Pin Description
1 24 V – Primary
2 24 V – Secondary
3 0 V
4 0 V
Table 6-1: Flow-X/R, Flow-X/C & Flow-X/K power supply
connector pin layout
D-sub 37 connectors
These connectors are used with the Flow-X/P (Panel), Flow-X/C,
Flow-X/K and Flow-X/R (Rack) models. The mounted connectors
are female, so a connecting cable must have male connectors.
Figure 6-4: 37-pin D-sub female connector
Indication on Flow-X
+ 1
+ 1
+ 2
+ 2
-
-
-
-
Indication on Flow-X
+ 1
+ 2
-
-
1 9
