Intoximeters Alco-Sensor FST Operator's Manual page 16

Alco‐Sensor FST®
In order to replace the batteries:
1. Remove rubberized grip.
2. Slide battery door open. It is located at the bottom of the Alco‐Sensor FST®.
3. Remove both batteries.
4. Insert two new AA size alkaline batteries, ensuring polarity is correct.
5. Close battery door.
6. Replace rubberized grip.
7. Turn Alco‐Sensor FST® ON to verify proper installation.
NOTE: If the batteries are replaced incorrectly, the device will not power ON. Immediately
remove the batteries. An Alco‐Sensor FST® calibrator will be required to put the device back
into service.

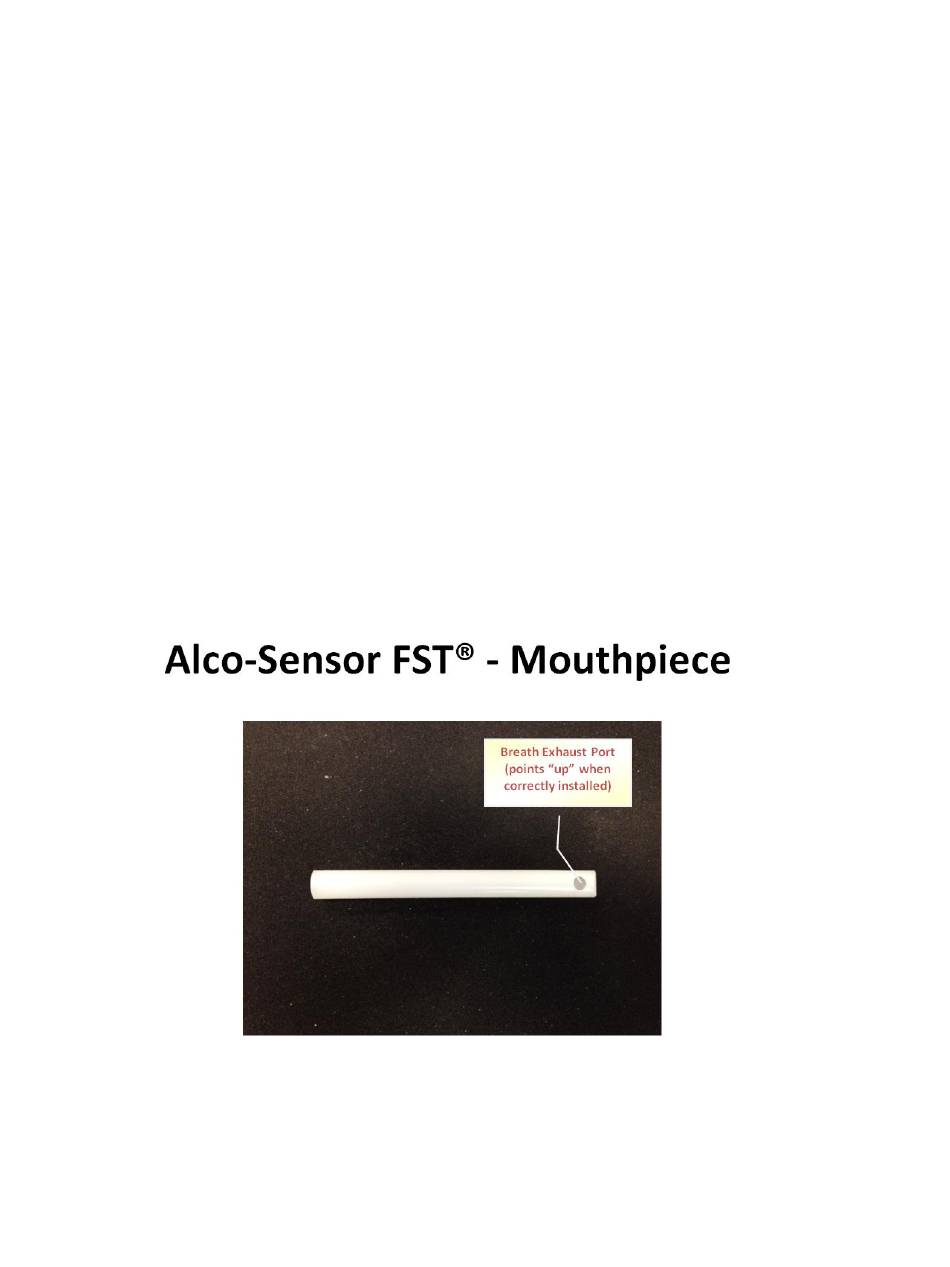

Mouthpiece ‐ The mouthpiece is a critical portion of the sample assembly and specifically
designed to be used with the Alco‐Sensor FST®. Inserting the closed end of the mouthpiece into
the mouthpiece channel, with the flat side of the mouthpiece downward, and pressing down
will place the mouthpiece into position. The two holes on the underside of the mouthpiece will
naturally align and attach to the appropriate ports of the Alco‐Sensor FST®.
