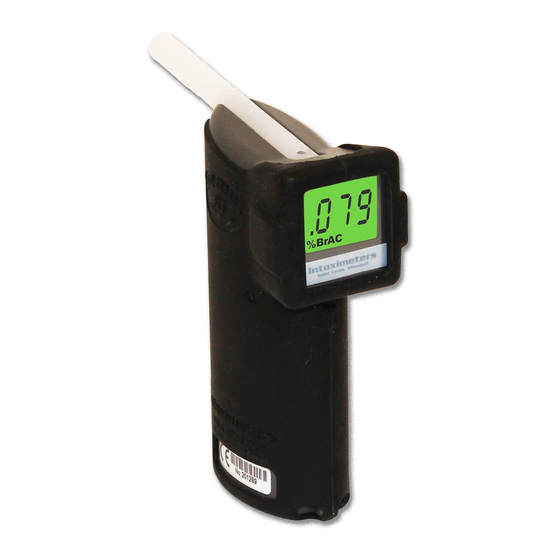

Alco-Sensor FST
Quick Reference Status Messages
E03 Blank Timeout
E06 Exceeded Sample Attempt Allotment
E07 Bad Calibration
E09 Temp Too Cold for Test Type Being
Performed
E10 Temp Too Hot for Test Type Being
Performed
E11 Failed Air Blank (
New Mouthpiece & Begin Test Again)
E12 RFI Detection Error
E21 Invalid Sample
E22 Invalid Calibration Target
entered must be between .015 & .200)
E29 Fuel Cell Out of Range
E30 Pressure Sensor Baseline Out of Range
E31 Result Over Range
Refer to the Operators Manual for any Status
Messages not shown above or Contact Intoximeters.
(314) 429‐4000
Intoximeters Inc.
(> 60 seconds)
(Invalid Sample)
Replace Mouthpiece with
(Target value
Alco-Sensor FST
Basic Operation Checklist
1. Attach Mouthpiece
Insert closed end of mouthpiece into end of channel,
single hole facing up. Lever/push down to lock into
place.
2. Power Instrument ON.
Press the ON button (large button) with trigger/index
finger to power unit ON. Hold down for several
seconds if back lighting is preferred.
3. Battery condition and temperature will display.
4. When 'blo' appears, instruct subject on how to
properly provide a breath sample.
"Take a deep breath, hold it for a moment and blow
steadily into the mouthpiece for as long as you can".
5. Note the subject's result.
6. Remove & discard the mouthpiece.
7. Turn the instrument OFF.
Press the OFF button (small button under display) or
the instrument will auto-power down after fifteen
seconds.
For On Line Certified Training and a printable
Operators Manual go to:
http://training.intox.com/asfst
Intoximeters Inc.
(314) 429‐4000
www.intox.com
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Intoximeters Alco-Sensor FST
Summary of Contents for Intoximeters Alco-Sensor FST
- Page 1 ® Alco-Sensor FST Alco-Sensor FST Basic Operation Checklist Quick Reference Status Messages 1. Attach Mouthpiece E03 Blank Timeout (> 60 seconds) Insert closed end of mouthpiece into end of channel, single hole facing up. Lever/push down to lock into E06 Exceeded Sample Attempt Allotment place. E07 Bad Calibration ...
- Page 2 Alco-Sensor FST Alco-Sensor FST Accessing Menu Options Accessing On-Line Training & Manual Hold down OFF button while pressing ON button to access MENU features. http://training.intox.com/asfst go to: Press ON button to cycle through MENU options (listed below). The following options are available without a login: Press OFF button to select displayed option.
