Ethernet; Nmea 2000; Video In - Simrad R5000 Installation Manual

For wiring details, refer to the System Installation Manual.

Ethernet

The Ethernet ports can be used to connect radar sensors and other radar processing units to
utilise the inter-switching functionality.

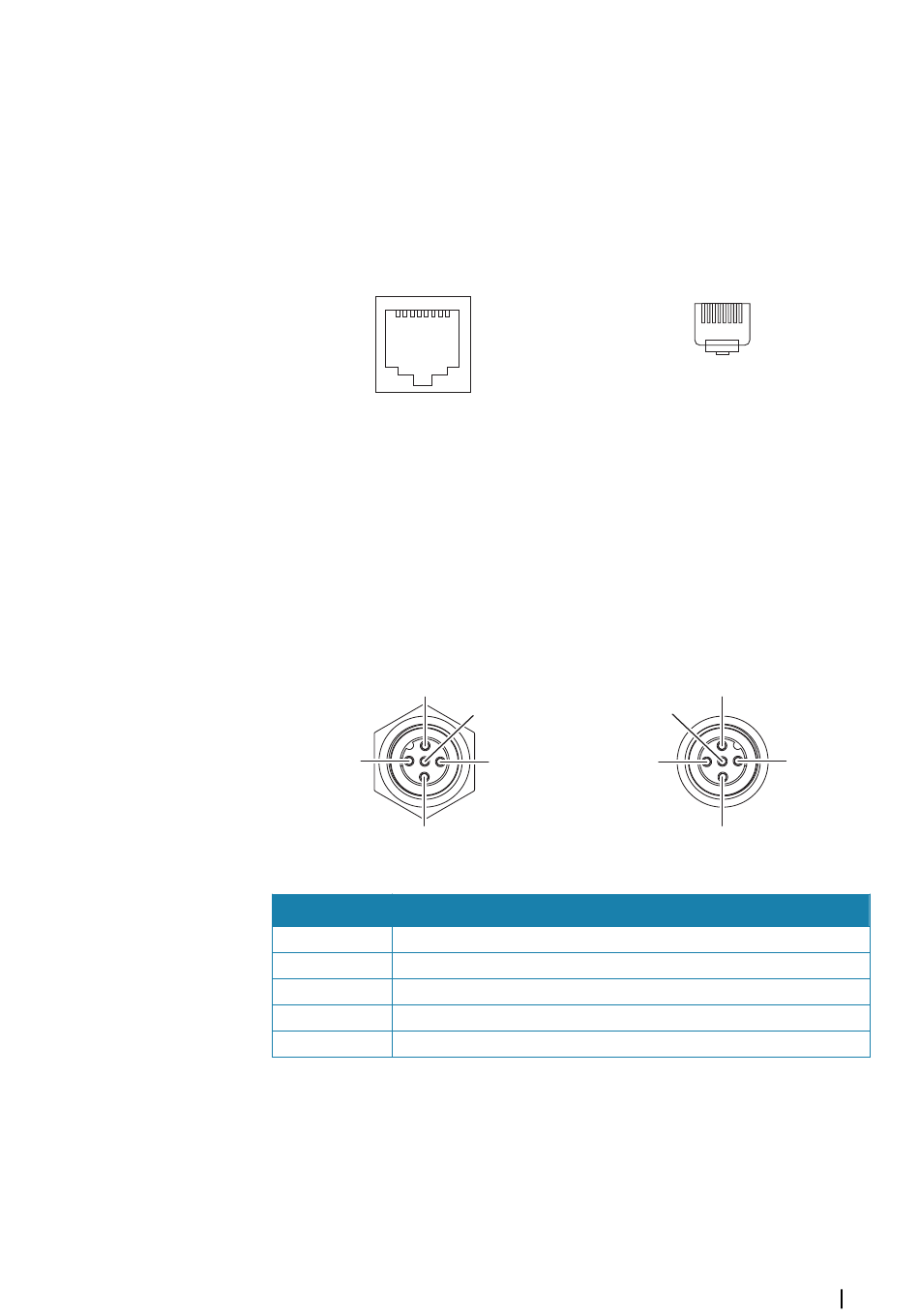

Ethernet connector details
Unit socket (female)
The unit is equipped with standard RJ45 connector(s).
Ethernet expansion device
Connection of network devices can be made via an Ethernet expansion device. Additional
expansion devices can be added to provide the required number of ports.

NMEA 2000

The NEMA 2000 network is used to connect a remote controller to the unit.
NMEA 2000 connector details
1
2
3
Unit socket (male)
Pin Purpose
1
Shield
2
NET-S (+12 V DC)
3
NET-C (DC negative)
4
NET-H
5
NET-L

Video in

Video in is not to be used.
Wiring | R5000 radar processor Installation Manual
5
4
4
Cable plug (male)
1
5
2
3
Cable plug (female)
15
