  • Page 1 NSO evo2 Marine Processor Installation Manual ENGLISH simrad-yachting.com...
  • Page 3 Declarations and conformance This equipment is intended for use in international waters as well as coastal sea areas administered by countries of the E.U. and E.E.A. Compliance Statements The Simrad NSO evo2; • complies with CE under EMC directive 2004/108/EC •...
  • Page 4 • Navionics is a registered trademark of Navionics SpA • Simrad is a trademark of Kongsberg Maritime AS Company registered in the US and other countries and is being used under license • B&G, StructureScan, Navico, SonicHub, SimNet, Skimmer, InsightHD, Broadband Radar...

  • Page 5: Table Of Contents

    Contents NSO evo2 Overview Included Items NSO evo2 Marine Processor Box Hardware Installation Mounting location Marine Processor Installation Controller and monitor installation Wiring Guidelines Power Connection Power Control Connection (yellow wire) External alarm Connecting monitors Connecting control devices NMEA 2000 / SimNet...
  • Page 6 Supported data NMEA 2000 compliant PGN List NMEA 0183 supported sentences Specifi cations Dimensioned drawings Contents | NSO evo2 Installation Manual...

  • Page 7: Nso Evo2 Overview

    NMEA 0183 transmit and receive ports, and a connection point for a NMEA 2000 compliant data bus. Networking capability exists with other NSO evo2 processors, as well as NSS evo2, NSS, NSE, and NSO. Expansion options include: Integration with autopilot computers, external broadband, chirp, and StructureScan echosounders, Broadband 3G/4G, HD Digital, and Halo radar, SonicHub, SiriusXM™...

  • Page 8: Nso Evo2 Marine Processor Box

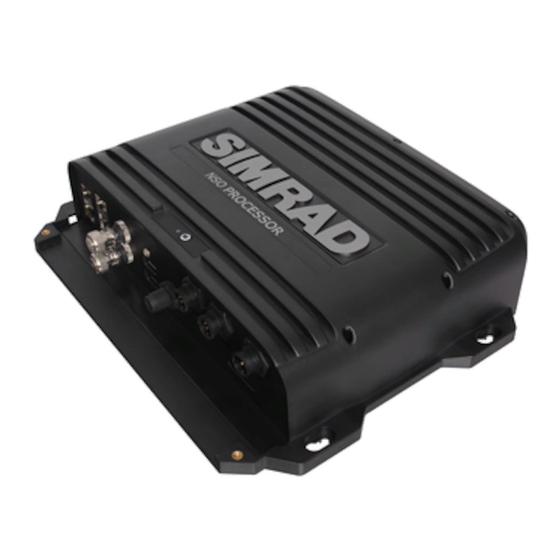

    NSO evo2 Marine Processor Box Ethernet Network ports with PoE (2x) Ethernet Network port (1x) Video Input BNC sockets (2x) NMEA 2000 data port NMEA 0183 & RS422 (2x) Power connector USB ports (2x) HDMI sockets (2x) SD Card slot...

  • Page 9: Hardware Installation

    When drilling in to fi breglass covered in gelcoat, it is recommended to carefully remove the gelcoat layer with a small countersink bit after the hole has been drilled. This will prevent the gelcoat from cracking as the fastener is tightened. = PHILLIPS #2 (PH2) Hardware Installation | NSO evo2 Installation Manual...

  • Page 10: Controller And Monitor Installation

    STBY/AUTO key is required during commissioning. Fixed keypads also off er more accurate control in rough operating conditions. Ensure the controller is conveniently located within easy reach of helm seating or standing position. Hardware Installation | NSO evo2 Installation Manual...

  • Page 11: Wiring

    Power Control Connection (yellow wire) Planning is required how you want to be able to turn on and off the NSO evo2 and connected compatible devices. The yellow Power Control wire on the NSO evo2 power cable can either be an input that will turn on the processor when power is applied, or an output that turns on other devices when the processor is powered on.
  • Page 12 DC supply In the diagram above, if the left NSO evo2 turns on using the power button and is set as the Power Control Master, it will output voltage on the Power Control bus to power on the other...

  • Page 13: External Alarm

    If the right NSO evo2 is set to Power Control Slave, it cannot be powered down using its own power button, but can be set to standby. If the left NSO evo2 (Power Control Master) is off , the right NSO evo2 can be turned on using its own power button, but won’t turn on any other devices.

  • Page 14: Connecting Monitors

    Connecting monitors Up to two displays may be connected to the NSO evo2 via the HDMI ports. Currently supported monitors, are the Simrad DI-15, MO-L 15/17/19, MO16/19/24 (T&P), legacy MO-19, B&G ZM series, and KEPMGB-15T. It is possible to use third party monitors, however these should conform to the supported resolution and refresh rates defi...
  • Page 15 If a USB chart card reader is used, the keyboard and mouse will have to share a single USB port via a passive USB hub. Note: In order to control both monitors connected to the NSO evo2 system, the USB ports must be confi gured to suit. See "USB switching" on page 20. | 13...

  • Page 16: Nmea 2000 / Simnet

    NMEA 2000 / SimNet Device connection The NSO evo2 Marine Processors are equiped with a NMEA 2000 data port, which allows the receiving and sharing of a multitude of data from various sources. Essential network information • The standardised physical cables/connectors for NMEA 2000 are ‘Micro-C’ and ‘Mini-C’, directly derived from the automation industies ‘DeviceNET’...

  • Page 17: Nmea 0183 Device Connection

    Each cable is dedicated to one of the two internal processors. Both the baud rate (up to 38,400 baud) and sentences output by the NSO evo2, can be confi gured. Refer to "NMEA 0183 supported sentences" on page 46 for a complete list of sentences.

  • Page 18: Ethernet Device Connection

    Connecting to more than three devices If connecting more than three devices to an NSO evo2 , a network expansion Port (NEP-2) must be used. If the connected device has its own additional ports, (eg SonarHub) these ports may be used instead.

  • Page 19: Czone Connection To Nmea 2000

    Note camera cables are not supplied, and will need to be selected to suit termination - BNC at the NSO evo2, and typically BNC or RCA plug at the camera end. Note camera power is externally supplied, see camera installation instructions for require- ments.

  • Page 20: Software Setup

    The scrollable left column of icons access most settings that require confi guration; First time startup When the NSO evo2 is started for the fi rst time, or after a factory default, the unit will raise prompts requesting the user to select some fundamental setup options;...

  • Page 21: Time And Date

    Select ‘Display Assignment’ seperately on both displays connected. Note: This feature is dependant on both the NSOevo2 processor and the MO series monitor being connected to a NMEA 2000 network. | 19 Software setup | NSO evo2 Installation Manual...

  • Page 22: Usb Switching

    (This will only include products set to Group mode.) In order to enable group selection, the display must be set to ‘Simrad’ group. 20 | Software setup |...

  • Page 23: Device List

    It is possible to group certain settings so they are duplicated across the network on multiple displays. Display (ie backlighting), Units (ie metric, imperial), Damping (to dynamic data), and Alarms can be grouped either in ‘Simrad’ group, or groups ‘1’ through to ‘6’. If any of the settings require discrete control, set it to ‘none’.

  • Page 24: Damping

    If only one sonar source is present in the network, selection is not required as it should be picked up automatically. However when more than one source exists (eg a BSM-3 or other display with internal sonar), select the desired source in the Echo Settings. 22 | Software setup | NSO evo2 Installation Manual...
  • Page 25 It may be required to correct for localised infl uences to the measured temperature. Calibration range: -9.9° - +9.9°. Default is 0°. | 23 Software setup | NSO evo2 Installation Manual...

  • Page 26: Radar Setup

    4G and Halo support dual radar mode, and therefore are represented twice in the source list, with an A and B suffi x. Radar status Scanner type Identifi es the model of scanner connected to the network. 24 | Software setup | NSO evo2 Installation Manual...
  • Page 27 Note: This procedure must be performed with only one radar on the network, and only ap- plies where a network combines NSS with NSO evo2. Adjust range off set (pulse radar only) The timing of the transmit and receive circuits can be adjusted to determine zero range.

  • Page 28: Video In Confi Guration

    Mirror image may be applied where the camera is providing a rear view, and the user wishes to see objects as they would appear in a vehicle rearview mirror, ie, on the same side as they actually are. 26 | Software setup | NSO evo2 Installation Manual...

  • Page 29: Autopilot Setup

    STBY AUTO button will open an autopilot control dialog. The setup of the autopilot computer can be done in full from compatible Simrad displays or instruments that feature autopilot control, or from an autopilot control unit. The following sections describe how you confi...
  • Page 30 Perform the rudder calibration • Used if you have a rudder feedback unit installed. This calibration is used to ensure that the physical rudder movement corresponds to the rudder angle displayed on the NSO evo2 unit. VRF (Virtual Rudder Feedback) calibration •...
  • Page 31 If the local fi eld is reading more than 30 %, you should look for any interfering magnetic objects and remove them, or you should move the compass to a diff erent location. The (local) fi eld angle will guide you to the local interfering magnetic object. | 29 Software setup | NSO evo2 Installation Manual...
  • Page 32 Transition to HI parameters with decreasing speed: 8kn Transition speed set to 9kn Transition to LO parameters with increasing speed: 10kn Active response parameter set is shown in the autopilot popup, and the following 30 | Software setup | NSO evo2 Installation Manual...
  • Page 33 As a rule ‘Apparent’ wind steering is preferred when you want to maintain maximum boat speed without continuous trimming of the sails. ‘True’ wind steering will keep the boats head- | 31 Software setup | NSO evo2 Installation Manual...
  • Page 34 (seconds) as the boat’s length in feet. On boats operating on VRF the value should be set to 20 seconds. Rate limit Sets the maximum allowed rate of turn. 32 | Software setup | NSO evo2 Installation Manual...

  • Page 35: Fuel Setup

    This parameter defi nes the maximum course change that the autopilot is allowed to make when the NSO evo2 is following a route (NAV steering). If the required course change to the next waypoint in a route is more than the set limit, you are prompted and must acknowledge the course change before the autopilot will turn the vessel.
  • Page 36 ‘Vessel Confi guration’ to allow discrete tank assignment of the Fluid Level devices. Under ‘Device list’ on the Network page, view the ‘Device Confi guration’ page for each sensor, and set Tank location, Fluid type, and Tank size. 34 | Software setup | NSO evo2 Installation Manual...

  • Page 37: Czone Setup

    Marine Ltd, and associated CZone distributors. The NSO evo2 system provides a means to load the Confi g fi le, as well as apply updates to module fi rmware, removing the need to take a laptop computer aboard the vessel.

  • Page 38: Nmea 0183 Setup

    The fi les page may be used to import CZone confi g fi les, or export a copy to a Micro SD card. Importing will overwrite the existing fi le on the NSO evo2 and all connected CZone devices. For further information see "Backing up and Importing user data" on page 42...

  • Page 39: Ethernet Setup

    The upper table gives an account of the various automatically synchronised databases that ensure Simrad display units are all using the same user settings and data. Each unit stores the database locally, so that all information is available if the device is run in standalone.
  • Page 40 The FLIR M-series cameras are plug and play when used in conjuction with the WIFI-1 acting as a DHCP host. For setup on networks not utilizing a DHCP host, refer to the Simrad website www.simrad-yachting.com or contact Simrad technical support.
  • Page 41 Only one WIFI-1 may operate as ‘Primary’ , which determines that the device is acting as DHCP server. Only one DHCP server may exist on a network at a time. | 39 Software setup | NSO evo2 Installation Manual...

  • Page 42: Mercury

    Client mode, the other in Access Point mode. Mercury® If the NSO evo2 is on the same NMEA 2000 network as a Mercury VesselView® 4, 7, 502, 702, or Link, a host of Mercury® specifi c features are automatically unlocked. When the features are enabled, the display may prompt the user for some basic confi...

  • Page 43: Suzuki Marine

    Suzuki Marine® If the NSO evo2 is on the same NMEA 2000 network as a Suzuki C10 color gauge, a dedicated Suzuki instrument panel is unlocked and automatically enabled. Data source selection is done the same way as for any regular NMEA 2000 sources, refer to "Source selection" on page 20.
  • Page 44 The export option off ers diff erent fi le formats to save as: • User data fi le version 5: Use with current Navico displays (NSO evo2, NSS evo2, NSS, NSO, NSE, Zeus², Zeus Touch, Zeus, HDS Gen2, HDS Gen2 Touch, HDS Gen3). Off ers most detail •...

  • Page 45: Accessories

    Ethernet cable yellow 5 Pin 2 m (6.5 ft) 000-0127-29 Ethernet cable yellow 5 Pin 4.5 m (15 ft) 000-0127-30 Ethernet cable yellow 5 Pin 7.7 m (25 ft) 000-0127-37 Ethernet cable yellow 5 Pin 15.2 m (50 ft) | 43 Accessories | NSO evo2 Installation Manual...
  • Page 46 AIS Class B “CS” Static Data Report, Part A 129810 AIS Class B “CS” Static Data Report, Part B 130074 Route and WP Service - WP List - WP Name & Position 130306 Wind Data 130310 Environmental Parameters 44 | Supported data | NSO evo2 Installation Manual...
  • Page 47 SetEngineAndTankConfi guration 130836 Fluid Level Insect Confi guration 130837 Fuel Flow Turbine Confi guration 130839 Pressure Insect Confi guration 130845 Weather and Fish Prediction and Barometric Pressure History 130850 Evinrude Engine Warnings | 45 Supported data | NSO evo2 Installation Manual...
  • Page 48 Receive Transmit Compass Receive Transmit Wind Receive Transmit AIS / DSC Receive AIS sentences are not bridged to or from NMEA 2000. Radar Transmit MARPA Transmit These are only output sentences 46 | Supported data | NSO evo2 Installation Manual...
  • Page 49 4800, 9600, 19200, & 38400 (via proprietary cable) RS422 port baud rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Charting support Embedded low detail backround + Insight, Navionics and CMap on SD card | 47 Specifi cations | NSO evo2 Installation Manual...
  • Page 50 Dimensioned drawings 281 mm (11.05”) 66 mm (2.58”) 265 mm (10.42”) 48 | Dimensioned drawings | NSO evo2 Installation Manual...
