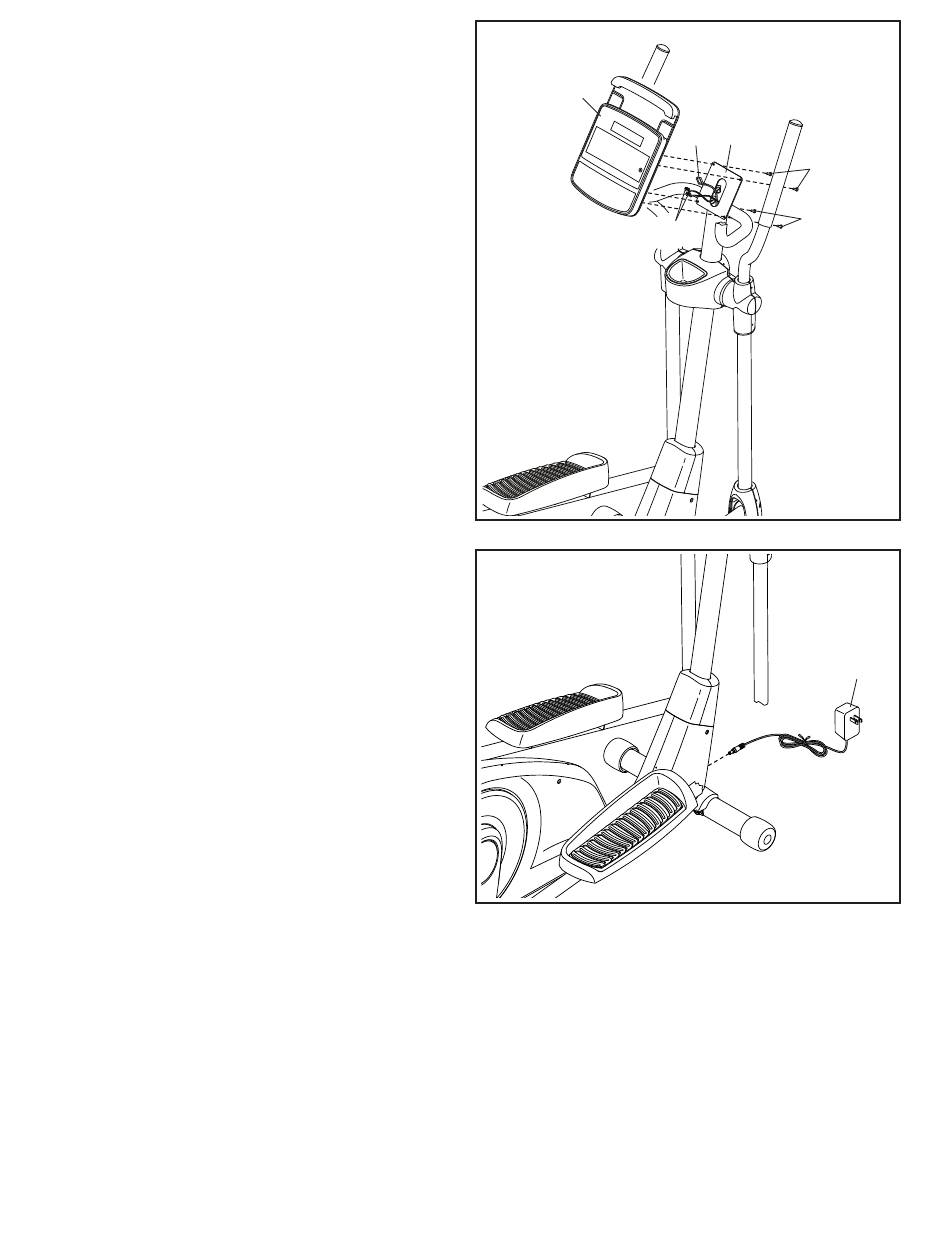

14. Untie and discard the wire tie attached to the
Main Wire (89).
While a second person holds the Console (5)
near the Upright (2), plug the Main Wire (89) and
the Pulse Wires (64, 93) into the receptacles on
the Console.
The connectors on the Main Wire (89) and
the Pulse Wires (64, 93) should slide easily
into the receptacles and snap into place. If a
connector does not slide easily into a receptacle,
turn the connector and try again. If you do not
connect the connectors properly, the Console
(5) may become damaged when you use the
elliptical.
Insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach
the Console (5) to the Upright (2) with four
M4 x 12mm Screws (77); start all the Screws,
and then tighten them.
15. Plug the Power Adapter (90) into the Receptacle
(not shown) on the front of the elliptical.
Then, plug the Power Adapter (90) into an
outlet (see HOW TO PLUG IN THE POWER
ADAPTER on page 14).
16. Make sure that all parts are properly tightened. Place a mat beneath the elliptical to protect the floor. Extra
parts may be included.
