Pro-Form 485E User Manual page 12

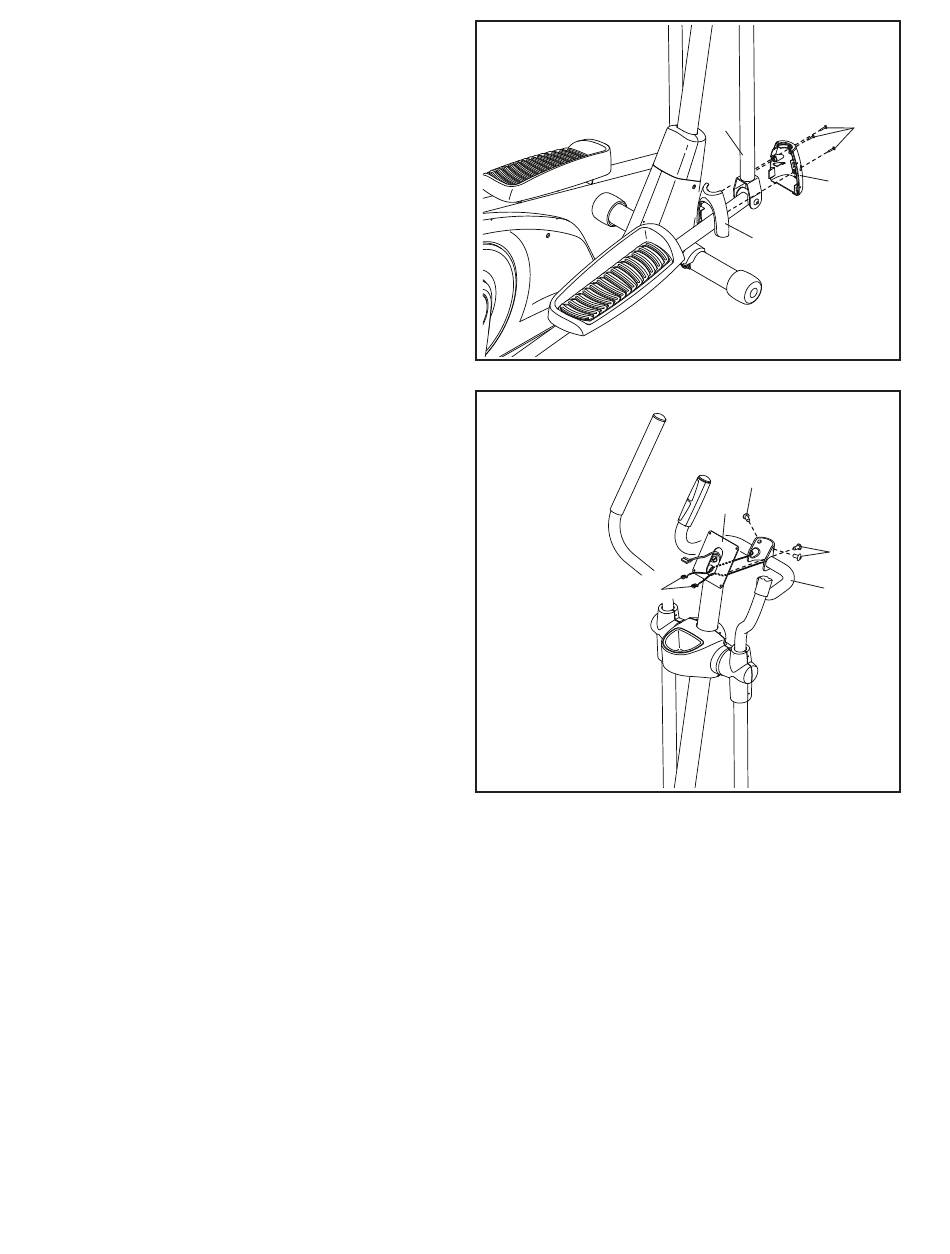

12. Identify a Rear Leg Cover (38) and a Front Leg
Cover (39), and orient them as shown.
Press the Rear and Front Leg Covers (38, 39)
together around the Right Upper Body Arm (10),
and attach them with three M4 x 16mm Screws
(78); start the center Screw first, and then
start the other two Screws. Then, tighten all
the Screws.
Repeat this step on the other side of the
elliptical.
13. Have a second person hold the Handlebar (22)
in place around the Upright (2).
Next, locate the Pulse Wires (64, 93) inside
the left and right sides of the Handlebar (22),
and carefully pull them out of the Upright (2) as
shown.
Tip: Avoid pinching the Pulse Wires (64, 93).
Attach the Handlebar (22) to the Upright (2) with
three M10 x 20mm Screws (79); start all the
Screws, and then tighten them.
12
13
64, 93
Avoid pinching
the Pulse Wires
(64, 93)
12
10
78
39
38
79
2
79
22
