Right Trigger
1
1.

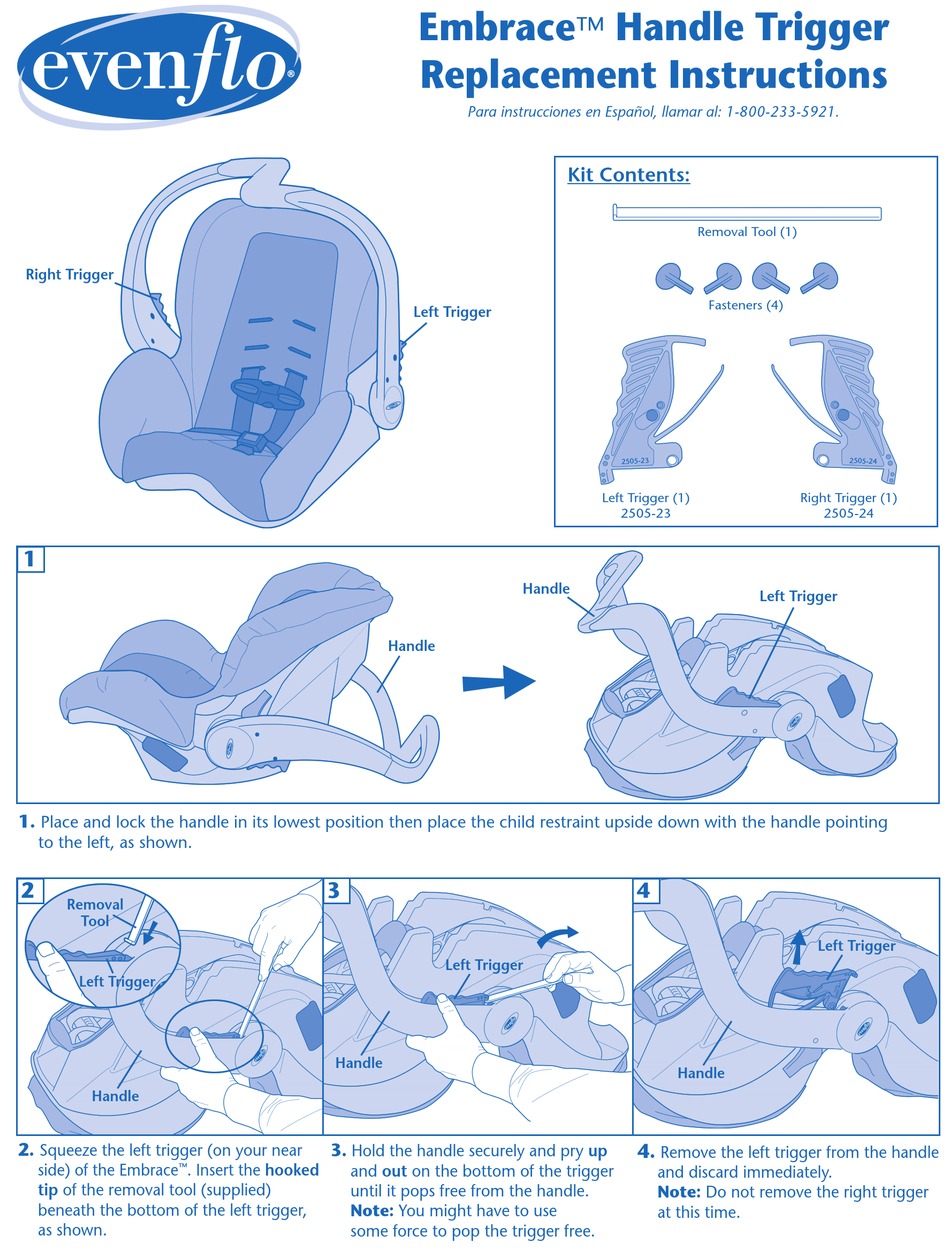

Place and lock the handle in its lowest position then place the child restraint upside down with the handle pointing
to the left, as shown.
2
Removal
Tool
Left Trigger
Handle
2.
Squeeze the left trigger (on your near
. Insert the hooked
side) of the Embrace
™
Tip of the removal tool (supplied)
beneath the bottom of the left trigger,
as shown.
Embrace
Replacement Instructions
Para instrucciones en Español, llamar al: 1-800-233-5921.
Left Trigger
Handle
3
Left Trigger
Handle
3.
Hold the handle securely and pry up
and out on the bottom of the trigger
until it pops free from the handle.
Note: You might have to use
some force to pop the trigger free.
Handle Trigger
™
Kit Contents:
Removal Tool (1)
Removal Tool (1)
Left Trigger (1)
Left Trigger (1)
2505-23
Left Trigger (1)
2505-23
2505-23
Handle
4
Handle
4.
Remove the left trigger from the handle
and discard immediately.
Note: Do not remove the right trigger
at this time.
Removal Tool (1)
Fasteners (4)
Fasteners
(4)
Fasteners
(4)
Right Trigger (1)
Right Trigger (1)
2505-24
Right Trigger (1)
2505-24
2505-24
Left Trigger
Left Trigger
