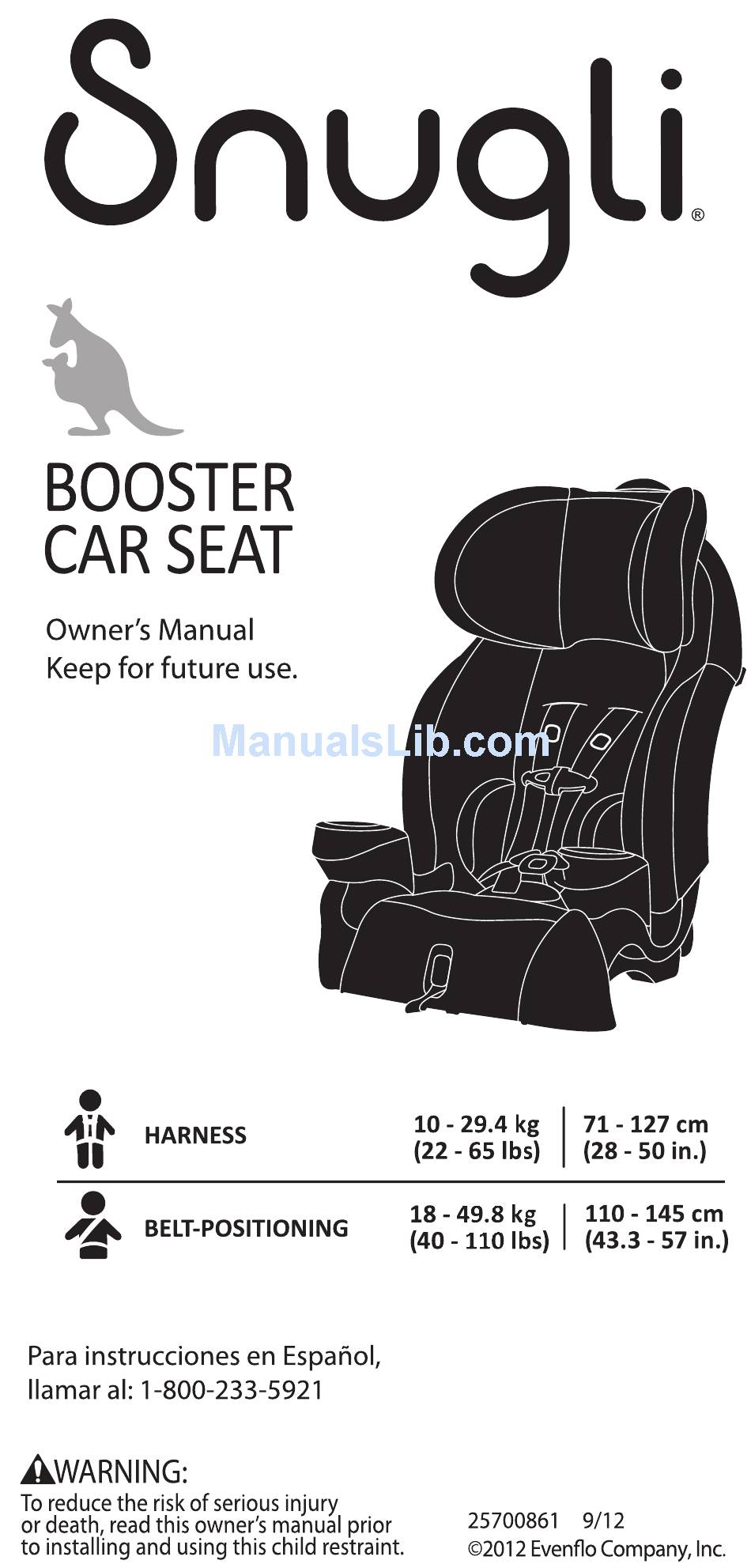

Evenflo Snugli Owner's Manual

Booster car seat
Hide thumbs Also See for Snugli:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Evenflo Snugli

Summary of Contents for Evenflo Snugli

  • Page 2 More children are killed every year as passengers in car crashes than by any other type of injury. To reduce the risk of SERIOUS INJURY or DEATH, read this owner’s manual and your vehicle owner’s manual before installing and using this child restraint. Using a child restraint makes a big difference.

  • Page 3: Table Of Contents

    Table of Contents Important Information Warnings ..............2 Safe Practices ............7 Recall Information for U.S Customers ......8 Public Notice for Canadian Customers ..... 8 Motor Vehicle/Aircraft Usage ........8 LATCH Information ..........9 Care and Cleaning ........... 9 Visual Glossary ............

  • Page 4: Warnings

    WARNING Air Bag Warnings • DO NOT use this restraint in the front seat of a vehicle equipped with an air bag. Air bags may cause serious injury or death to children 12 years of age and under. If your vehicle has an air bag, refer to your vehicle owner’s manual for child restraint installation.

  • Page 5: General Warnings

    If the child restraint cannot be properly installed, DO NOT use the child restraint. Consult vehicle owner’s manual, try a different seating location or call Evenflo. • ONLY use this child restraint on forward-facing vehicle seats.
  • Page 6 WARNING Forward-facing Position Warnings • If the child weighs more than 29.4 kg (65 lbs) or their shoulders are above the highest harness level, you MUST use this child restraint as a booster (p. 34). • Adjust, or remove, the vehicle headrest, in the seat where the child restraint is to be fastened, so that the back of the child restraint rests against the vehicle seat back.
  • Page 7 WARNING Seat Belt Warnings For Booster Use Only • When using this booster seat, NEVER use a lap belt only. MUST use vehicle seat belts that have a lap/shoulder combination. • DO NOT use the locking clip when using this child restraint as a booster seat.
  • Page 8 (such as coffee or tea) in the cup holder. • DO NOT attach additional items to this child restraint that are not approved by Evenflo. Items not tested with the child restraint could injure the child.

  • Page 9: Safe Practices

    WARNING • Failure to follow installation instructions could result in serious injury or death. These instructions and the instructions in your vehicle owner’s manual must be followed carefully. If there is a conflict between the two, the vehicle owner’s manual regarding child restraint installation must be followed.

  • Page 10: Recall Information For U.s Customers

    • Child restraints could be recalled for safety reasons. You must register this restraint to be reached in a recall. Send your name, address, the restraint’s model number, and manufacturing date to Evenflo Company, Inc., 1801 Commerce Dr., Piqua, OH 45356 or call 1-800-233-5921. You may also register online at: www.evenflo.com/registercarseat...

  • Page 11: Latch Information

    LATCH Information “LATCH” (Lower Anchors and Tethers for CHildren) is a system for attaching the child restraint to your vehicle seat. It can be used in place of the seat belts in vehicles with LATCH anchors. Refer to your vehicle owner’s manual for the locations of LATCH anchors.

  • Page 12: Visual Glossary

    Visual Glossary Your vehicle components may be significantly different than pictured. Consult your owner’s manual to help you identify your vehicle components. Rear Fold-down Armrest Consult your vehicle’s Headrests owners manual. Tether Anchors Forward-facing Back Seat ONLY Belt Buckles Center Lap Belt Back Seat Belt Retractor...
  • Page 13 Visual Glossary Front Seat Lap and Shoulder Belts Front Headrests NO coloque el asiento infantil orientado hacia atrás en el asiento delantero con bolsa de aire. Puede causar MUERTE o LESIONES GRAVES. El asiento trasero es el lugar más seguro para los niños de 12 años de edad y mporTanT mporTanT Consult your vehicle...

  • Page 14: Using The Internal 5-Pt Harness

    Age: At least one year old IMPORTANT Evenflo strongly recommends using the top anchorage (tether) strap when using this seat with the internal harness. Using the tether strap will improve the stability of the child restraint and may reduce the risk of injury.

  • Page 15: Installation Checklist

    Installation Checklist 1. Secure child restraint to the vehicle seat. Locking clip is installed, if necessary (p. 44). If the child weighs 21.7 kg (48 lbs) or LESS, the child restraint is securely installed with one of the following methods through the upper belt path: •...

  • Page 16: Which Type Of Latch Connectors Are On Your Child Restraint

    Which Type of LATCH Connectors Are on Your Child Restraint? In order to properly install your child restraint with the LATCH system, you must first know which type of LATCH connectors are present on your child restraint. • If your child restraint has LATCH Hook Connectors, begin installation by referring to “Installation with LATCH Hook Connectors,”...
  • Page 17 Installation with LATCH Hook Connectors Tether Strap 2. Place the child restraint in position. Set child restraint on vehicle seat in forward-facing position, as shown. Lay the tether strap over the back of the vehicle seat. Near Side Far side LATCH LATCH Lower Anchor...
  • Page 18 Installation with LATCH Hook Connectors 4. Secure the child restraint. LATCH Belt Path Using your full weight, push the child restraint firmly into the vehicle seat while pulling up on the LATCH strap to tighten. IMPORTANT: To properly protect the child, the child restraint MUST NOT move more than 25 mm (1 inch) from side-to-side or from front-to-back at the LATCH belt path.

  • Page 19: Installation With Surelatch Connectors

    Installation with SureLatch Connectors IMPORTANT: • If you are using the vehicle seat belt to secure the child restraint, DO NOT use the LATCH system. • Install this child restraint with the vehicle seat belt (NOT LATCH connectors) if the child weighs more than 21.7 kg (48 lbs).
  • Page 20 Installation with SureLatch Connectors Near Side Far Side Upper Upper Belt Path Belt Path LATCH Anchor LATCH Anchor 3. Attach SureLatch Connectors. With the SureLatch harness through the upper belt path, as shown above, push each SureLatch connector onto each seat anchor. Note: You may need to vary the angle of the SureLatch connectors, as shown above, to attach to the anchor.
  • Page 21 Installation with SureLatch Connectors 4. Secure the child restraint. Using your full weight, push the child restraint Upper firmly into the vehicle Belt Path seat, as shown, to set it in place. IMPORTANT: To properly secure this child restraint, it MUST NOT move more than 25 mm (1 inch) from side- to-side or from front-to-back at the upper belt path.

  • Page 22: Tether Strap

    Installation with SureLatch Connectors 5. Connect and tighten tether strap. Connect the tether hook to the anchor behind the vehicle seat, as shown. Pull the strap and tighten the tether securely. IMPORTANT: If your tether strap is too short to reach from your child restraint to your vehicle tether anchor, you will need a Tether Extender.

  • Page 23: Installation With Quick Connectors

    Installation with Quick Connectors IMPORTANT: • If you are using the vehicle seat belt to secure the child restraint, DO NOT use the Quick Connectors. • Install this child restraint with the vehicle seat belt (NOT LATCH connectors) if the child weighs more than 21.7 kg (48 lbs).
  • Page 24 Installation with Quick Connectors Near Side Far side Upper Upper Belt Path Belt Path LATCH Anchor LATCH Anchor 3. Attach Quick Connectors. With the Quick Connector harness through the upper belt path, as shown above, push a Quick Connector onto each seat anchor. Note: You may need to vary the angle of the Quick Connectors, as shown above, to attach to the anchor.
  • Page 25 Installation with Quick Connectors 5. Connect and tighten tether strap. Connect the tether hook to the anchor behind the vehicle seat, as shown. Pull the strap and tighten the tether securely. IMPORTANT: If your tether strap is too short to reach from your child restraint to your vehicle tether anchor, you will need a Tether Extender.

  • Page 26: Installation With Vehicle Seat Belt

    Installation with Vehicle Seat Belt IMPORTANT: • If the child weighs more than 21.7 kg (48 lbs), install this child restraint with the vehicle seat belt (NOT LATCH connectors). • Before installing this child restraint with the vehicle seat belt, you MUST make sure the SureLatch or Quick Connectors are attached to the storage D-rings on the seat pad.

  • Page 27: Installing The Locking Clip

    Installation with Vehicle Seat Belt 4. Buckle seat belt. 5. Remove all slack from the seat belt. Push downward on child restraint while tightening seat belt to remove excess slack. 6. Install locking clip, if necessary. You MUST use a locking clip if your vehicle has: Locking Clip installed properly...
  • Page 28 Installation with Vehicle Seat Belt 7. Ensure child restraint is secure. Hold the child restraint near the upper belt path, as shown, and try to move it in all directions. Upper Belt Path IMPORTANT: To properly secure this child restraint, it MUST NOT move more than 25 mm (1 inch) from side-to- side or from front-to-back at the upper belt path.

  • Page 29: Securing The Child

    Securing the Child 1. Loosen harness. Press the harness release button on the front of the seat while pulling the harness straps. 2. Position harness straps. Unfasten chest clip and place the child in the child restraint. Bring each harness strap over the child’s shoulders.

  • Page 30: Chest Clip

    Securing the Child 4. Fasten and adjust chest clip. Snap the two halves of the chest clip together, as shown, and slide to armpit level. 5. Tighten harness. Pull the harness adjuster strap to tighten the harness. Note: Make sure the harness straps are snug against the child with no more than two finger-widths between the child and straps.

  • Page 31: Removing The Child

    Removing the Child 1. Loosen harness straps. Press the harness release button on the front of the seat while pulling the harness strap outward behind the fastened chest clip. 2. Disconnect chest clip. Push the release button and pull the chest clip apart.

  • Page 32: Positioning The Harness Strap

    Positioning the Harness Strap 1. Loosen harness straps. Press the harness release button on the front of the seat while pulling the harness straps. 2. Remove both harness straps from the splitter plate.
  • Page 33 Positioning the Harness Strap 3. Move harness strap. Remove both harness straps from the slots and feed them into the new slot, as shown. Pull the harness strap to the back of the child restraint. Note: Straps must be positioned at the child’s shoulder level or slightly above.

  • Page 34: Positioning The Crotch Strap

    Positioning the Crotch Strap As your child grows, you will need to change the crotch strap position so that it is in the slot closest to your child. The crotch strap should ALWAYS be as close as possible to, but NEVER under, the child’s bottom. IMPORTANT: You MUST place the crotch strap in the front slot if your child weighs 18 kg (40 lbs) or more.
  • Page 35 This page is intentionally blank.

  • Page 36: Using A Booster Seat

    When to Put Your Child in a Booster Seat Booster seats raise the child up and help to position the vehicle lap and shoulder belt correctly. When the child is properly restrained in a booster seat, their risk of injury in all types of crashes is reduced, as the lap and shoulder belt provides excellent restraint of both the upper and lower torso.
  • Page 37 How can you tell if your child is ready to transition to a booster seat? You should consider using a booster seat if the following conditions apply: • The child is mature enough to sit in the booster seat and not put the belts under their arm or behind their back.
  • Page 38 Using as a Booster Seat Child Requirements Weight: 18 – 49.8 kg (40 – 110 lbs) Height: 110 – 145 cm (43.3 – 57 in.) tall AND the tops of the child’s ears are at, or below, the child restraint headrest. Age: At least four years old The shoulder belt MUST pass through shoulder...

  • Page 39: Booster Installation Checklist

    Booster Installation Checklist 1. Convert child restraint to booster seat. See “Converting into a Booster Seat,” p. 38. 2. Secure booster seat to the vehicle seat. Make sure the bottom and back of the booster seat are touching vehicle seat and back. Level the booster seat (Canadian models only), p.

  • Page 40: Converting Into A Booster Seat

    Converting into a Booster Seat 1. Loosen harness. Press the harness release button while pulling outward on the harness straps, as shown. Disconnect the chest clip. 2. Remove both harness straps from the splitter plate and pull them through to the front of the seat.
  • Page 41 Converting into a Booster Seat 4. Route the harness straps through adjustment slots, then attach to splitter plate. 5. Tuck the chest clip and buckle tongues into the recesses on either side of the seat shell.
  • Page 42 Converting into a Booster Seat 6. Remove the crotch strap. Locate the crotch strap anchor on the bottom. Turn the anchor sideways and push it through the seat shell to remove, as shown. Insert the crotch strap anchor back into the opening from the bottom of the child restraint.
  • Page 43 Converting into a Booster Seat 7. Install the seat pad. Your child restraint is now in Booster Mode and ready for a child who weighs 18 – 49.8 kg (40 – 110 lbs), is 110 – 145 cm (43.3 – 57 in.) tall, is at least four years old, and whose ears are below the top of the child restraint headrest.

  • Page 44: General Information

    General Information Leveling the Booster Seat Canadian Models Only Level Line If the level line is not parallel to the vehicle floor, before fastening child to the vehicle seat, place a tightly rolled Towel/Small Blanket towel/small blanket beneath the bottom rear of the booster seat, as shown.

  • Page 45: Adjusting The Headrest

    Adjusting the Headrest Lock Release Button To adjust, press the lock release button, as shown, while sliding the headrest up or down to the desired position. IMPORTANT: When the headrest is in one of the four locking positions, the locking button will pop into its original position.

  • Page 46: Installing The Locking Clip

    Installing the Locking Clip To view a video about installing a locking clip, go to www.evenflo.com. Use the locking clip with: • Lap/shoulder seat belt combinations that have a buckle tongue that slides freely along the belt without locking into place;...
  • Page 47 Installing the Locking Clip Hold the lap/shoulder belts together just behind the free sliding buckle tongue while you unfasten the seat belt. While holding the belts and buckle tongue, thread the locking clip onto the seat belt and slide it into place. Note: Locking clip must 13 mm be placed within 13 mm...

  • Page 48: Removing Seat Pad

    Removing Seat Pad J-clips Retaining Strips (on some models) Disconnect the harness straps from the splitter plate. Disconnect all J-clips and all retaining strips. Remove the seat pad. Removing Headrest Pad J-clips Disconnect all J-clips and remove the headrest pad.

  • Page 49: Replacement Parts

    Replacement Parts Not available on all models. You can order replacement parts online at www.evenflo.com or contact Evenflo. When you contact us, please have the product model number and date of manufacture (found on the back of the child restraint).
  • Page 50 Proper Disposal of This Child Restraint At the end of this child restraint’s useful life, Evenflo encourages you to dispose of it properly. Most of the components in this child restraint are recyclable. 1. Remove all fabric and padding. 2. Remove all screws and disassemble the restraint.

  • Page 51: Limited Warranty

    Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and deter- mined to be covered by this warranty.
  • Page 52 Store these instructions in the slots on either side of the child restraint. • www.evenflo.com • USA: 1-800-374-3603, 8 AM to 5 PM E.T. • Canada: 1-937-773-3971 • México: 01-800-706-12-00...
