Job-specific documentation

General

The sequence of screens shown on the "clothesline" depends on the type of job selected.
Purpose of the "Job-specific doc." is for documenting the current welding values of a selected job.
"Job-specific "Job-specific doc." can be set individually for each job.
doc." function
Requirement for The "Job documentation" parameter in the "Basic settings" screen of the "Documentation"
"Job-specific menu item must be set as follows:
doc." -
Establishing job-
1
specific docu-
2
mentation
3
4
5
6
Optimizing and managing jobs: "Job-specific doc."
screen
Parameter "Job documentation" ..... Job-specific
Call up the "Optimizing & managing jobs" menu item
Whatever screen is showing, select "Group n°" parameter using the down (6) or up (7)
keys
Select desired group (0 - 99) using the adjusting dial (18)
Select "Job n°" parameter using the down (6) or up (7) keys
Select desired job (0 - 999) using the adjusting dial (18)
– If a job is selected from the next group, the group displayed also changes accord-
ingly.

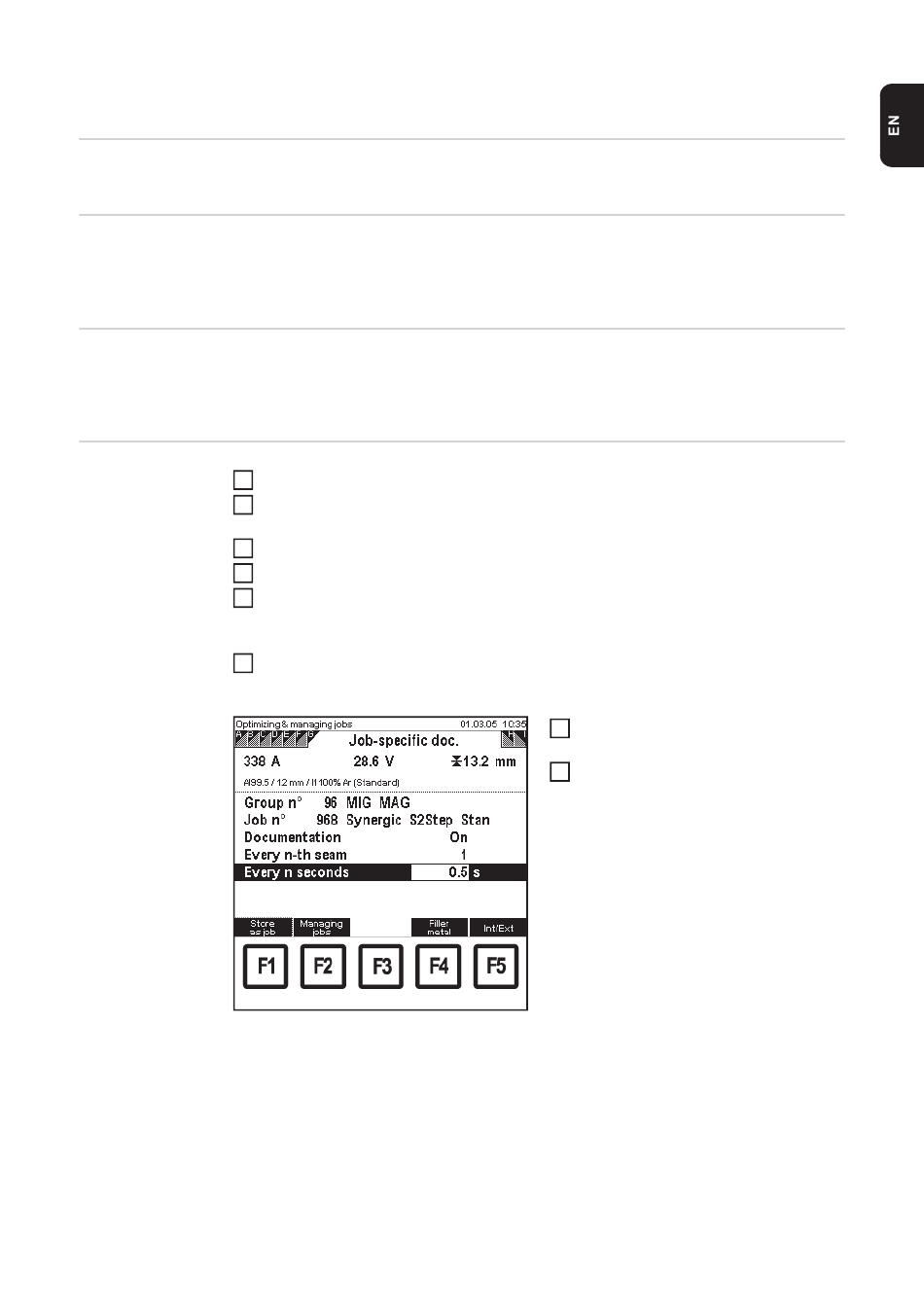

Select "Job-specific doc." screen by pressing the right arrow key (8)
– "Job-specific doc." screen appears
Select the corresponding parameters
7
using down (6) or up (7) keys
Use the adjusting dial (18) to alter the
8
parameter value
– A parameter value can only be al-
tered within the defined setting
range. The setting range is high-
lighted.
