Welding data which is evaluated directly can also be stored on the memory card.
Call up the "Docu-
mentation" menu
item

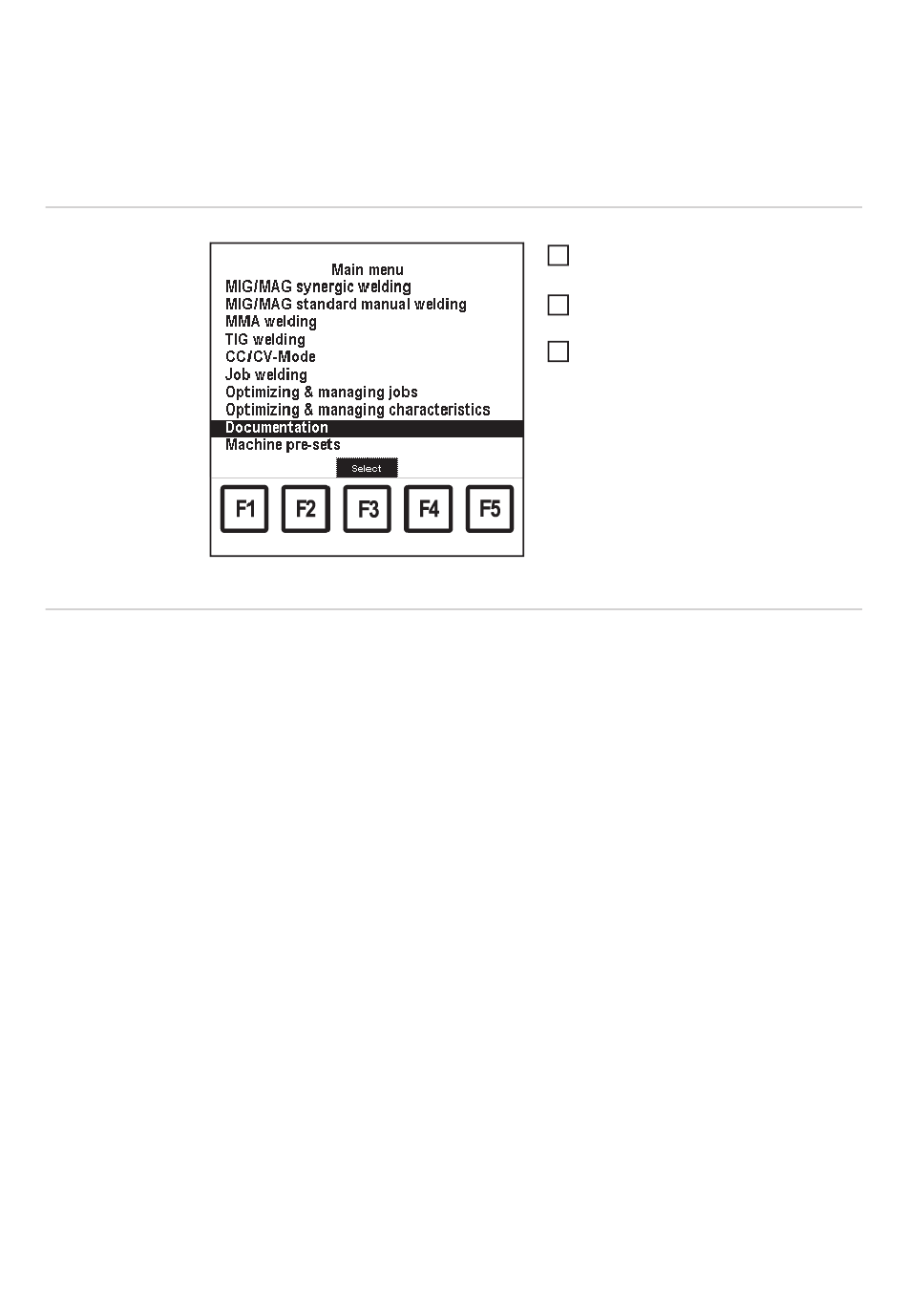

Main menu: "Documentation" menu item selected

Overview

"Documentation" is composed of the following sections:
-
-
-
-
-
-
-
140
RCU 5000i remote control
If there is no LocalNet connection
free on the power source: LocalNet
passive distributor
Establishing basic settings for the documentation
Establishing QMaster values
Setting maximum motor current
Part number counter
Welding log
Event log
Removing a memory card
- RCU 5000i remote control
- If there is no LocalNet connection
free on the power source: LocalNet
passive distributor
Press the "Menu" button (1)
1
– Main menu appears
Select "Documentation" menu item
2
using the adjusting dial (18)
Press OK (3):
3
– The last "Data" screen called up
appears.
