Setting process settings parameters

Setting process
settings parame-
ters

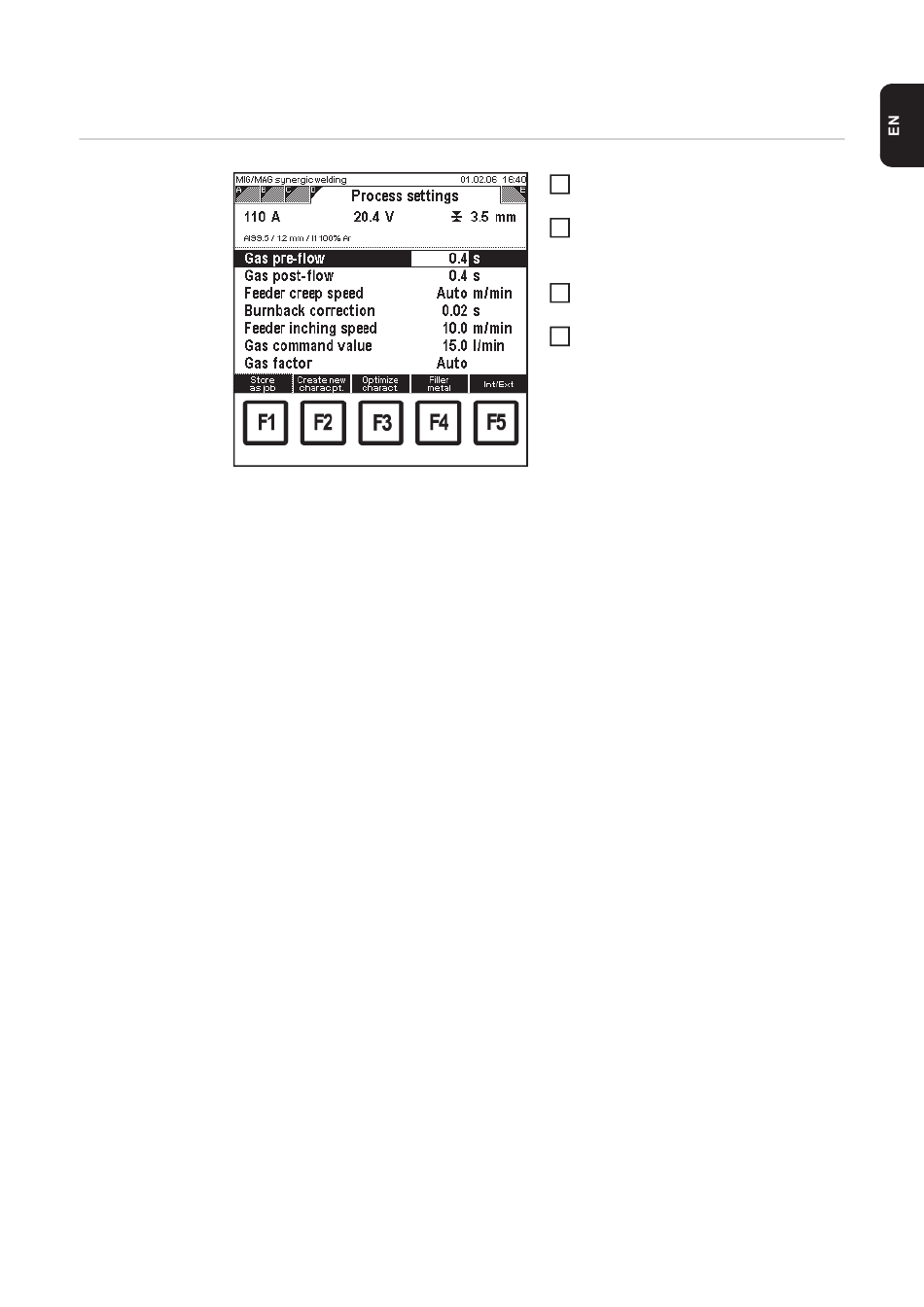

MIG/MAG synergic welding: "Process settings"
screen, gas pre-flow selected
Call up "MIG/MAG synergic welding"
1
menu item
Select "Process settings" screen by
2
pressing the right arrow key (8).
– "Process settings" screen appears
Select the process settings parameters
3
using the down (6) or up (7) keys
Change the value of the process set-
4
tings parameters using the adjusting
dial (18)
– The value of the process settings
parameters can only be altered wi-
thin the defined setting range. The
setting range is highlighted.
41
